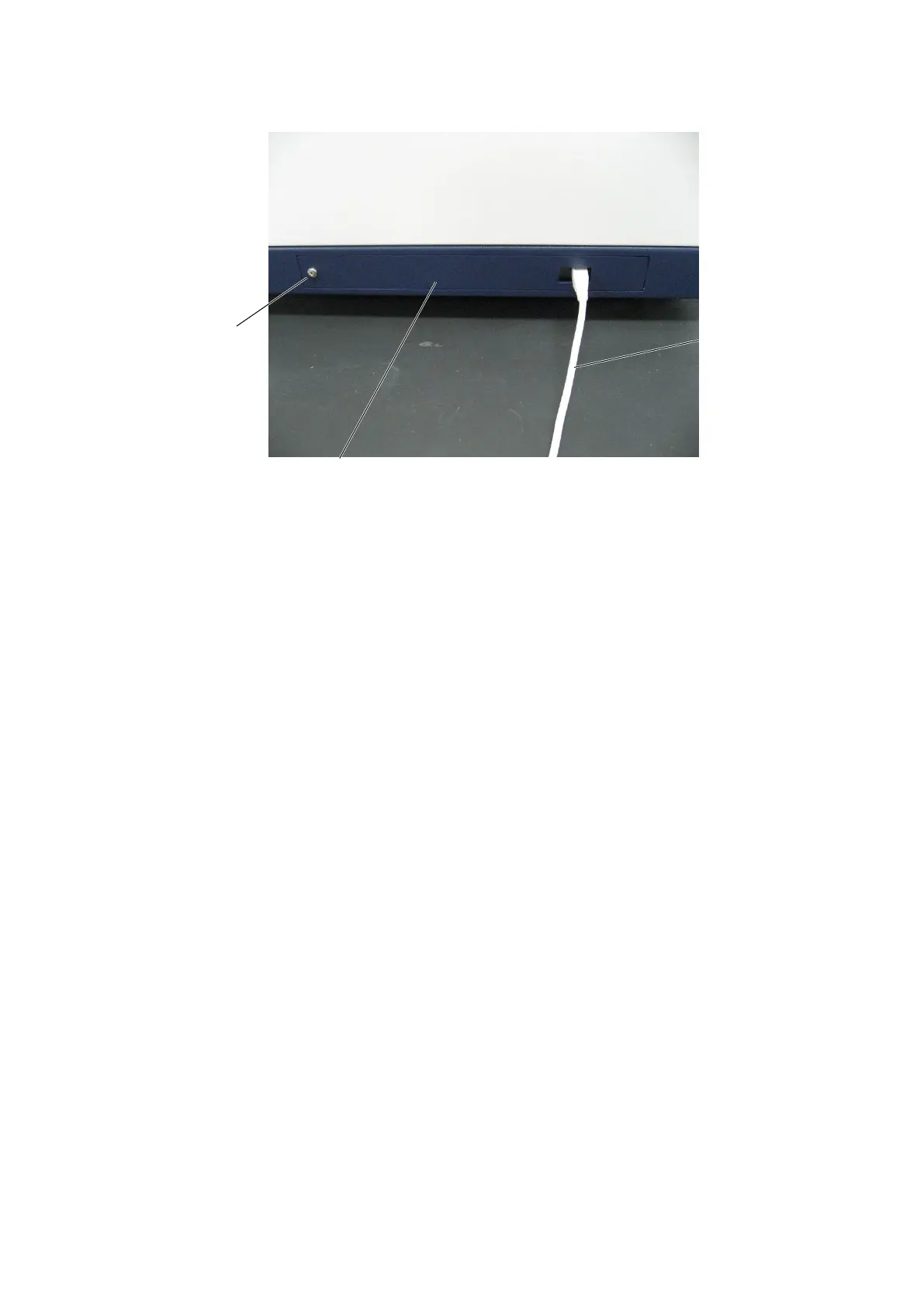

Fig. 2-5 Right Side of Spectrophotometer
External signal terminal cover
Remove this cover and you can see various electrical signal connectors. External devices can be
connected here for use. The cover is retained by one screw; remove the screw and cover for using the
terminals.
USB cable
Used for communication with the PC. Use the dedicated USB cable of 1.5 m with ferrite core (P/N
5J1-2334) supplied with the instrument.
External signal
terminal cover
