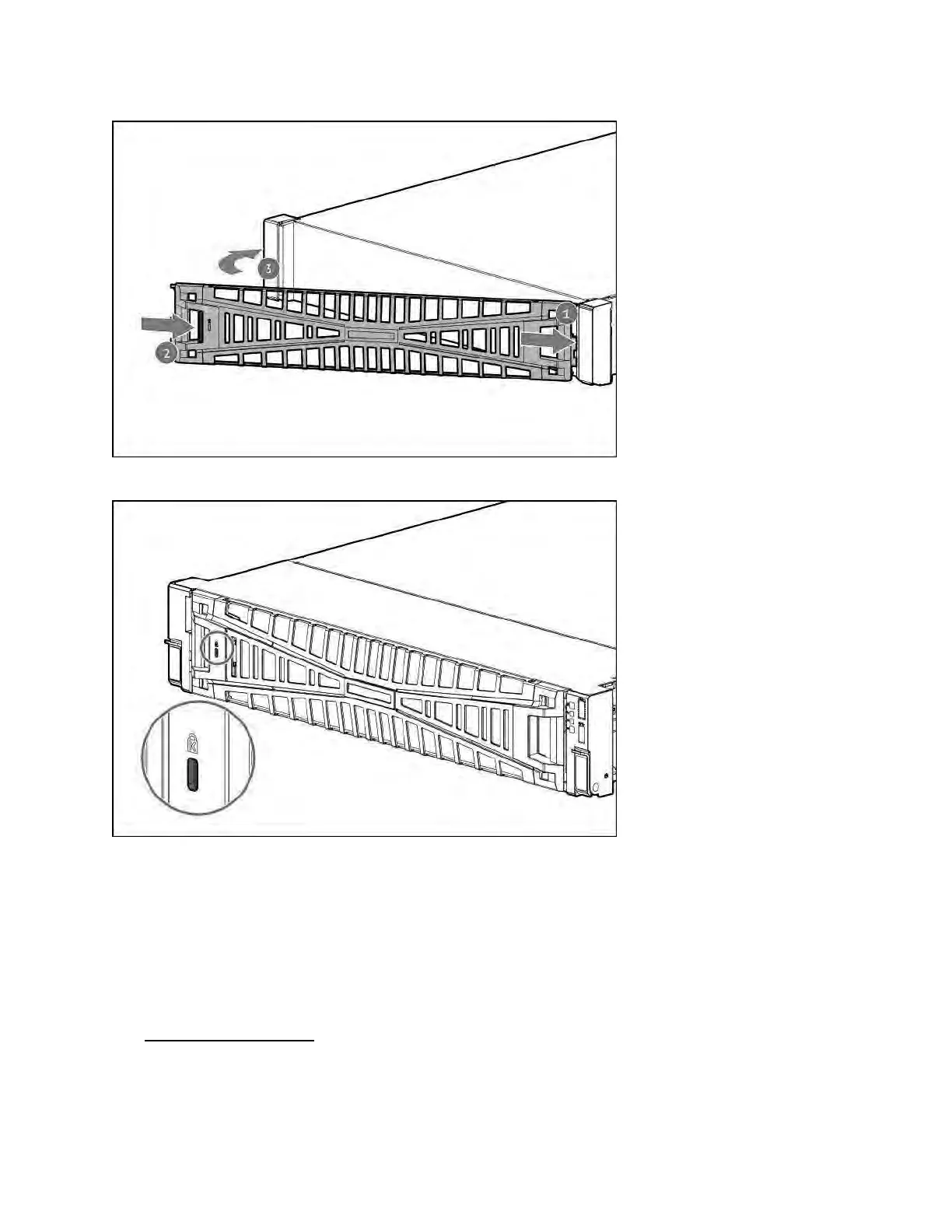

Installing the bezel

Install the front bezel.

(Optional) Install the bezel lock.

Installing the chassis intrusion detection switch

Prerequisites

Before you perform this procedure, make sure that you have the components included with the hardware

option kit.

Procedure

1. Power down the server.

2. Remove all power:
