Accessing the Systems Insight Display 45

Accessing the Systems Insight Display

About this task

The Systems Insight Display is only supported on SFF models.

Procedure

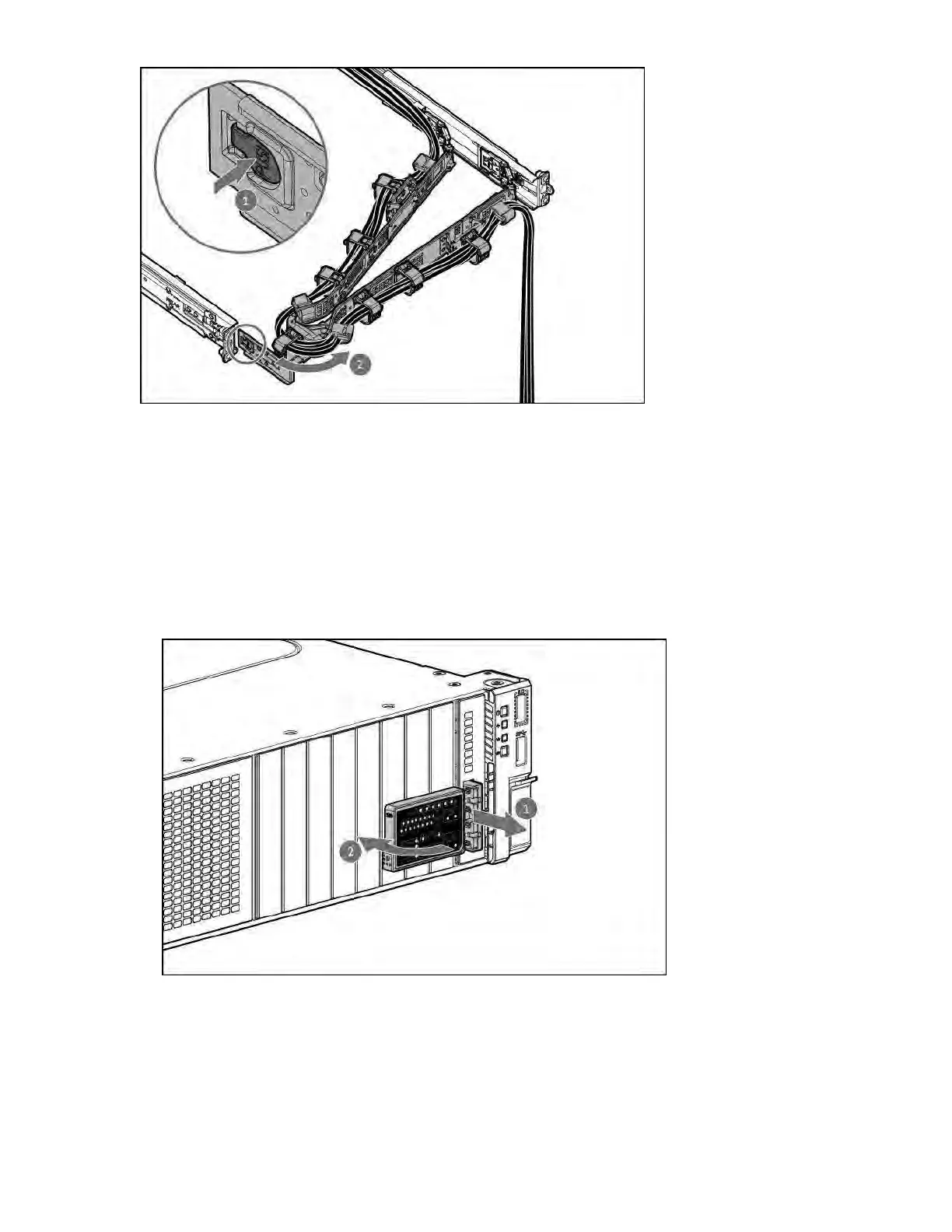

1. Press and release the panel.

2. After the display fully ejects, rotate the display to view the LEDs.
