Hitachi HA820 G3 Series - Rear Panel LEDs

Rear panel components
16
Item Description
1 Primary riser slots 1–3 (optional drive cage)
2 Secondary riser slots 4–6 (optional drive cage)
3 Tertiary riser slots 7–8 (optional drive cage)
4 Power supply 1 (PS1)
5 Power supply 2 (PS2)
6 Video port (VGA)
7 OCP slot 15
8 Serial port (optional)
9 iLO Management Port
10 USB 3.2 Gen 1 ports
11 OCP slot 14

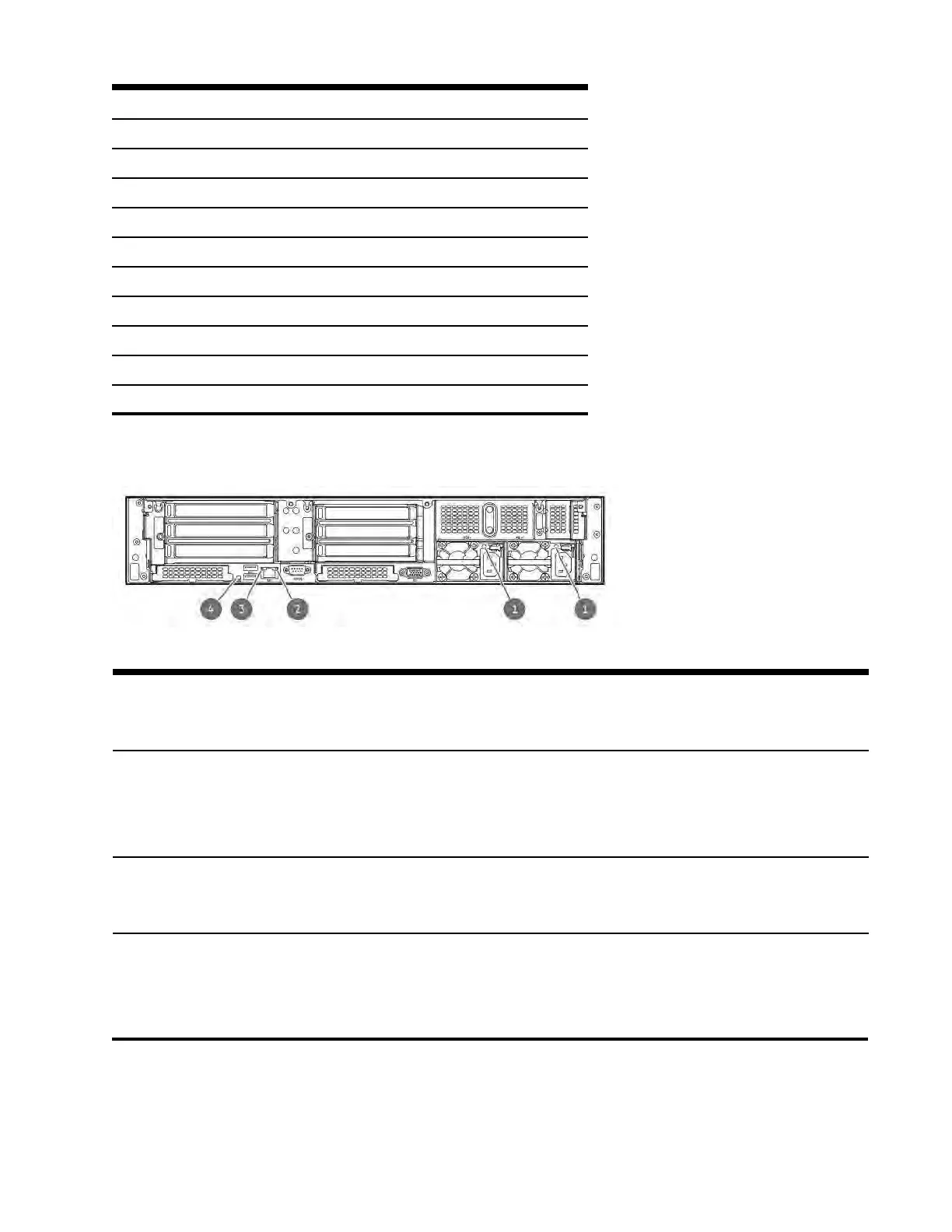

Rear panel LEDs
Item
Description
Status
1
Power supply LED
• Off = System is off or power supply has failed
• Solid green = Normal
2
Status LED
• Off = No network activity
• Solid green = Link to network
• Flashing green = Network activity
3
Link LED
• Off = No network link
• Green = Network link
4
UID LED
• Off = Deactivated
• Solid blue = Activated
• Flashing blue = System is being managed remotely
