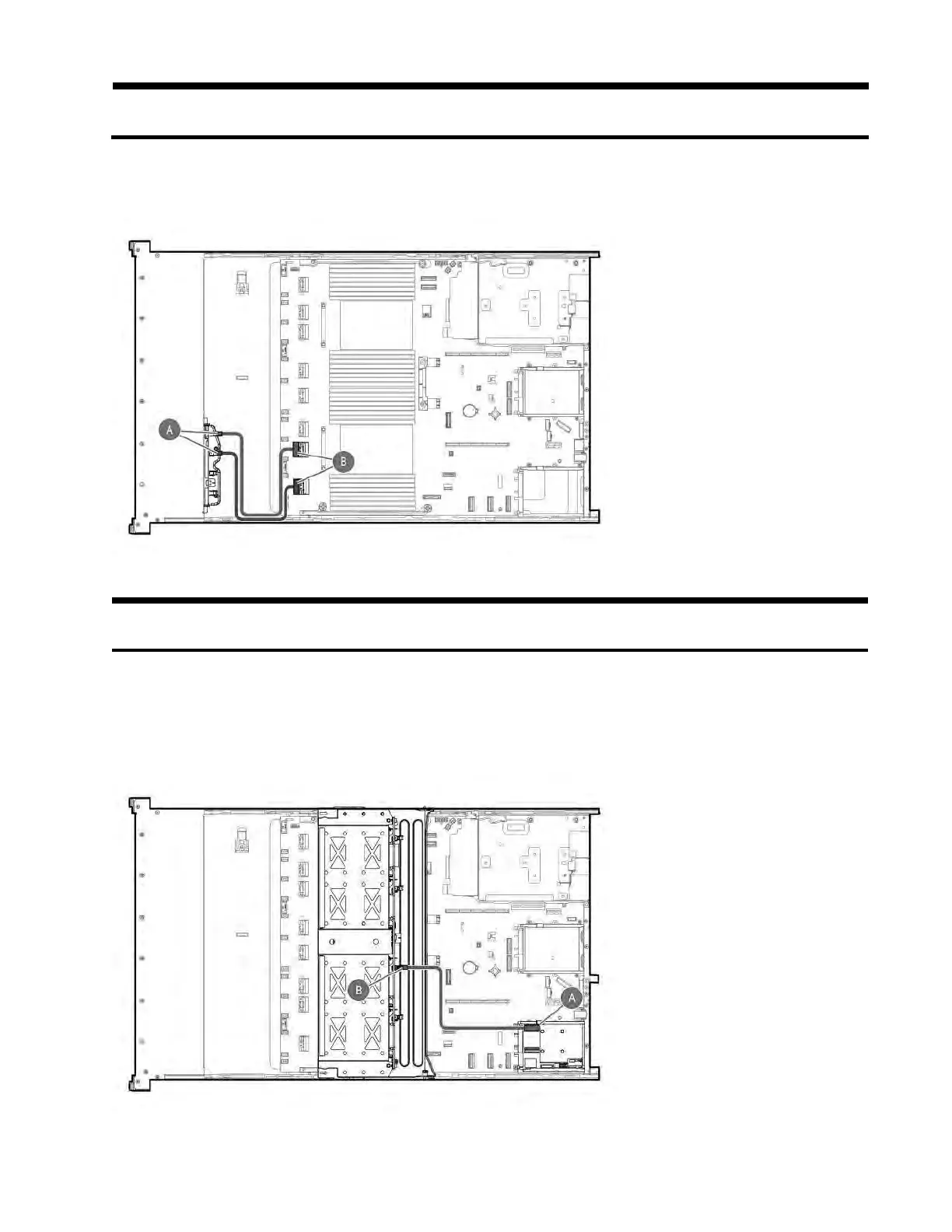

Mid 8 SFF cabling
Cable part number
Color
From
To
P53287-001
1
Orange
Box 3 ports 1-4
System board ports
1-4
1
Option kit: P48825-B21
8 SFF box 3: System board
Cable part number Color From To
P51543-001
1
Orange Drive backplane port 1
and 2
System board port 1
and 2
1
Option kit: P48825-B21
Mid 8 SFF cabling
8 SFF box 7: Primary type-o controller
