Hitachi LAB-X5000 - Connectors; Secondary Safety Windows

LAB-X5000 Series User Guide
2.6.

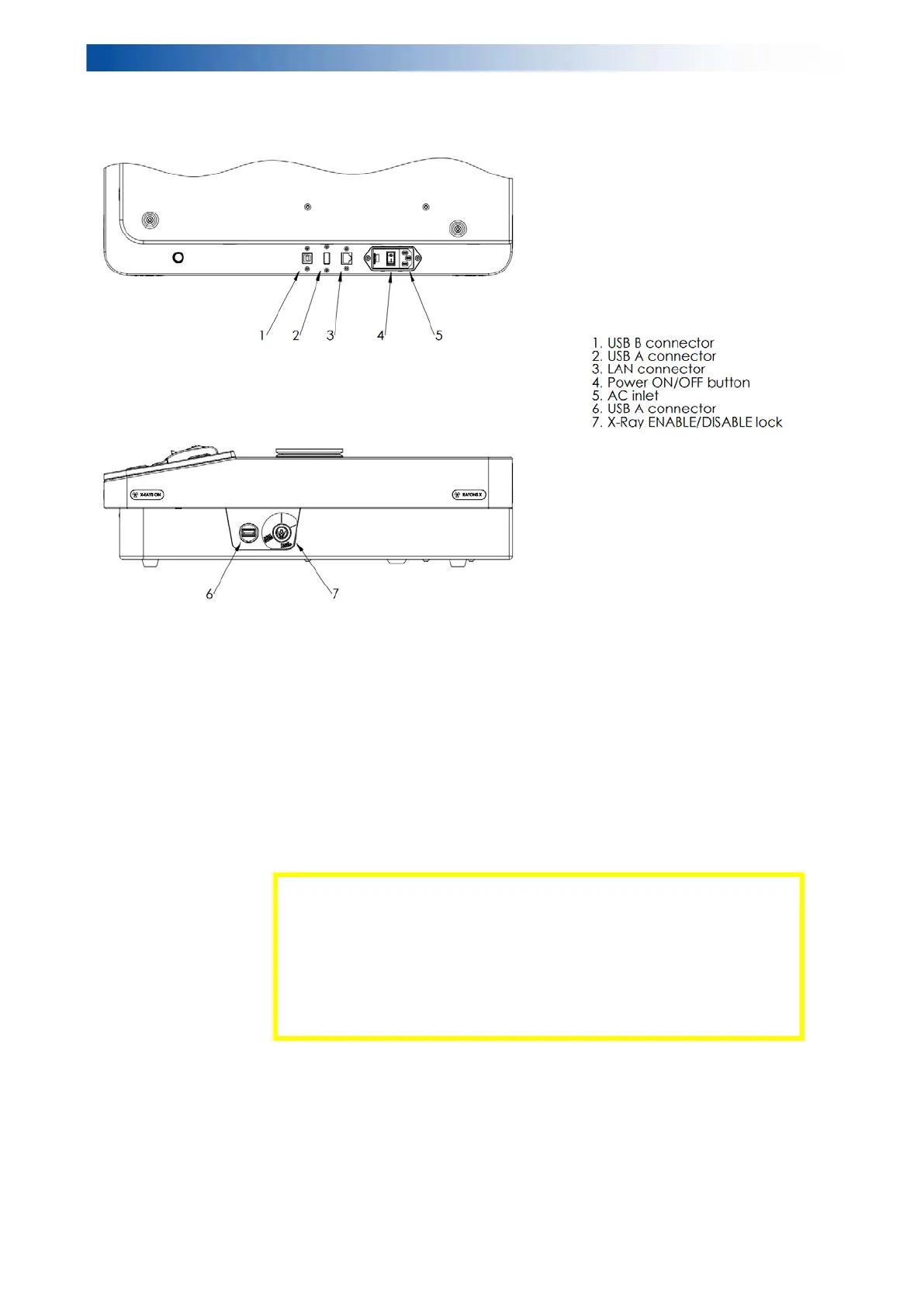

Connectors
2.7.
Secondary Safety Windows
Secondary safety windows should be fitted into the sample port of the LAB-X5000 2.7.1.
before any measurements are made. These prevent dust, accidental sample spillage,
etc. from entering the analysis head and contaminating the system.
Assembly of secondary safety windows 2.7.2.
Safety windows are assembled using a secondary window stage with clamping 2.7.2.1.
ring and a window film. This film will depend on the application.
It is very important that the correct film is used in the safety windows.
Incorrect film could invalidate the restandardization procedure.
The safety window must be kept clean and dry. Do not touch the surface.
Dirt, moisture, oils, or fingerprints may affect analysis results.
Secondary Window Assembly 2.7.3.
Place the plastic outer ring on a flat surface. Note: If the ring has a stepped end, 2.7.3.1.
place the stepped end upwards.
Place a piece of window material on top of the ring and press the plastic inner ring 2.7.3.2.
fully down onto the outer ring, trapping the window material.
Check that the assembled window is perfectly flat. If not, repeat the mounting 2.7.3.3.
Information

