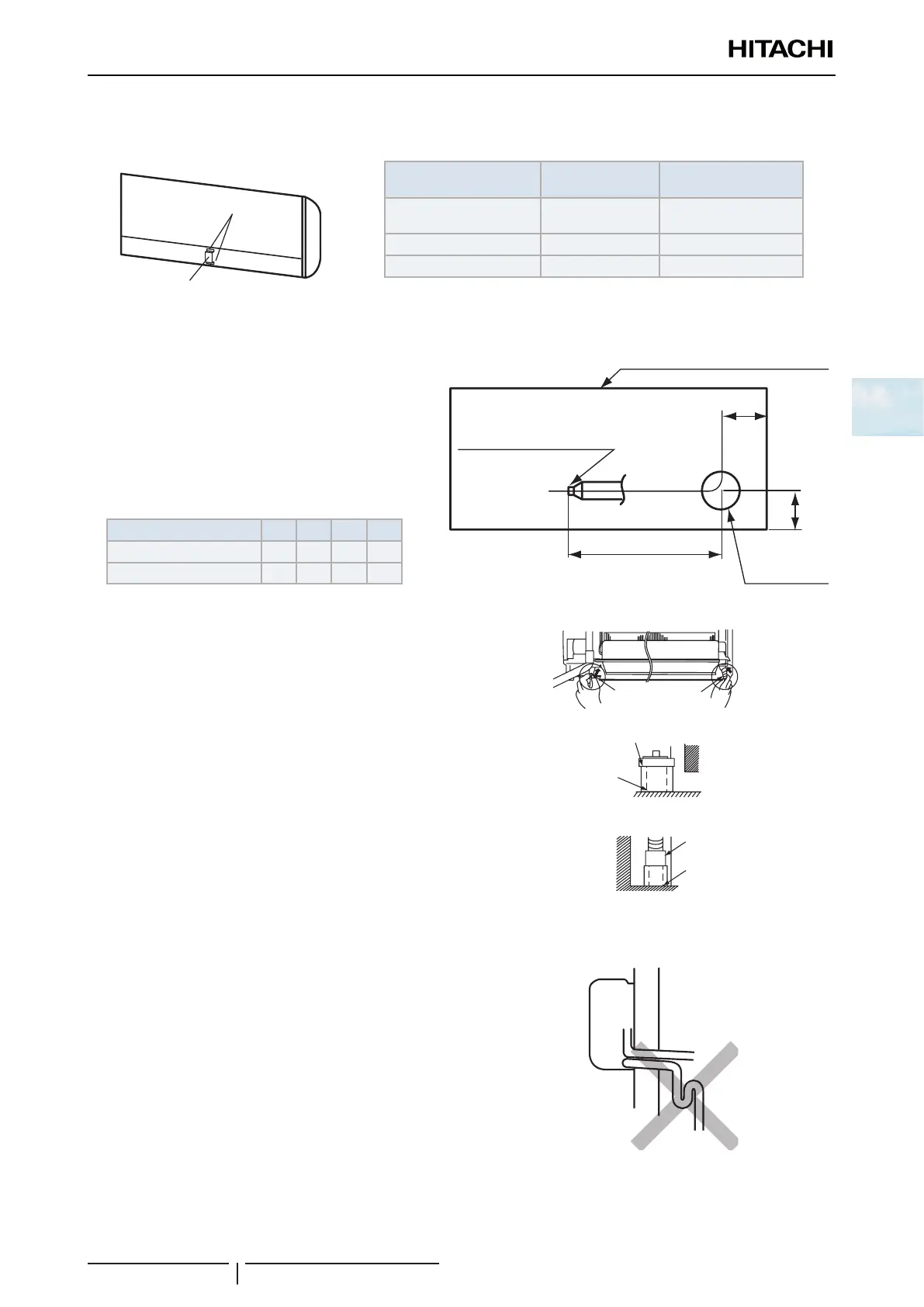

3 Piping work and refrigerant charge
Refrigerant and drain hose installation
SMGB0099 rev.0 - 12/2016
127
3
Fix the xing plate for pipes (accessory) as shown in the gure below.
Fix the xing plate onto upper 
and lower catches.
Fixing Plate
(only for 2.0 to 4.0HP)
Catches
Models
Gas pipe mm
(inches)
Liquid pipe
mm (inches)
RPK-(0.6-1.5)FSN(H)3M Ø12.70 (1/2)
Ø9.52 (3/8) (FSNH3M)
Ø6.35 (1/4) (FSN3M)
RPK-2.0FSN3M Ø15.88 (5/8) Ø6.35 (1/4)
RPK-(2.5-4.0)FSN3M Ø15.88 (5/8) Ø9.52 (3/8)
Drain pipe installation
? NOTE
The normal direction for connecting the drain hose is on the
right side (when the unit is seen from the outlet grille side).
The connection can be made from the left side or from the rear
if there are construction elements of the building around it.
Unit: mm
Model A B C ØD
RPK-(0.6-1.5)FSN(H)3M 568 107 45 65
RPK-(2.0-4.0)FSN3M 550 141 42 80
A
B
C
(VP16)
Exterior contour for indoor unit
Hole for rear
side piping
Drain pipe connection
When the left side drain piping connection is performed,
remove the cap of left side drain pipe, and then attach this
cap to the right side drain pipe in order to change drain
piping connection from right side to left side. If the cap is
xed tightly, remove the cap by using the plier. (Perform 
this procedure before the indoor unit is hung onto the wall.)
Right side
Insert until
this line
Drain hose
Left side
Insert until
this line
Drain outlet cap
Drain
outlet cap
Drain hose
Provide a vinyl chloride pipe, VP16.
When the drain hose is used, do not create rising part or twist.
