9 Servicing
RCD-(0.8-6.0)FSN3 - 2-way cassette
SMGB0099 rev.0 - 12/2016
269
9
9.3.3 Removal of the optional air panel

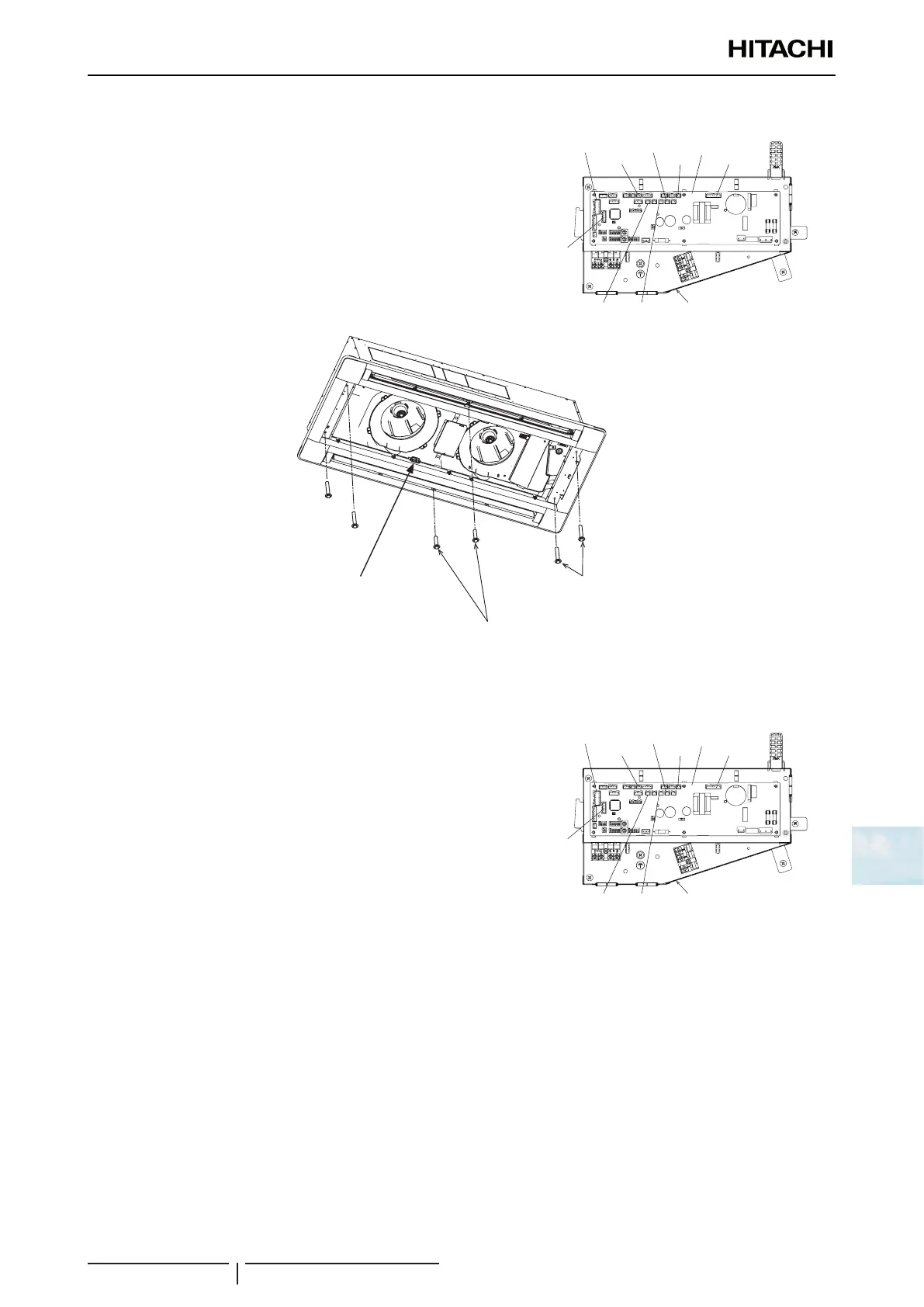

1 Open the air inlet grille.
2 Remove the electrical box cover.
3 Remove the connector (CN17) of the automatic louver on the
indoor unit PCB.
4 Hang the air panel from the indoor unit by hooking the hinges and
remove the long screws (4 for P-AP90DNA, 6 for P-AP160DNA)
for air panel.
5 Then, remove the air panel by unhooking the hinges (x2) from
the indoor unit drain pan.
CN17 PCB
CN14
THM2
CN36 CN1
1
THM5 THM3
Electrical box
Hinge (x2)
Long screw (x2)
(Inside the Air Outlet)
(Only for P-AP160DNA)
Long screw (x4)
9.3.4 Removal of the fan duct and the fan
1 Remove the electrical box cover according to the item “9.1.2
Removing Electrical Box Cover”.
2 Remove the electrical box.
a. Remove the outlet air thermistor (THM2), the drain-up
mechanism connector (CN36), the oat switch connector
(CN14), the liquid pipe and gas pipe thermistors (THM5,
THM3), the expansion valve (CN11), the fan motor connector
(CN1) and the auto louver motor connector (CN17) from the
PCB.
For RCD-(4.0-6.0)FSN3, remove the fan control lead wire
(x2) from the bell-mouth then remove the fan motor connector
(CN4) inside the fan control electrical box.
b. Remove the 2 xing screws for the electrical box and remove
the electrical box.
For RCD-(4.0-6.0)FSN3, remove the 2 xing screws for the
fan control electrical box and remove the fan control electrical
box.
CN17 PCB
CN14
THM2
CN36 CN1
1
THM5 THM3
Electrical box
3 Removing the Bell-mouth. Remove 4 xing screws for the bell-mouth xed to the drain pan, and remove the bell-
mouth (1 Bell-mouth for RCD-(0.8-3.0)FSN3, 2 bell-mouth for RCD-(4.0-6.0)FSN3).
To Next Page
