4 Electrical and control settings

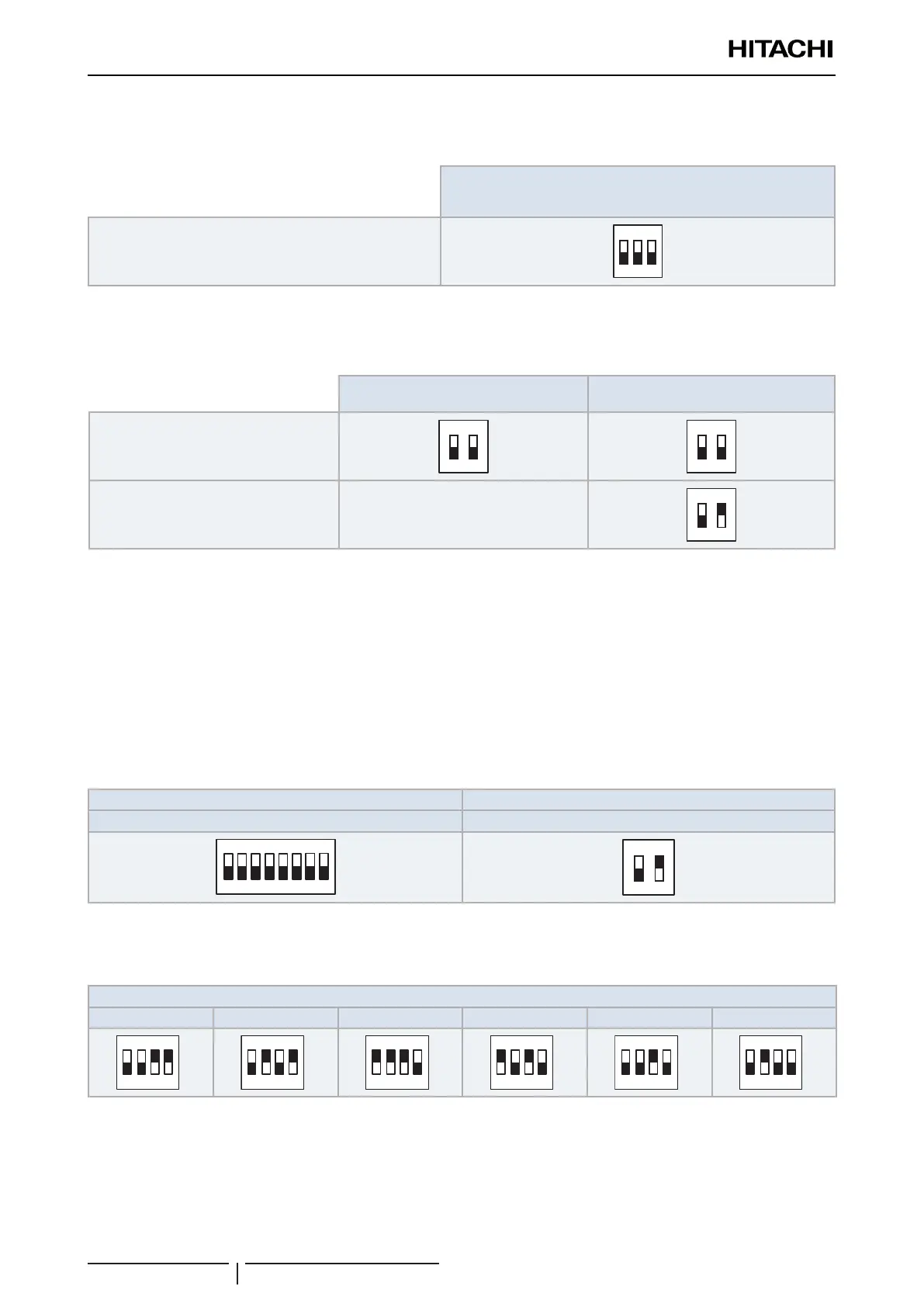

Setting of DIP switches and RSW switches
SMGB0099 rev.0 - 12/2016
164

DSW8
No settings are required.
Only: RCD-FSN2E, RPI(M)(0.8–1.5)FSN4E,
RPI(2.0–6.0)FSN4E, RPI-(8.0–10.0)FSN3E(-f),
RPI-(16.0–20.0)FSN3PE(-f)
Factory setting
123
ON

DSW9
No settings are required.
Only for RCI-FSN4, RPC-FSN3,
RPI-(2.0-6.0)FSN4E, RPK-FSN(H)3M
Only for RCIM-FSN4(E)
RPI(M)-(0.6–1.5)FSN4E
Factory setting
12
ON
12
ON
Special 0.6 HP capacity setting
(1)
Not used
12
ON
? NOTE
(1)
Only available for RCIM-0.8FSN4(E) and RPI(M)-0.8FSN4E units. 0.8 HP Indoor Units set to a lower capacity (0.6 HP) can only be used
in combination with SET FREE MINI series 3 (RAS-(4-6)FS(V)N(Y)3E).
4.2.3 Functions of the DIP switches and RSW switches (KPI units)

PCB1 settings
DSW1 and DSW2
No settings are required.
DSW1 DSW2
All units All units
1 2 3 4 5 6
ON
7 8
12
ON
DSW3: capacity code setting
No setting is required, due to setting before shipment. This dip switch is used for setting the capacity code.
DSW3
KPI-252 KPI-502 KPI-802 KPI-1002 KPI-1502 KPI-2002
1
2
3
4
ON
1
2
3
4
ON
1
2
3
4
ON
1
2
3
4
ON
1
2
3
4
ON
1
2
3
4
ON
