4 Electrical and control settings
Unit electrical wiring and connection
SMGB0099 rev.0 - 12/2016
157
4
4.1.14 Network system connection (CS-NET WEB)
PC-ARFPE
PC-ARFPEPC-ARFPE
CS NETWEB

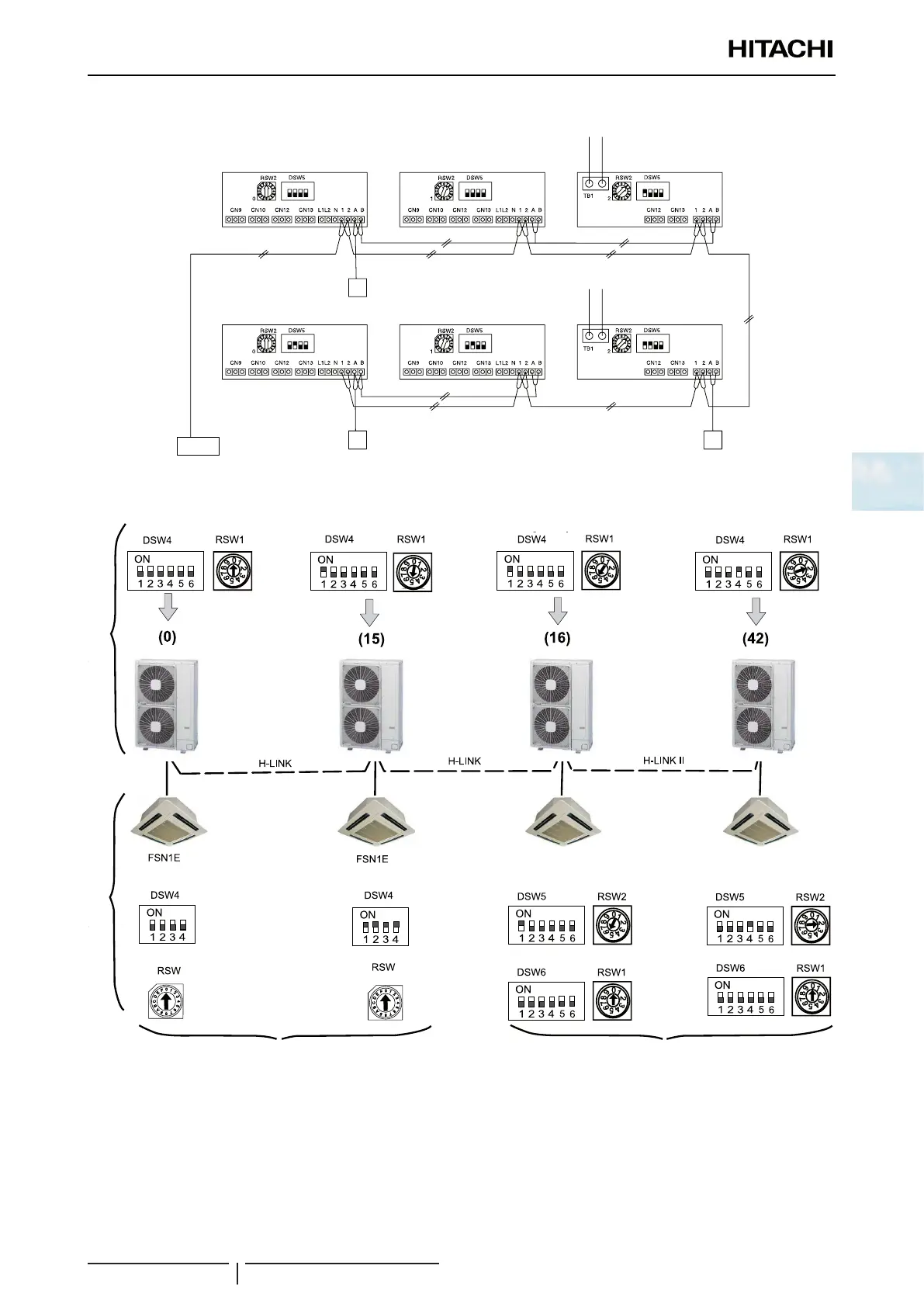

4.1.15 Connection between units H-LINK and H-LINK II
FSN3EiFSN3Ei
Refrigerant cycle
Refrigerant cycle
Refrigerant cycle
Refrigerant cycle
Refrigerant cycle
Refrigerant cycle
Refrigerant cycle
Refrigerant cycle
Indoor unit address
Indoor unit address
Indoor unit address
Indoor unit address
Indoor unit Outdoor unit
Either the current remote control switch (H-LINK) or
the new one (H-LINK II) can be used
Only the new remote control
switch (H-LINK II) can be used
For mixed H-LINK and H-LINK II systems, set the H-LINK units in the rst 16 positions of the system, as shown in the
following gure. There are 26 systems with FSN(2/3/4)E indoor units.
? NOTE
• H-LINK is able to manage up to 160 indoor units.
• When PSC-5S and CSNET WEB 2.0 (only compatible with H-LINK), are used, remember that only 16 indoor units and 16 outdoor
units can be managed.
