9 Servicing
RCI-(1.0-6.0)FSN4 - 4-way cassette
SMGB0099 rev.0 - 12/2016
258
9.1.13 Removing Louver
1 Remove the air panel according to the item “9.1.3 Removing Optional Air Panel”.
2 Remove the corner cover according to the item “9.1.12 Removing Auto Louver Motors”.
3 Remove the packing and guides.
4 Remove two (2) xing screws for motors from the air panel. Remove the screw for louver bearing, and pull it out from
the air panel. Then, remove the louvres, louver bearings and motors.
5 Remove the motors for auto louver according to the item “9.1.12 Removing Auto Louver Motors”.
6 Remove each louver bearing and louver spring.
? NOTE
• When reassembling, securely catch the C-shaped part of louver spring onto the hooking part of louver. Additionally, insert the
L-shaped part of louver spring into the hole of louver bearing.
• Rotate the louver bearing 360o clockwise before xing the screw for louver bearing.

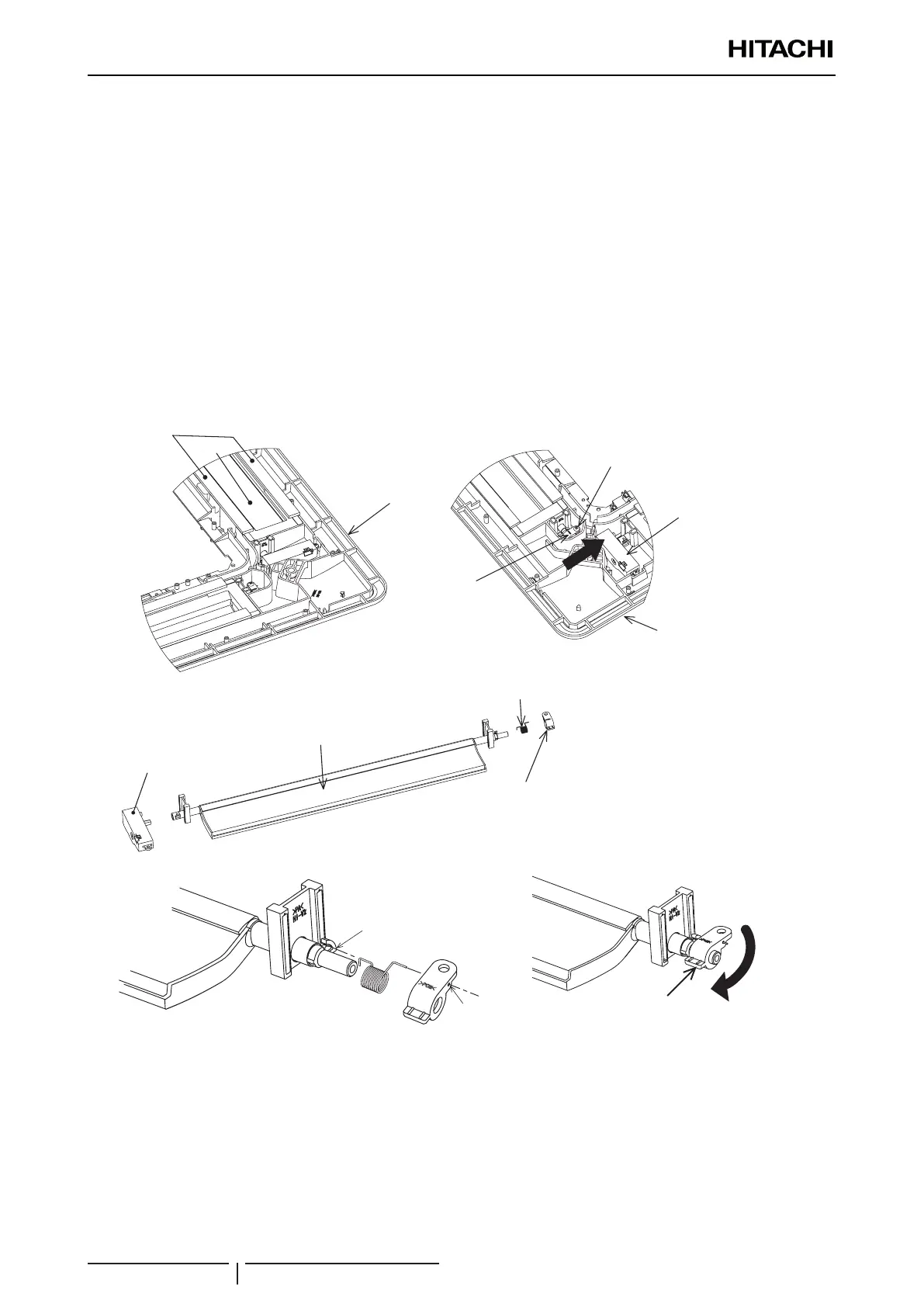

Remove the louver bearing and
the motor for auto louver.
Reassembling
Hooking part
Louver bearing
Louver spring
Hole
Louver bearing
Rotate 360º
clockwise
Louver
Louver spring
Motor for auto
louver
Louver
bearing
Louver bearing
Air panel
Motor for auto
louver
Fixing screw
Air panel
Packing
Guide
