2.9 RPF - Floor type, RPFI - Floor concealed type
2.9.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
? NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.

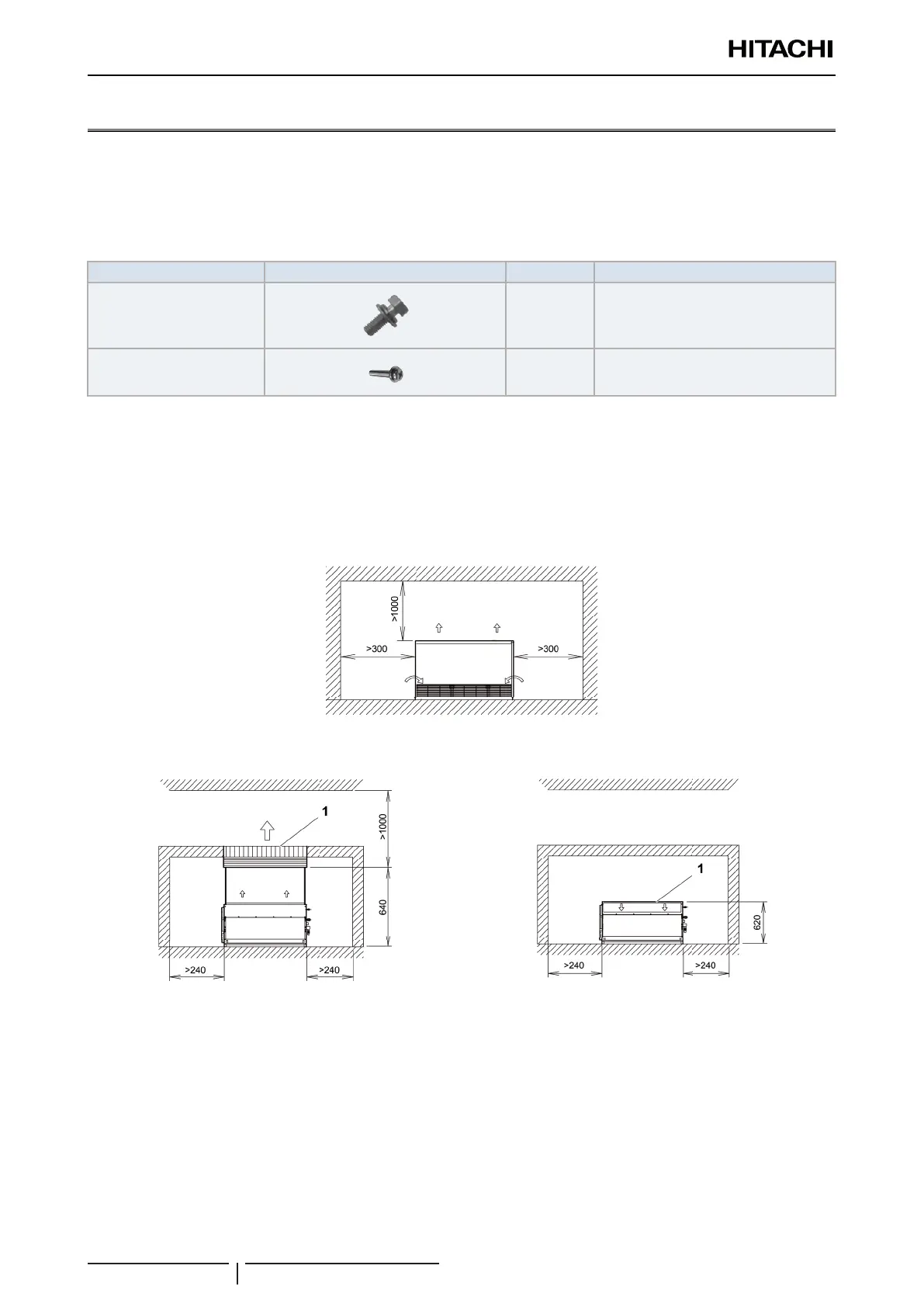

Accessory Appearance Quantity Purpose
Installation adjustment screw 4 To adjust the at level of the unit.
Philips head screw 2 For PC-ARFPE
2.9.2 Unit installation
Initial checks
Check that there is enough space around the unit. Consult the corresponding chapter of the Technical Catalogue for
information on the unit measurements.
RPF - Floor type (1.0-2.5)FSN2E
RPFI - Floor concealed type (1.0-2.5)FSN2E
1. Vertical air outlet. 1. Horizontal air outlet.
Before starting installation, plan the direction of the pipes and wiring required. Also bear in mind that there must be
enough space around the unit for installation and maintenance.
Check that the oor surface where the unit is to be installed is completely horizontal.
? NOTE
Bear in mind the air distribution from the unit to the room and select a suitable place for an even air temperature in the room.
