2.11 Econofresh Kit
2.11.1 Accessories supplied with the unit
Check to ensure that the following accessories are packed with the unit.
? NOTE
If any of these accessories are not packed with the unit, contact your contractor.
Accessory Qty
Cord AS 1
Outdoor Thermistor (8m) 1
Screw (for RPI and Econofresh anges
connection)
12
2.11.2 Unit installation

Initial checks
Before Econofresh kit installation refer to indoor unit’s Installation and Operation Manual.

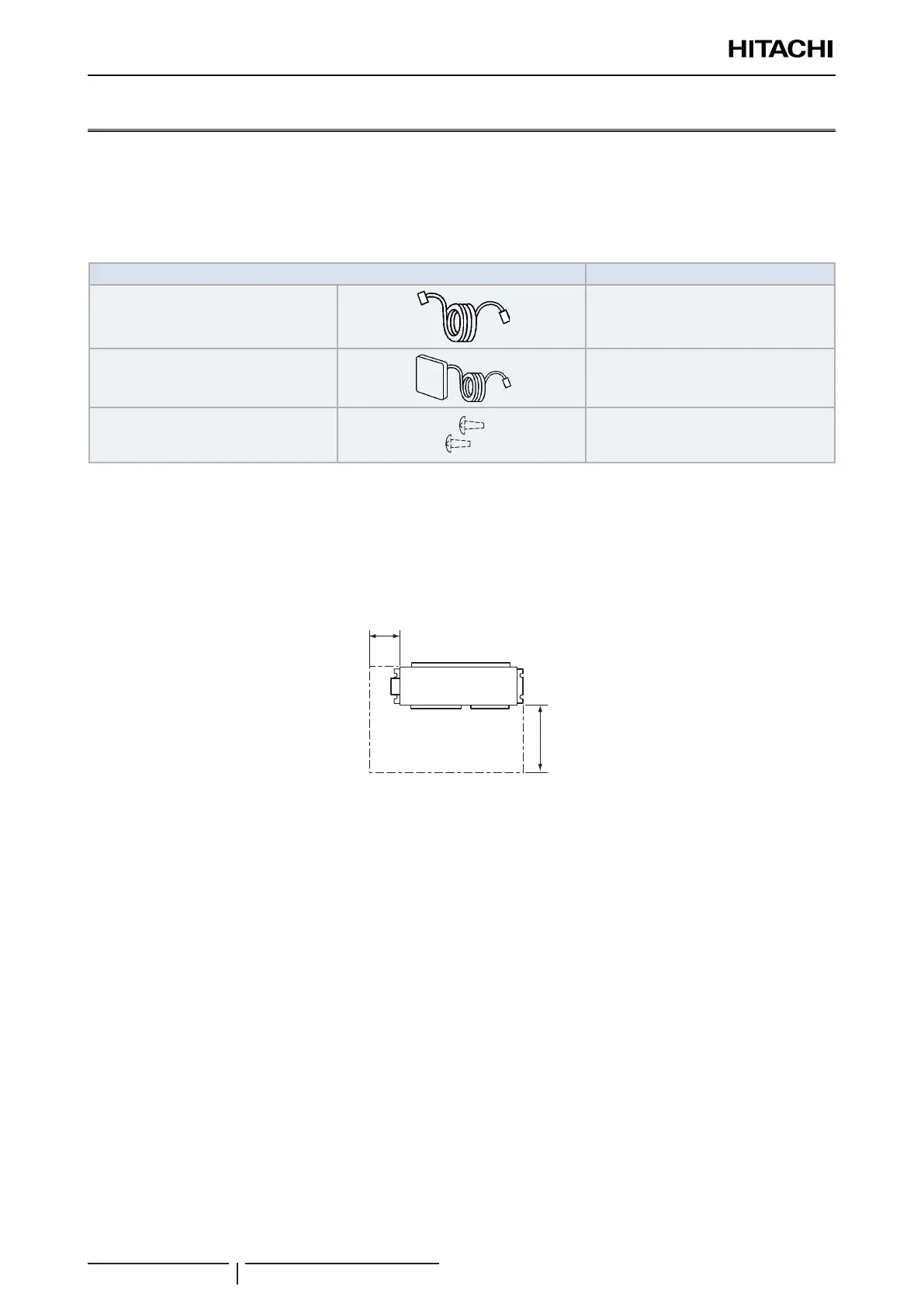

Install the indoor unit with a proper clearance around it for operation and maintenance working space, as shown below.
Upper View
SA
OARA
200mm
400mm
SA: Suction air
RA: Return air
OA: Outlet air
! DANGER
Do not install the indoor unit in a ammable environment to avoid re or an explosion.
! CAUTION
• Check to ensure that the ceiling is strong enough.
• Do not install the unit outdoors .
• If installed outdoors, an electric hazard or electric leakage will occur.
