9 Servicing
RPI-(8.0-20.0)FSN3(P)E(-f) - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
302

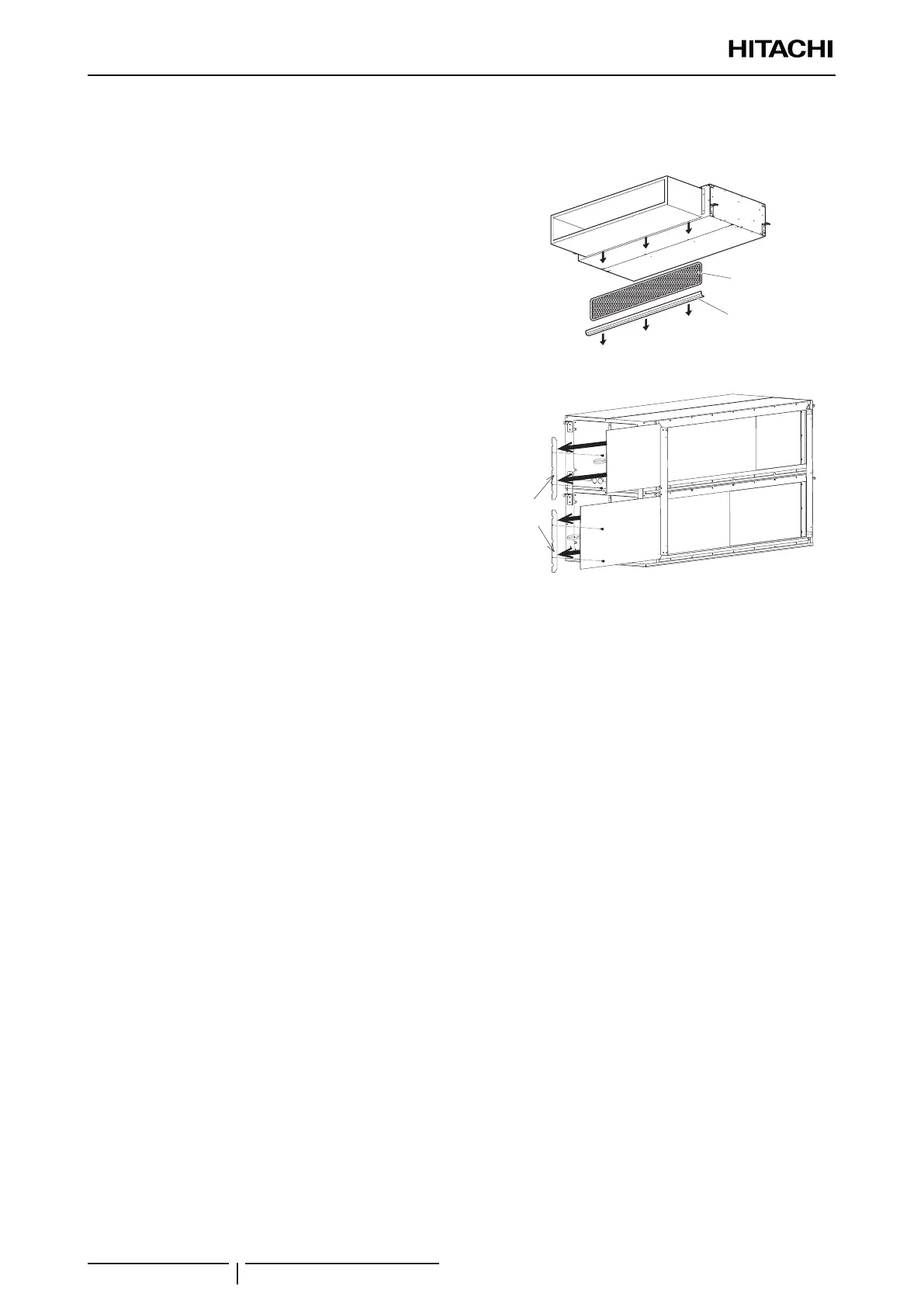

9.7.8 Removal of the air lter
For RPI-(8.0/10.0)FSN3E(-f)
Remove the four set screws from the support xture -1- of the
air lter -2- and separate both parts.
2
1
For RPI-(16.0/20.0)FSN3PE(-f)
Filter maintenance can be performed from right or left side of
the unit.
Remove lter support (x2 screws / each support) and pull
out the lter from the handle. In those installations where the
servicing space is narrow, the lter could be bent (in three
pieces) when pulling it out.
Filter
support
