2 Unit installation
Econofresh Kit
SMGB0099 rev.0 - 12/2016
73
2

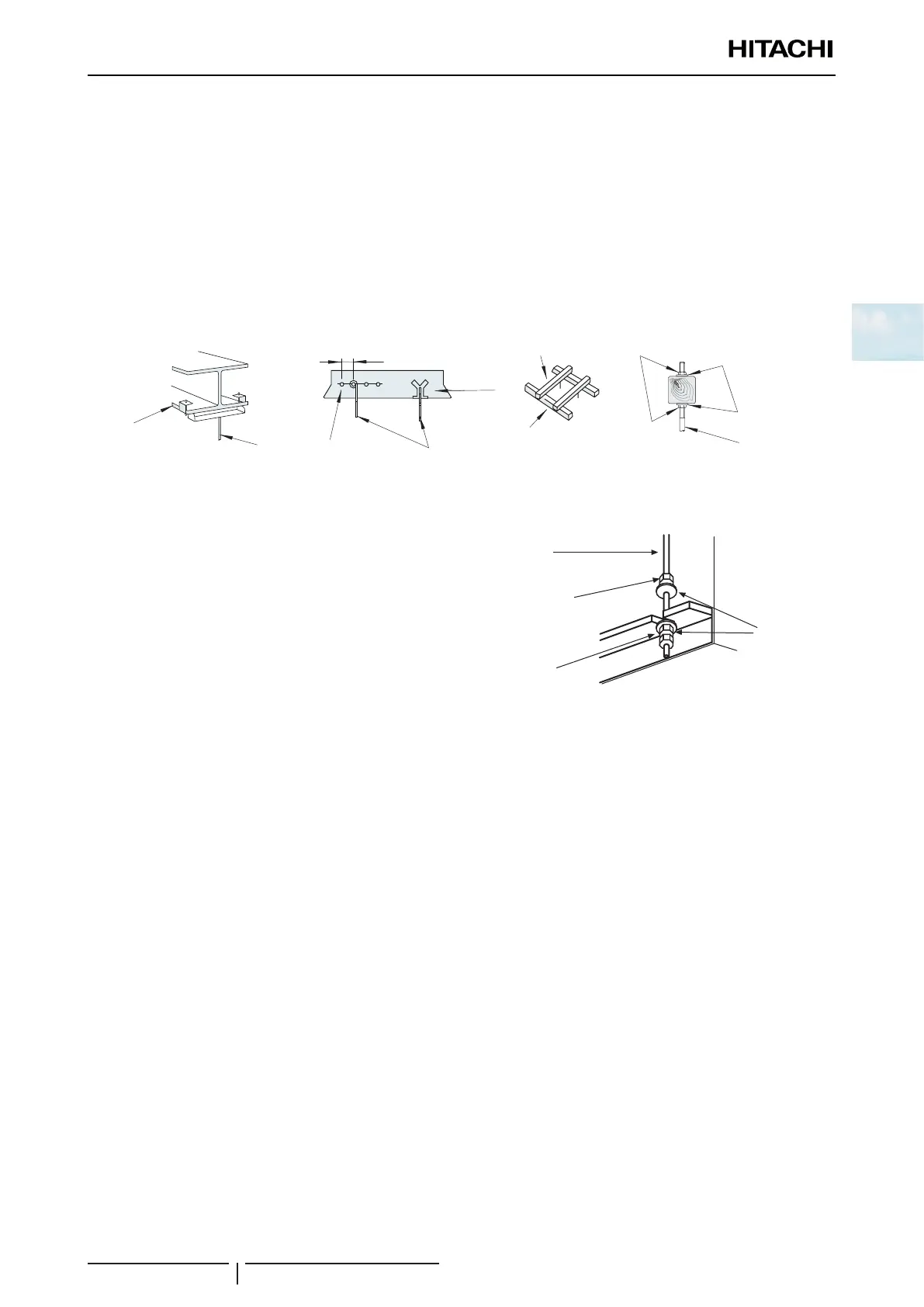

2.11.3 Mounting the unit
Step 1
Select a nal location and installation direction of the unit paying careful attention to the space for wiring and
maintenance.
Step 2
Mount suspension bolts, as shown on the gure beside.
Installation dimensions are shown on Dimensional Drawing.
Concrete
Wooden
Beam
Nuts
Square
washers
Sling Bolt
(W3/8 or M10)
Anchor Bolt
Steel
Suspension Bolts
(W3/8 or M10)
For Concrete Slab
150~160mm
Wooden Bar
(60 mm to 90 mm
Square)
I-Beam
Step 3
Hanging the unit.
- Hang the suspension bracket on the anchor bolts
and adjust in such a way that the unit is installed
horizontally
- Tighten up securely using double nuts in order to
prevent looseness.
Sling Bolt
(M8 to M10) (*)
Washer (*)
(*) Field-
Supplied
Nut (*)
! CAUTION
When suspending the main unit from the ceiling, do not handle it in such a way that a force will be applied to the control box.
