9 Servicing
RCIM-(0.6-2.5)FSN4(E) - 4-way cassette (compact)
SMGB0099 rev.0 - 12/2016
260

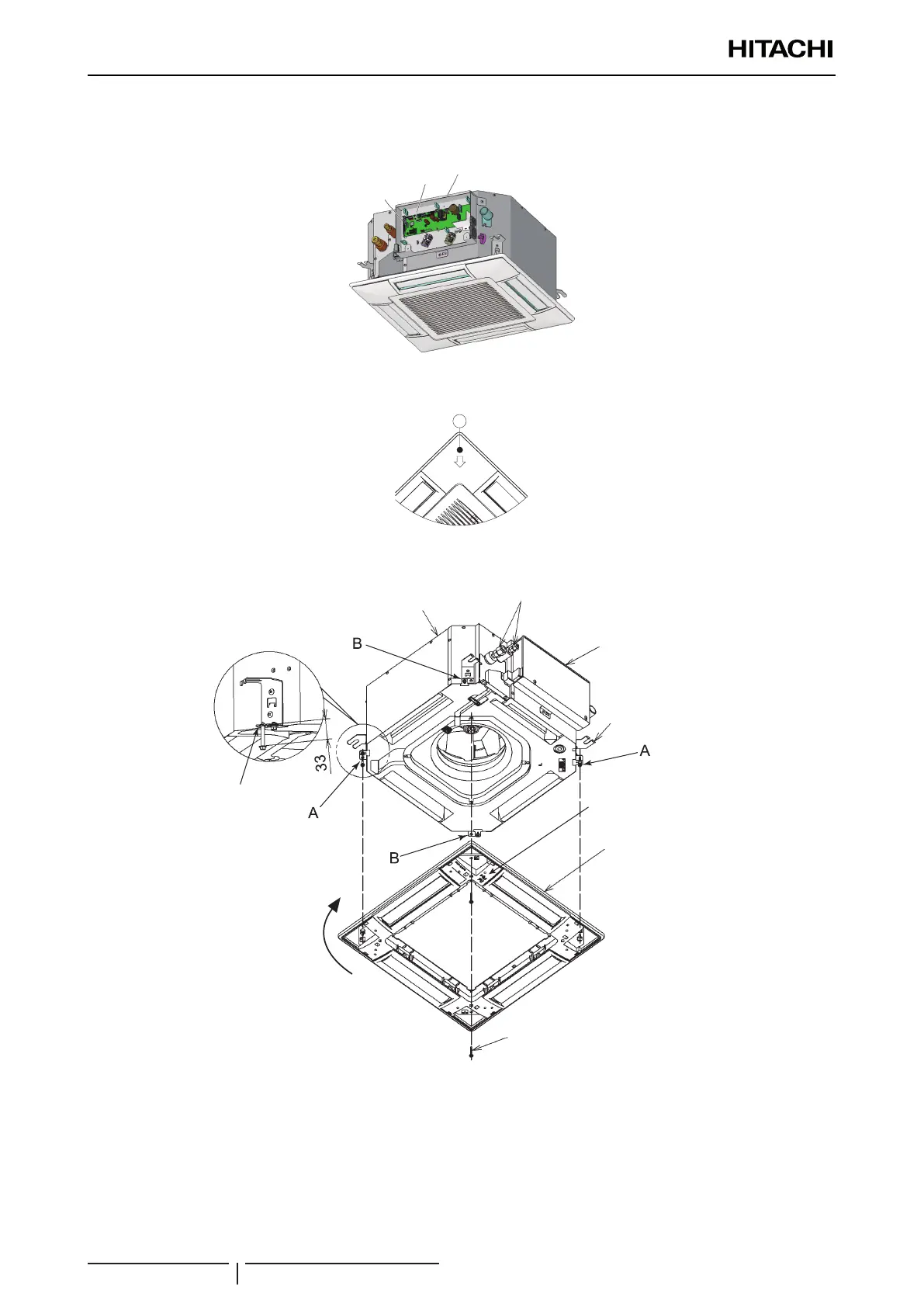

9.2.4 Removal of the optional air panel
1 Remove the auto swing motor connector (CN17) from PCB
CN7
PCB
Electrical box
2 Remove the corner covers.
Corner covers can be removed pulling “A” part, toward the arrow direction, shown in the gure below.
A
3 Remove the long screws of “A” at the air panel. Loosen the long screws of “B”, and rotate the air panel to the arrow
direction to remove the air panel.
Electrical box
Indoor unit
Refrigerant pipe
Mounting
sheet
Long screws (x4)
Air panel
Indication:
“Pipe side”
Fixing plate
(Indoor unit)
To Next Page
