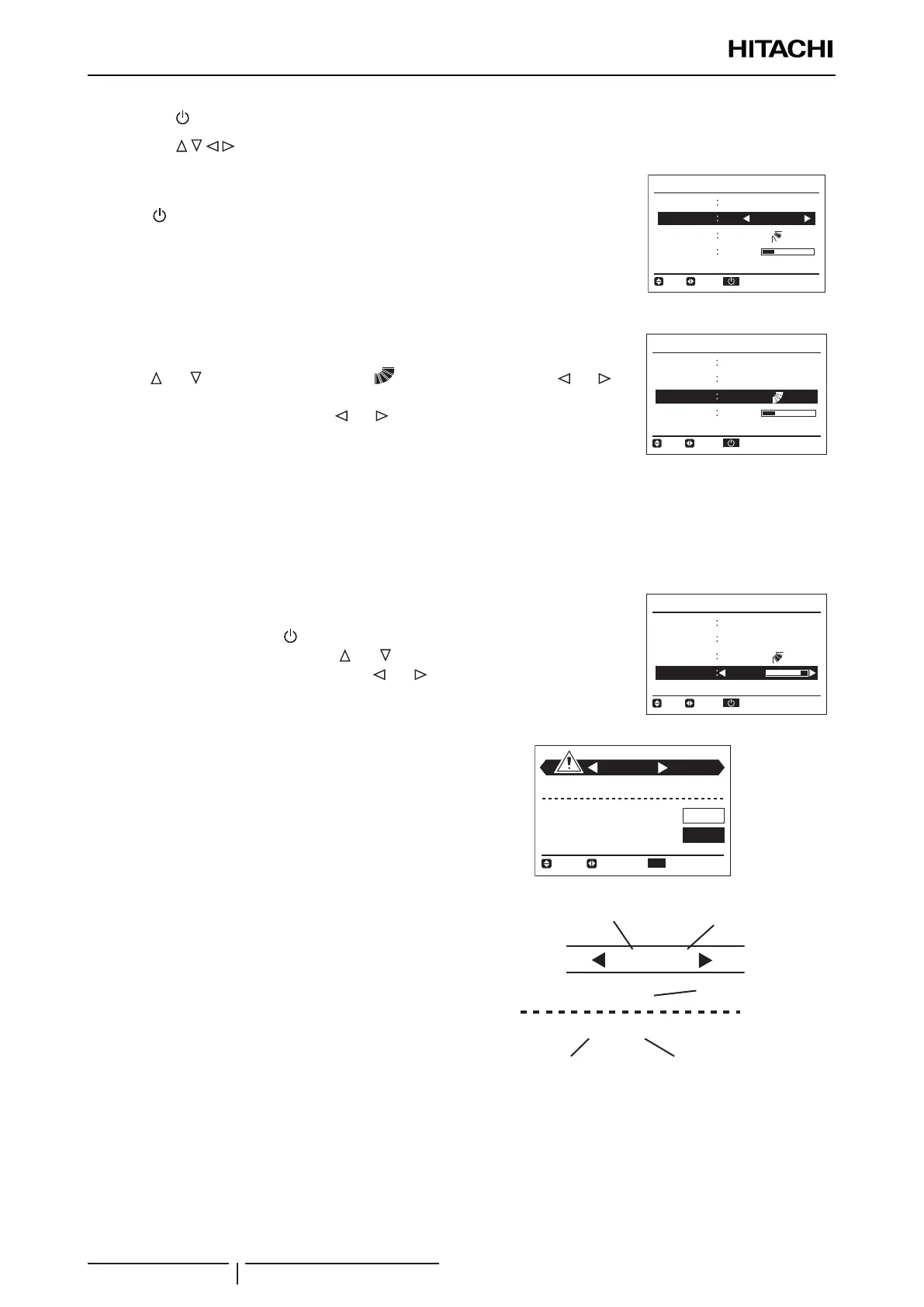

7 Commissioning
Checks prior to the test run
SMGB0099 rev.0 - 12/2016
236
b. Press “ ” (run/stop) to start the test run.
c. Press “ ” and set each item.
(5) Press “ ” (run/stop). Start the test run when indicating the air ow volume “HIGH”
(default setting) and light the operation lamp. At this time, 2-hour OFF timer will be set
automatically.
Test Run: 2 units
MODE
SPEED
HIGH
LOUV.
SEL. ADJ
T-RUN TIME
120MIN
STOP
COOL
(6) Press “ ” or “ ”, select “LOUV.” and select “ ” (auto swing) by pressing “ ” or “
”. The auto swing operation will be started. Check the operating sound at the louvers. If
abnormal sound is not generated, press “ ” or “ ” again to stop the auto swing operation.
Test Run: 2 units
MODE
SPEED
HIGH
LOUV.
SEL. ADJ
T-RUN TIME
120MIN
STOP
COOL
(7) The temperature detections by the thermistors are invalid though the protection devices are valid during the test run.
(8) For SET-FREE Series: According to the label “Checking of Outdoor Unit by 7-Segment Display on PCB1” attached
to the rear side of the front cover of the outdoor unit, check temperature, pressure and the operation frequency, and
connected indoor unit numbers by 7-segment displays.
(9) To nish the test run, press “ ” (run/stop) again or pass over the set test run time.
When changing the test run time, press “ ” or “ ” to select “T-RUN TIME”. Then, set the
test run time (30 to 600 minutes) by pressing “ ” or “ ”
Test Run: 2 units
MODE
SPEED
MED
COOL
LOUV.
SEL. ADJ
T-RUN TIME
510MIN
STOP
The RUN indicator on the remote control switch ashes when
some abnormalities such as protection devices activated occur
during the test run as well as the RUN indicator (orange) on the
indoor unit ashes (0.5 second ON/ 0.5 second OFF).
Additionally, the alarm code, the unit model code and
connected number of indoor units will be displayed on the
LCD as shown in the gure below. If the RUN indicator on PC-
ARFPE ashes (2 seconds ON/ 2 seconds OFF), it may be
a failure in the transmission between the indoor unit and the
remote control switch (loosening of connector, disconnecting
wiring or breaking wire, etc.). In this case, check the item Alarm
Code and perform for troubleshooting.
Consult to authorized service engineers if abnormality can not
be recovered.
SEL. OP MODE
MODEL : b .02
Alarm Code:
22
01-02
ALM RST
ADDR
ENT.
OK
Refrigerant cycle number of
indoor unit which abnormality
occurs
Indoor unit number which
abnormality occurs
Alarm code number
Total number of indoor unit
in same refrigerant cycle as
one that abnormality occurs
Indoor model code
Alarm code
MODEL
:22
01 - 02
To Next Page
