Hitachi RCIM-1.5FSN4 Service Manual

10 Troubleshooting

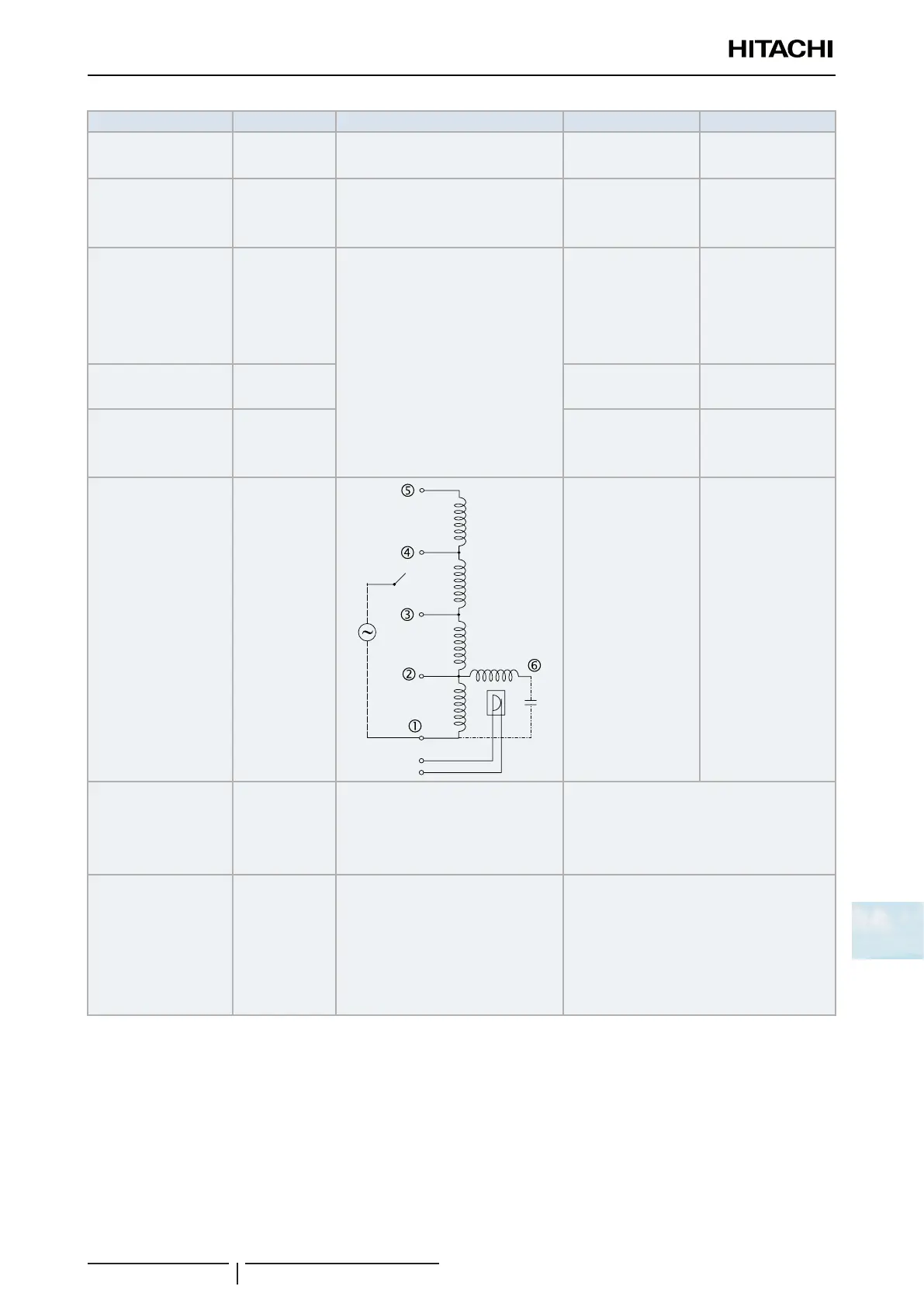

Procedure for checking fan motors in indoor units
SMGB0099 rev.0 - 12/2016
345
10
Indoor units Power output Wiring diagram Cable number Resistance (Ω)
RPC-2.5FSN3
RPC-3.0FSN3
80 W DC motor — —
RPC-4.0FSN3
RPC-5.0FSN3
RPC-6.0FSN3
160 W DC motor — —
RPI(M)-0.6FSN4E-(DU)
RPI(M)-0.8FSN4E-(DU)
RPI(M)-1.0FSN4E(-DU)
RPI(M)-1.5FSN4E(-DU)
RPI-2.0FSN4E
60 W
DC motor
— —
RPI-2.5FSN4E
RPI-3.0FSN4E
150 W — —
RPI-4.0FSN4E
RPI-5.0FSN4E
RPI-6.0FSN4E
250 W — —
RPI-(8.0/10.0)
FSN3E(-f)
RPI-(16.0/20.0)
FSN3PE(-f)
1065 W
BLK1-2RED
RED2-3BLU
BLU3-4GRY
GRY4-5YEL
RED2-6WHT
5.00
0.75
0.75
0.75
9.20
to 20 ºC
RPK-0.6FSN(H)3M
RPK-0.8FSN(H)3M
38 W DC motor —
RPK-1.0FSN(H)3M
RPK-1.5FSN(H)3M
RPK-2.0FSN3M
RPK-2.5FSN3M
RPK-3.0FSN3M
RPK-4.0FSN3M
40 W DC motor —
