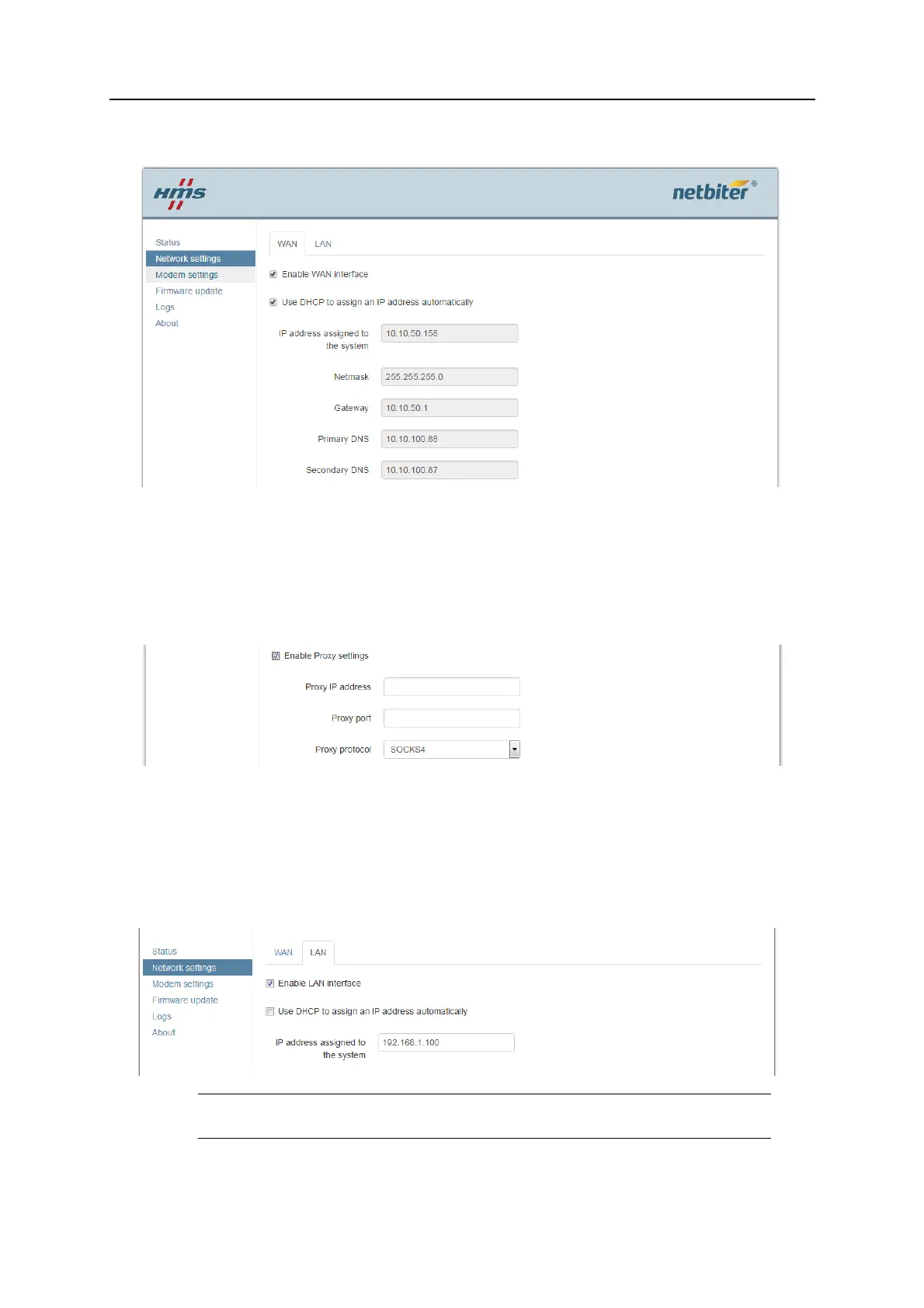

9.5.3 WAN Settings
TheWANinterfac eshouldbeenabledwhenconnectingtoNetbiterArgosviaEthernet.
WhenDHCPaddressingisenabledtheunitwillautomaticallyreceivethesettingsforIP
address,subnetmask,defaultgateway,andDNS.IfnotusingDHCP,thesesettingsmust
beenteredmanually.Contactyournetworkadministratorifindoubt.
9.5.4 Proxy Settings
Ifusingaproxyserver,checktheboxandentertheIPaddress,portandprotocoltouse.
9.5.5 LAN Settings
TheLANinterfaceshouldbeenabledwhenusingEtherNet/IPorModbusTCPapplica‐
tions,orwhenusingtheRemoteAccessfeature.
! DonotconnecttheLANandWANportstothesamephysicalnetwork.
