REMOTE SITE SERVER USER’S GUIDE
Imager Duo Operator’s Manual
10.3
CAUTION
Route all connectors
carefully to avoid
pinching the cables.
To avoid tripping
over or
disconnecting
cabling, do not
place cabling near
foot traffic.
Extended Network Configuration
The Review Scopes may be located at a greater distance from the Server by
using an extended network interconnection between the Server hub/switch
and the Review Scope hub/switch.
Low-level, industry standard interconnection devices such as bridges, repeat-
ers, media converters, copper and fiber wiring may be used. Refer to Figure 10-
2. The distance that Review Scopes may be located away from the Server is
determined by the requirements of the specific apparatus used to create the net-
work. The throughput of the extended network must be capable of 10Mbps or
greater.
Note:
High-level interconnecting devices (routers and gateways) and wireless
devices must not be used. The devices used for the extended network
must form an isolated network used exclusively for the Imaging System
network. No other company networks, sub-networks or devices may be
connected to the network.

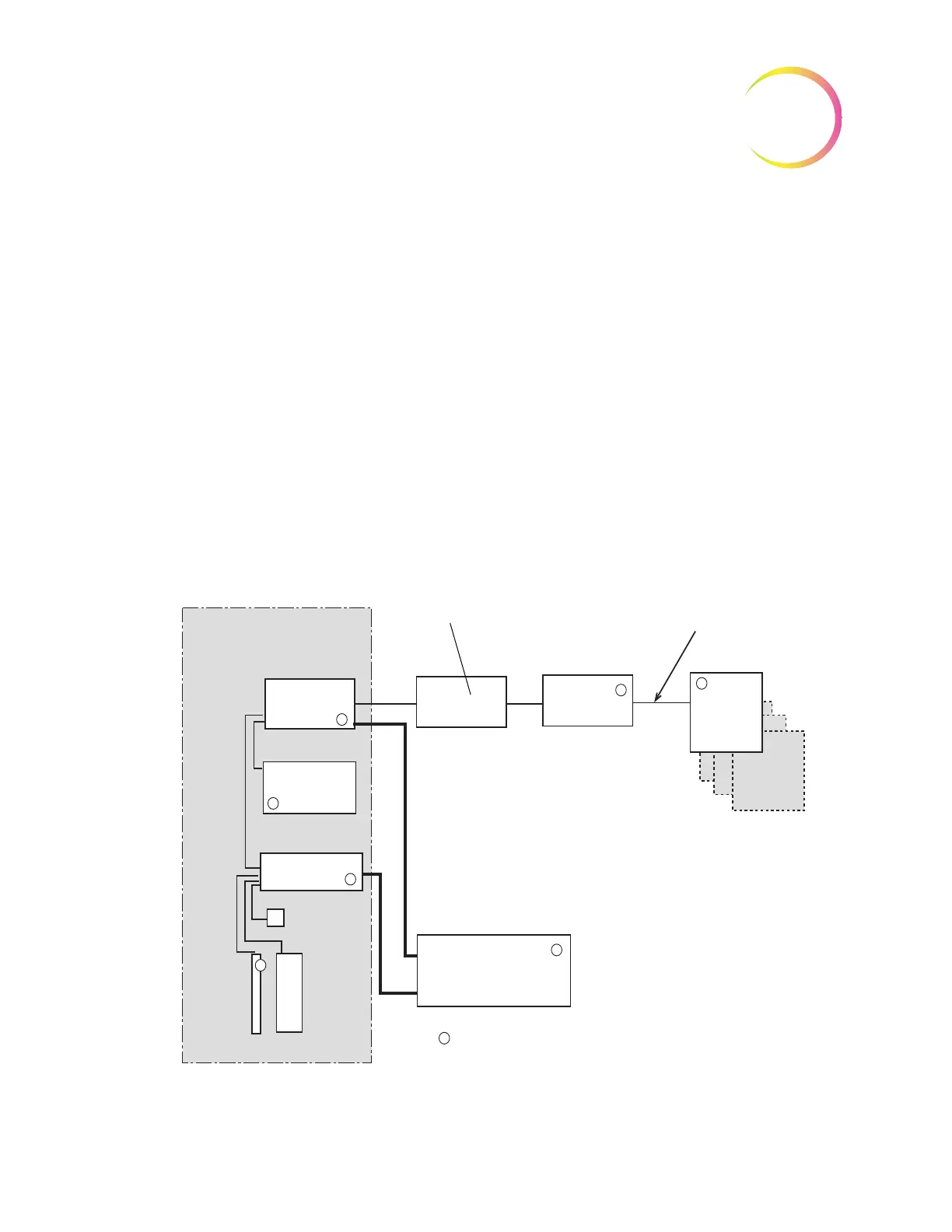

Figure 10-2 Extended Network Interconnection Schematic (Example)
= Power Cord, Requires an Outlet
* May go on the floor, provided there is no dust
accumulation on or around it.
Uninterruptable
Power Supply * and
Battery Backup
Table, Desk or Lab Bench
Monitor
Keyboard
Mouse
Server*
Printer
Switch
Switch
Review
Scope
Review
Scope
Additional Scopes
depending on site
configuration
Network Interconnections
Up to 328 ft/
100 meters
To Next Page
