130 N3680 Decoded Engine User Guide
IMGSHP Modifiers
A - Infinity Filter
Enhances pictures taken from very long distances (greater than 10 feet or 3m). The
Infinity Filter should not be used with IMGSNP Modifiers (page 126).
Example:
C - Compensation
Flattens the image to account for variations in illumination across the image.
Example:
D - Pixel Depth
Indicates the number of bits per pixel in the transmitted image (KIM or BMP format
only).
0A Infinity filter off (default)
1A Infinity filter on

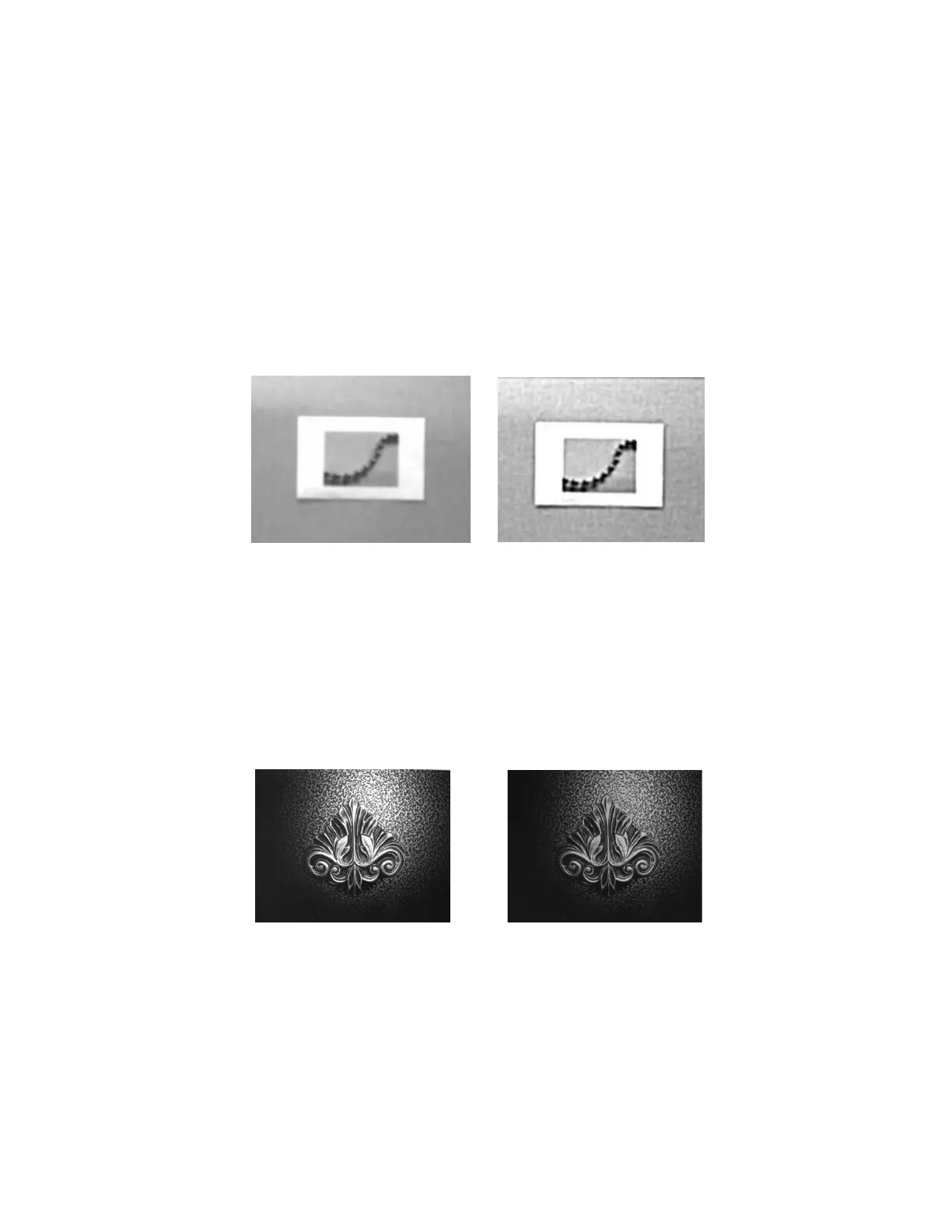

Infinity Filter off (0A)
from approximately 12 feet
(3.66m) away:
Infinity Filter on (1A)
from approximately 12 feet
(3.66m) away:
0C
Compensation disabled (default)
1C Compensation enabled
Compensation at 0C: Compensation at 1C:
8D 8 bits per pixel, grayscale image (default)
