Honeywell Chadwick-Helmuth 8500C - Figure A-11. 8520 C-36 Signal Selector Wiring Diagram

A-26 Chadwick-Helmuth A Business Unit of Honeywell International, Inc.
Appendix A - 8520C-36 Signal Selector
A.4.9 Wiring Diagrams

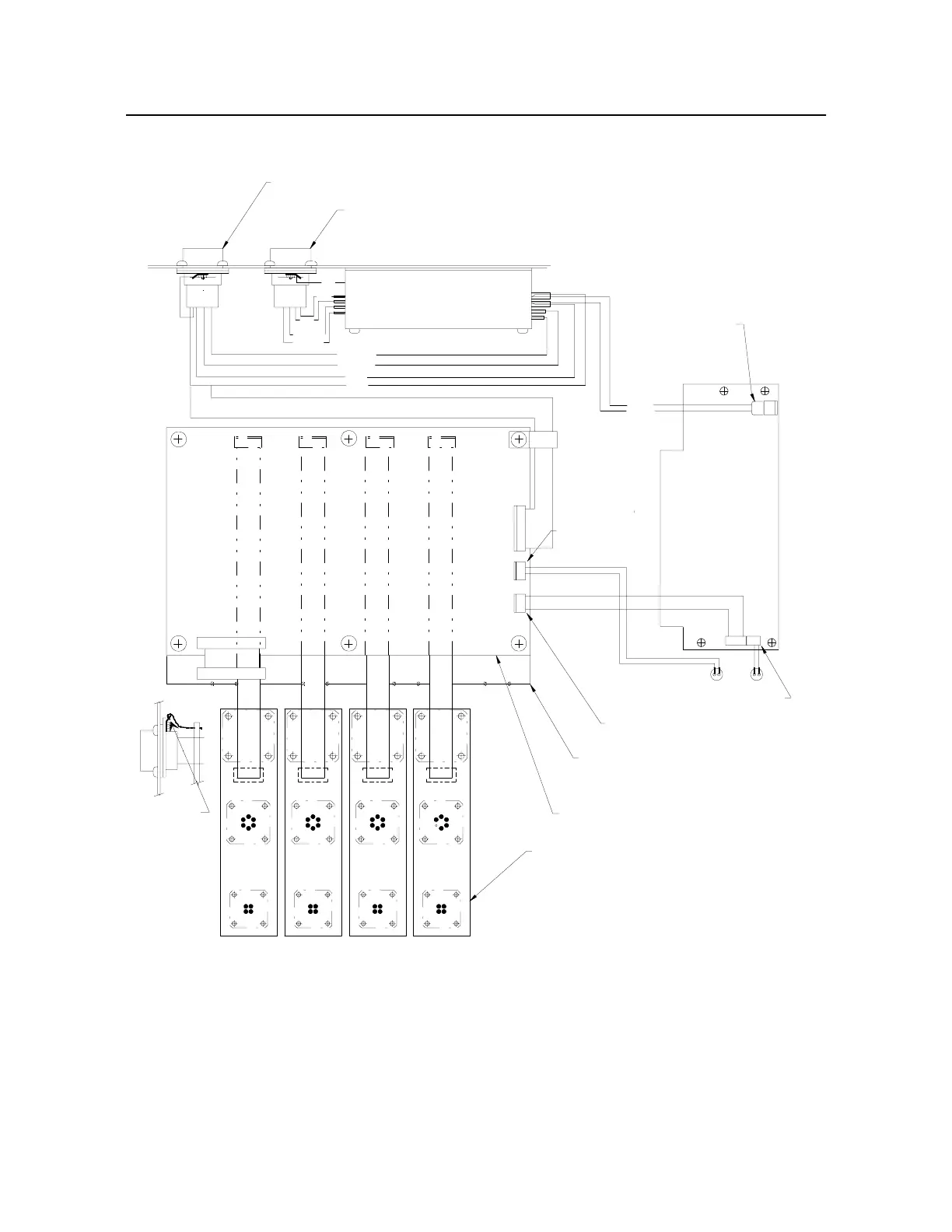

Figure A-11. 8520C-36 Signal Selector Wiring Diagram
EMI FILTER ASSY
CABLE ASSY: DC POWER
J2
BLK
1
2
4
5
3
6
7
9
10
8
BLK
RED
WHT/BLK
WHT/RED
BLK
RED
RED (LONG)
BLK
(SHORT)
J6
J3
J2
A2
POWER SUPPLY ASSY
A1
CONTROLLER ASSY
1
20
J4 J4
20
1 1
20
J4
1
20
J4
A4 PCB ASSY: MUX
A3 PCB ASSY: CONTROLLER
A1 PCB ASSY: CONNECTOR
4 PLACES
CABLE ASSY: OUTPUT/POWER
CABLE ASSY: PWR
SUPPLY/FILTER
CABLE ASSY:
PWR SUPPLY/CONTRLR
CABLE ASSY:
LED POWER
RED (LONG)
CABLE ASSY LED
FILENAME: 11518S2.DRW
GRN
WHT/BLK
WHT/RED
RED
J3
J3 J3
J3
J2 J2 J2 J2
J1 J1
J1
J1
GROUND
LUG
