Mobile Base Components
Adjustable Arm with Suction Cup Base for Windshield Mounting
The Mobile Base includes a two point adjustable arm with a suction cup base for fixed mount locations (e.g., a car windshield).
Power Adapter
The mobile base is provided with a power adapter cable that can be connected to a vehicle cigarette lighter outlet.
UL listed power supply
Input: 10V - 30VDC, 0.43A(30V) - 1.28A(10V)
Output: 4.75V - 5.25VDC, 0 - 2A
Speaker and Volume Control Dial
The integrated speaker amplifies the Dolphin terminal’s audio signals and the speaker volume is adjusted using the dial
located on the side of the base.
Spring Latch
The spring latch secures the terminal in the Mobile Base charging well.
Terminal Charging Well
Place the terminal in this well to charge the battery.
Verify that the power source is always within the specified range and observe correct input voltage polarity. An
improper input voltage range or reverse polarity could damage the power conversion circuitry.

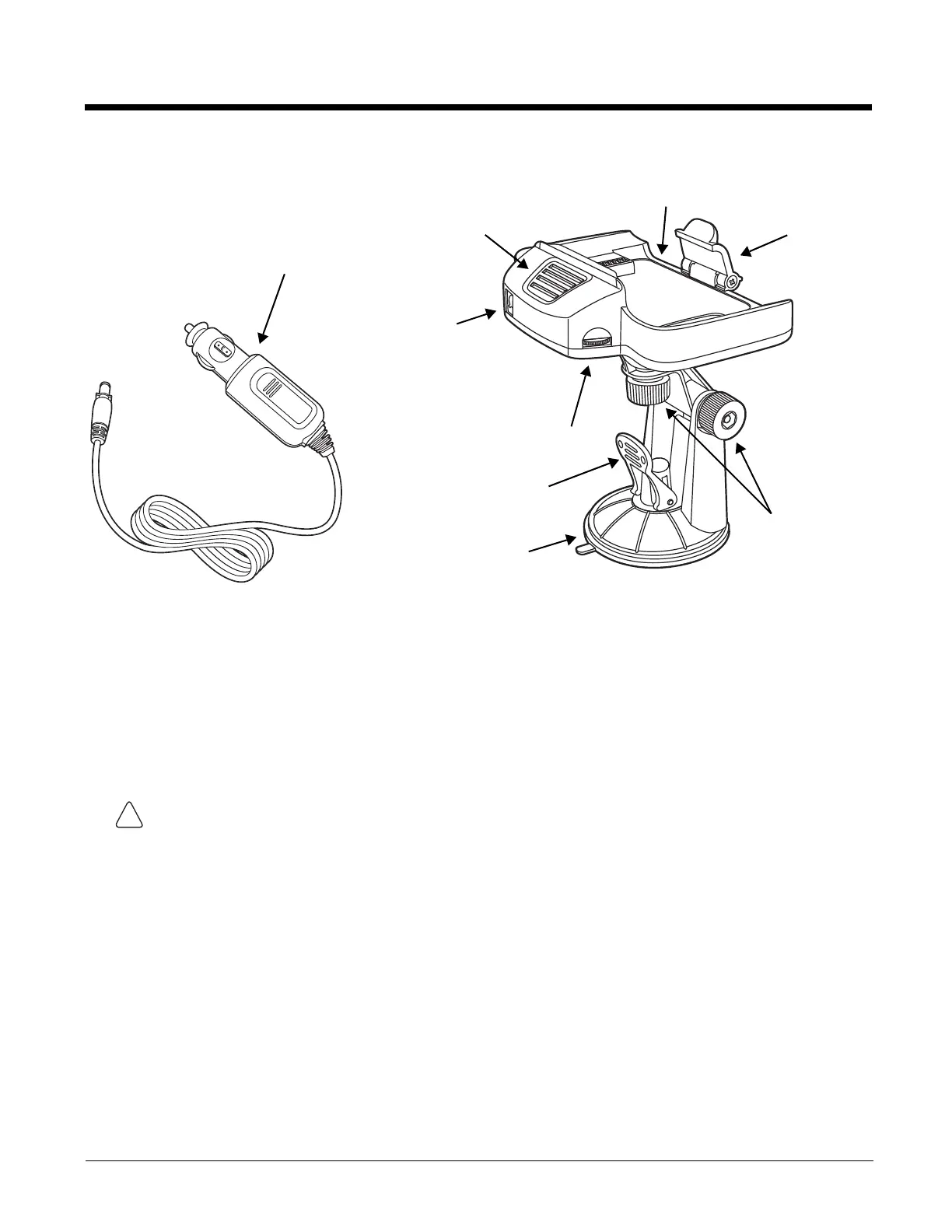

Terminal Charging Well
Power Adapter
Speaker Volume Control
Spring Latch
Speaker
Power Jack
Mounting Lever
Two point Adjustable
Arm
Suction Cup Base
!

Honeywell Dolphin 75e Specifications

General

Display diagonal	4.3 \
Display resolution	480 x 800 pixels
Speakers	stereo
Flash memory	16 GB
Internal memory	0.002 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Processor family	Qualcomm
Processor frequency	2.26 GHz
Bundled software	Honeywell Powertools and Demos
Operating system installed	Android 4.4.4
Data network	Not supported
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Security algorithms	EAP-TLS, EAP-TTLS, WEP, WPA2-PSK
Rear camera resolution (numeric)	8 MP
I/O ports	Micro USB, headphone/mic combo jack
Headphone connectivity	3.5 mm
Product color	Black, Orange, Silver
Phone function	No
International Protection (IP) code	IP67
Battery capacity	1670 mAh
Battery life (max)	6 h
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	134 mm
Width	73 mm
Height	18 mm
Weight	204 g
