Honeywell Dolphin 75e User Manual

2 - 8
Power Button
The Power button , located on the top of the terminal, initiates multiple functions depending on the length of time the
button is pressed. For information about how use the button to:
• Turn Power On or Off, see page 1-11.
• Turn Sleep (Suspend Mode) On or Off, see page 1-11.
• Restart the terminal if the touch screen is unresponsive, see page 1-13.
Volume Control Button
Press the top or bottom of the volume button to raise or lower the volume of the active speaker. Lower the volume all the
way down to turn off the volume and enable vibration only mode.
The status bar briefly expands when you press either the volume up or down button. Touch the to expand the bar and
access the volume adjustment slider for either the ringer and notifications or media and apps.
The I/O Connector
The I/O connector powers the terminal, charges the main battery, and facilitates communication. Dolphin 70e Black peripherals
are designed to work exclusively with this connector. The I/O connector supports low, full, and high speed USB v2.0
communication with a maximum rate of 480 Mbps.
Note: Signals referenced are for a DTE device.
Battery
The primary power source for the Dolphin terminal is the 3.7V Li-ion rechargeable battery located under the battery door on the
back panel of the device. Honeywell recommends, you keep the battery in the terminal charged at all times to help prevent data
loss. Letting the battery become fully discharged causes the terminal to lose all data in RAM.
Note: All data in RAM is cleared when the battery is removed. Always power off the terminal before removing the battery to
ensure any changes made are saved to the flash memory.
Replacement Battery Specifications
Dolphin 75e model terminals are designed for use with battery part numbers BAT-STANDARD-02 (Li-ion 3.7V, 6.179 watt
hour) and BAT-EXTENDED-02 (Li-ion 3.7V, 12.358 watt hour) manufactured for Honeywell International Inc. For information
on how to replace the battery, see page 1-12.

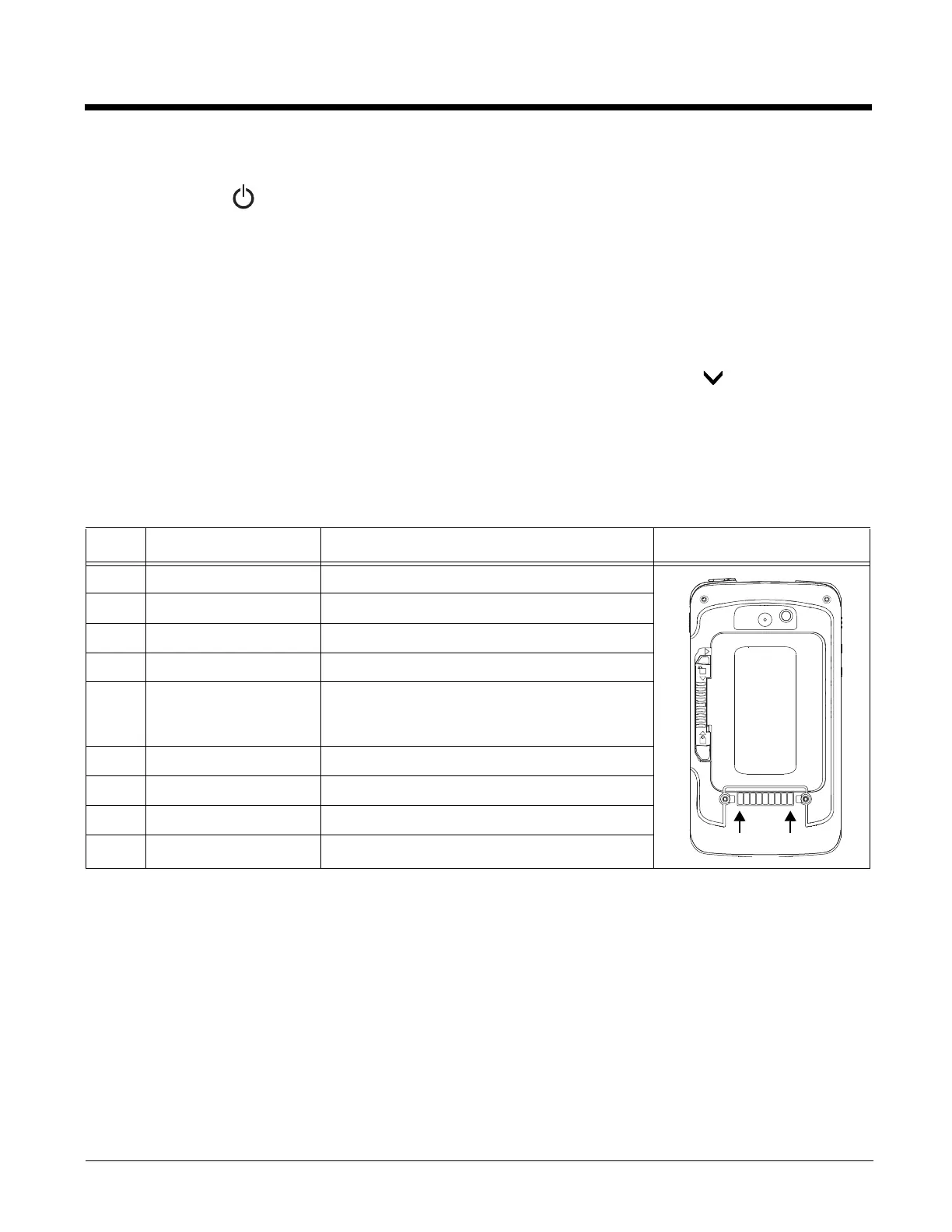

Pin Signal Description Terminal Back Panel
1 VDC_IN 5V DC input for charging and operation
2 VBUS_HOST 5V output for USB host and peripheral power
3 USB_DM_HOST USB D- for the host port
4 USB_DP_HOST USB D+ for the host port
5 USBC_DET Multipurpose pin to allow for detection of an
unpowered SLED, determine SLED type, and to
signal a HomeBase the docking of the terminal.
6 GND Ground connection
7 USB_DN_DOCK USB D- for the client port
8 USB_DP_DOCK USB D+ for the client port
9 VBUS_DOCK 5V input for USB client (and charging)
Pin 9 Pin 1

Honeywell Dolphin 75e Specifications

General

Display diagonal	4.3 \
Display resolution	480 x 800 pixels
Speakers	stereo
Flash memory	16 GB
Internal memory	0.002 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Processor family	Qualcomm
Processor frequency	2.26 GHz
Bundled software	Honeywell Powertools and Demos
Operating system installed	Android 4.4.4
Data network	Not supported
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Security algorithms	EAP-TLS, EAP-TTLS, WEP, WPA2-PSK
Rear camera resolution (numeric)	8 MP
I/O ports	Micro USB, headphone/mic combo jack
Headphone connectivity	3.5 mm
Product color	Black, Orange, Silver
Phone function	No
International Protection (IP) code	IP67
Battery capacity	1670 mAh
Battery life (max)	6 h
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	134 mm
Width	73 mm
Height	18 mm
Weight	204 g
