Honeywell Dolphin 75e User Manual

11 - 3

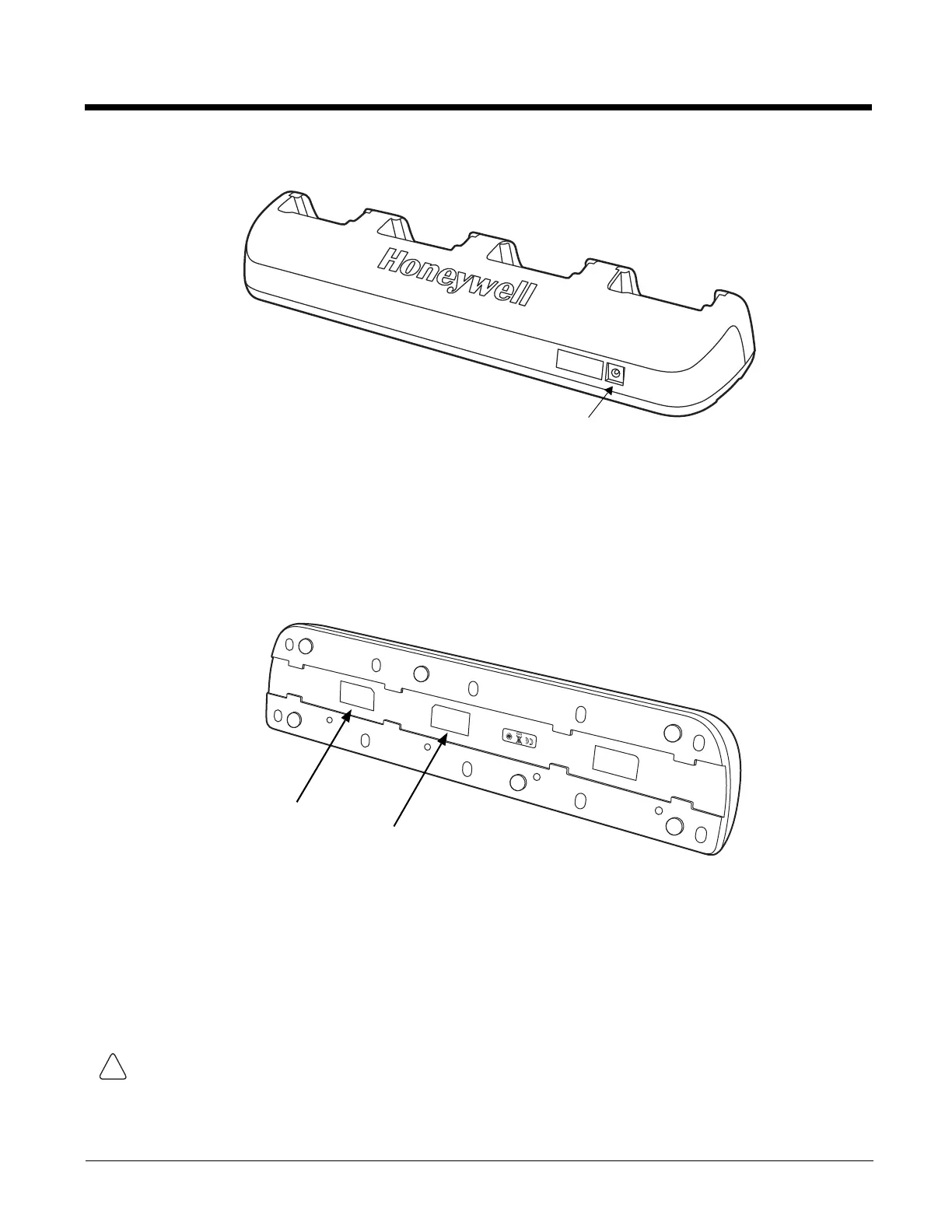

Back Panel
Power Supply Connector
This connector receives input from the power adapter. Plug the power connector cable from the power adapter into this
connector.
Bottom Panel
For details on how to mount the base, see Mounting the ChargeBase on page 11-4.
Power
The terminal requires 12 Volts DC input for battery charging and power output to the terminal. The power adapter included with
the base, converts the voltage from the AC power source to 12 volts DC. Use only a UL Listed power supply, which has been
qualified by Honeywell with output rated at 12VDC and 5 amps with the device. The operating temperature range is -10° to
50°C (14° to 122°F).
Honeywell recommends that you leave the ChargeBase connected to its power source at all times, so that it is always ready to
use.
We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell
peripherals, cables, or power adapters may cause damage not covered by the warranty.
Power Supply Connector
Serial Number Label
Compliance Label
!

Honeywell Dolphin 75e Specifications

General

Display diagonal	4.3 \
Display resolution	480 x 800 pixels
Speakers	stereo
Flash memory	16 GB
Internal memory	0.002 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Processor family	Qualcomm
Processor frequency	2.26 GHz
Bundled software	Honeywell Powertools and Demos
Operating system installed	Android 4.4.4
Data network	Not supported
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Security algorithms	EAP-TLS, EAP-TTLS, WEP, WPA2-PSK
Rear camera resolution (numeric)	8 MP
I/O ports	Micro USB, headphone/mic combo jack
Headphone connectivity	3.5 mm
Product color	Black, Orange, Silver
Phone function	No
International Protection (IP) code	IP67
Battery capacity	1670 mAh
Battery life (max)	6 h
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	134 mm
Width	73 mm
Height	18 mm
Weight	204 g
