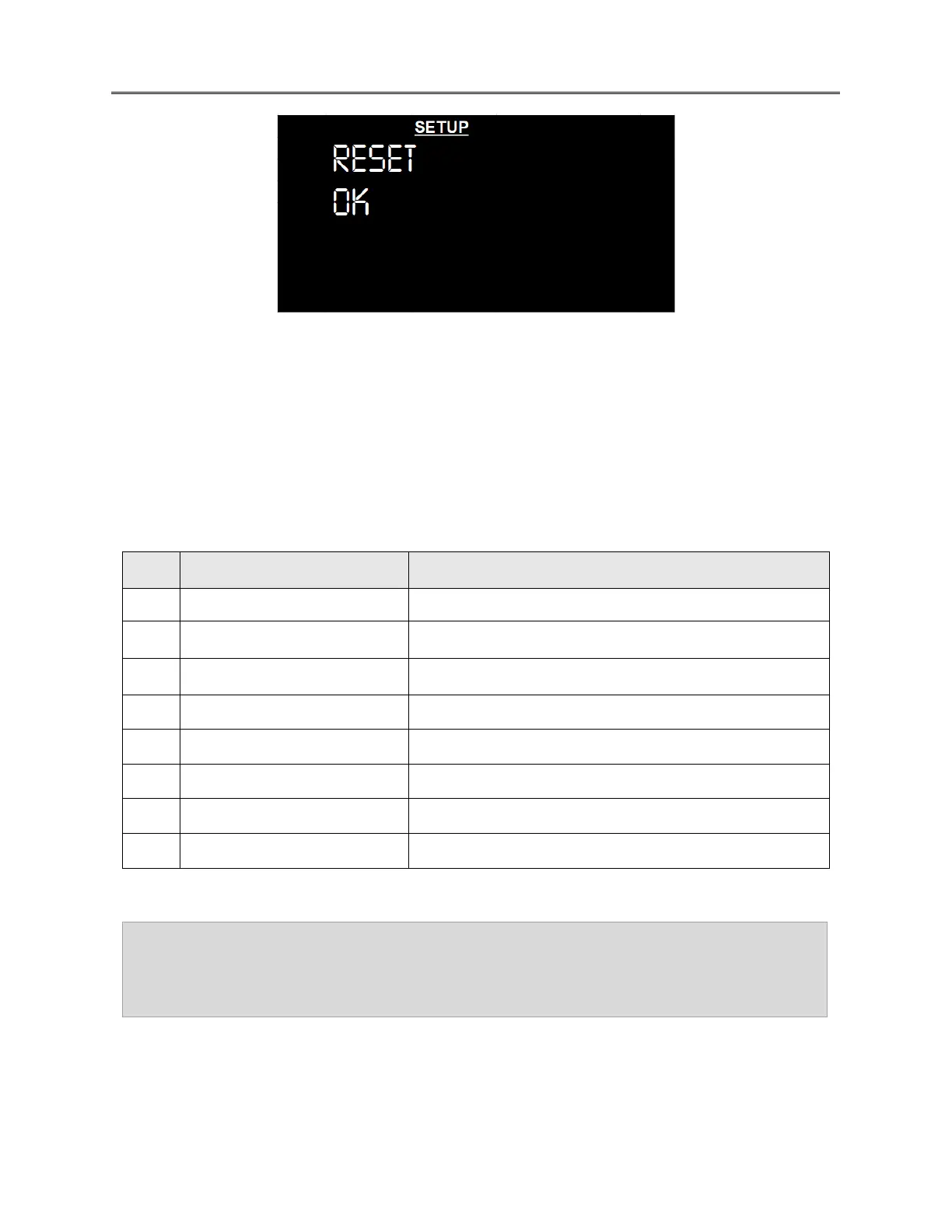

Front Panel Display & Navigation
E-Mon® Series - Global User Manual
54-000-01-ENG01-0121
Page | 51
2. System This menu provides setup option for the setting system connection type.
Navigate to the Setup menu option and select the menu items using the up/down button
to highlight list items. Use this option to configure the type of connection as per the
network topology.
Follow the steps mentioned below to perform the system setup:
i. Go to the Setup menu as per navigation instructions provided in section 4.3.
ii. Press the SET button to enter the menu options.
iii. Select an appropriate network connection from the list using up/down button.
iv. Press SET to save the connection type.
SN
Menu option
Connection type
1
3P4W
3 phase 4 wire
2
3P3W
3 phase 3 wire
3
P1+N
Phase 1 and Neutral
4
P2+N
Phase 2 and Neutral
5
P3+N
Phase 3 and Neutral
6
P1-P3+N
Phase 1, Phase 3 and Neutral
7
P2-P3+N
Phase 2, Phase 3 and neutral
8
P1-P2+N
Phase 1, Phase 2 and neutral
Table 7. System Setup
3. Frequency The nominal frequency can be set using this option. Go to the Setup menu
and toggle through the menu options to select the ‘Frequency option and press SET to
enter the menu.
CAUTION!
Use this option carefully, ensure the correctness of network connection and other
system settings.
