Front Panel Display & Navigation
E-Mon® Series - Global User Manual
54-000-01-ENG01-0121
Page | 55
iii. Select an option from ‘System’, ‘Phase 1’, ‘Phase 2’, ‘Phase 3’ and press SET to enter
an option.
iv. Use Up/Down buttons to select an option and press SET to save.
a. System - Navigate to the options available and select the appropriate system direction
using the navigation buttons. Press SET button to set the direction.
▪ In
▪ Out

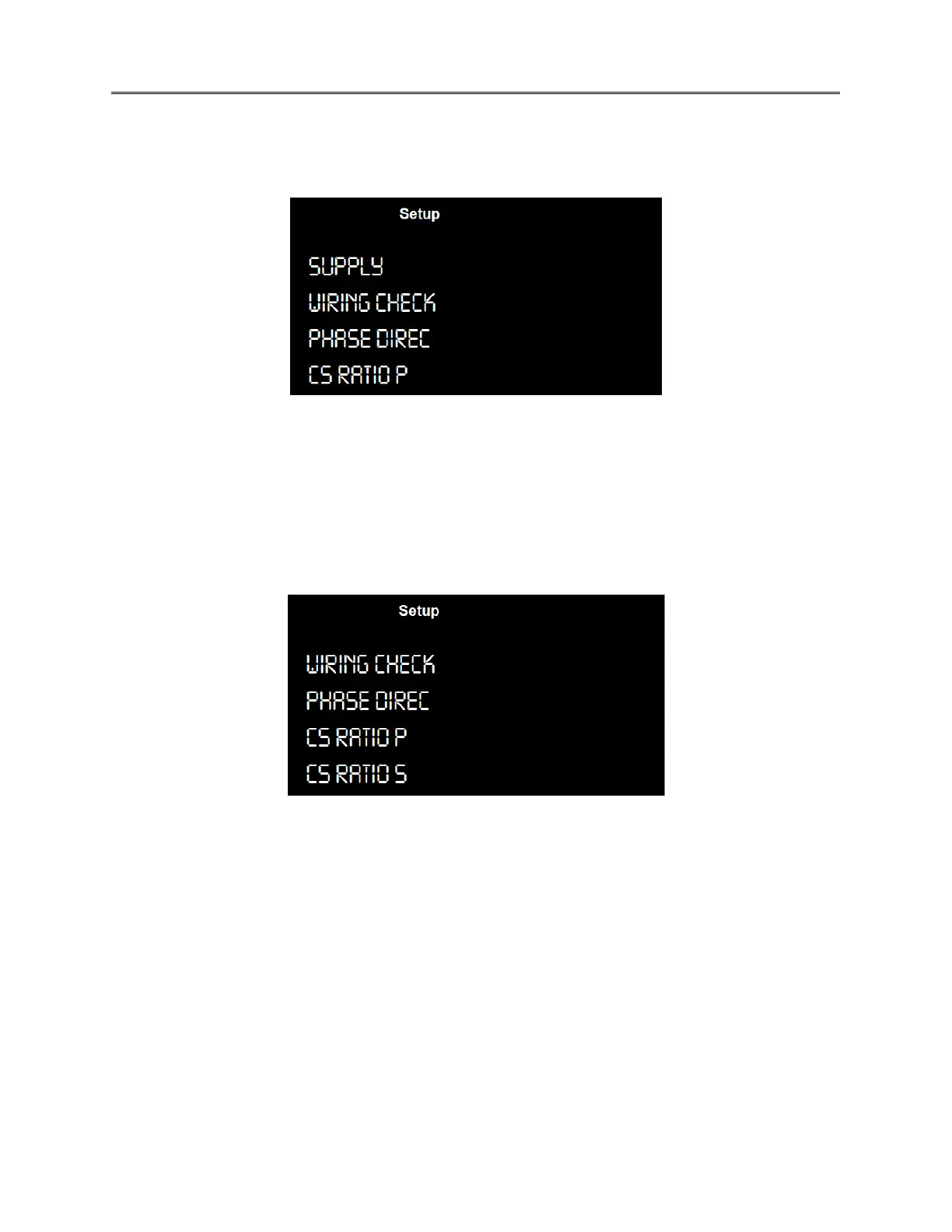

7. CS Ratio Setup – The CS rating settings is available in the Setup menu. Toggle through
the Setup menu to highlight the ‘CS Ratio Primary’ or ‘CS Ratio Secondary’ and press SET
button to enter the CS ratio.
a. Primary
i. Go to setup menu and use the up/down navigation button to scroll through the
menu options.
ii. Select ‘CS Ratio Primary’ and press the SET button.
iii. The current value setup screen with 00 value appears on the screen.
iv. Set the value using Up/Down buttons as per the specifications of the CS.
v. Press SET to save the value.
