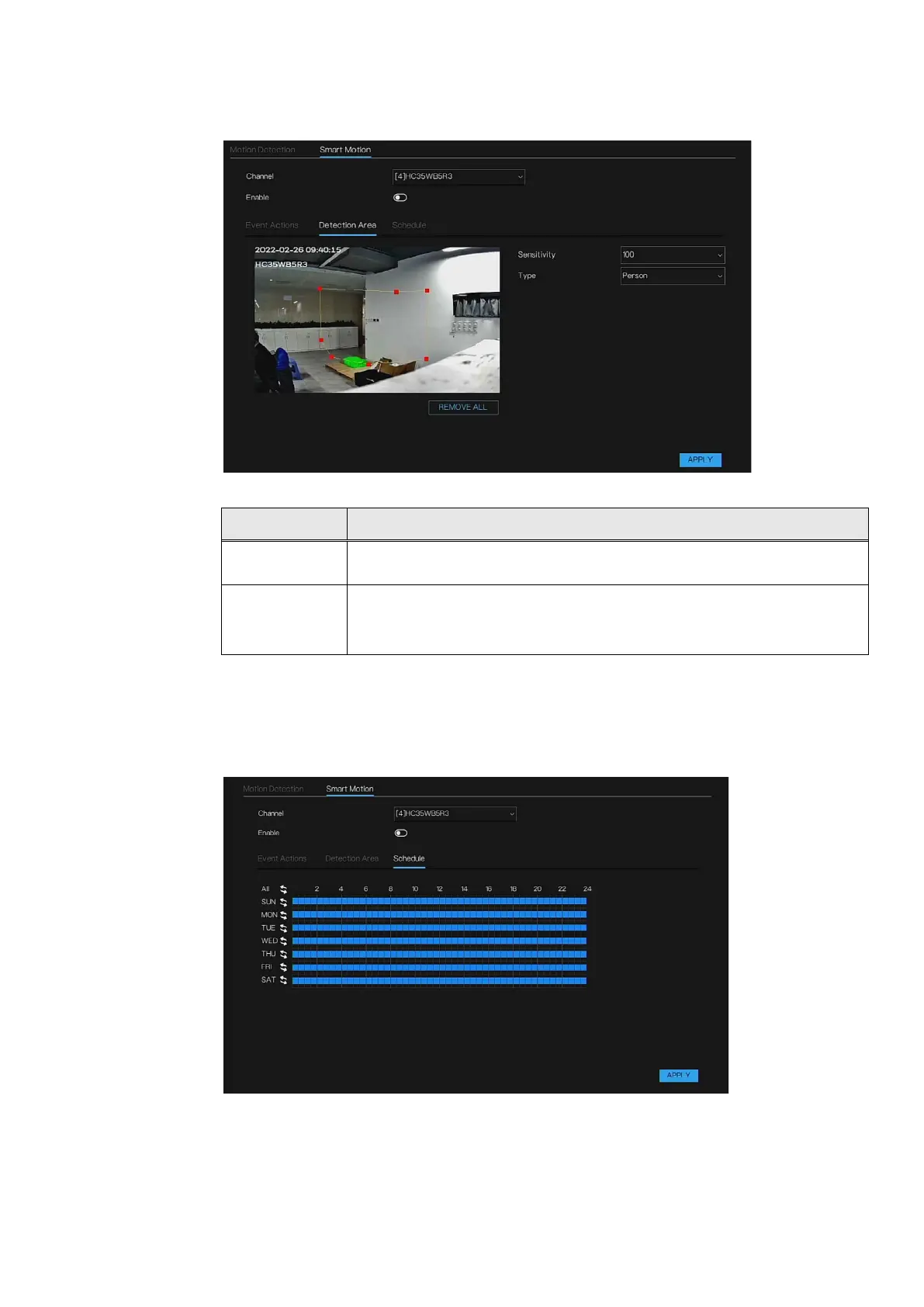

Figure 62 Smart Motion – Detection Area

Table 18 Detection Area Setting Parameters

Parameter Description

Sensitivity

Every region of every channel has an individual sensitivity value. The range is

0-100.The bigger the value is, the easier the alarms can be activated.

Type

Person: only detects people

Car: only detects cars

Person or car: detects person and car at the same time

Setting Smart Motion Schedule

To configure the schedule of smart motion’s, refer to Setting Schedule.

Figure 63 Smart Motion – Schedule
