Honeywell 35 Series Network Video Recorder User Guide

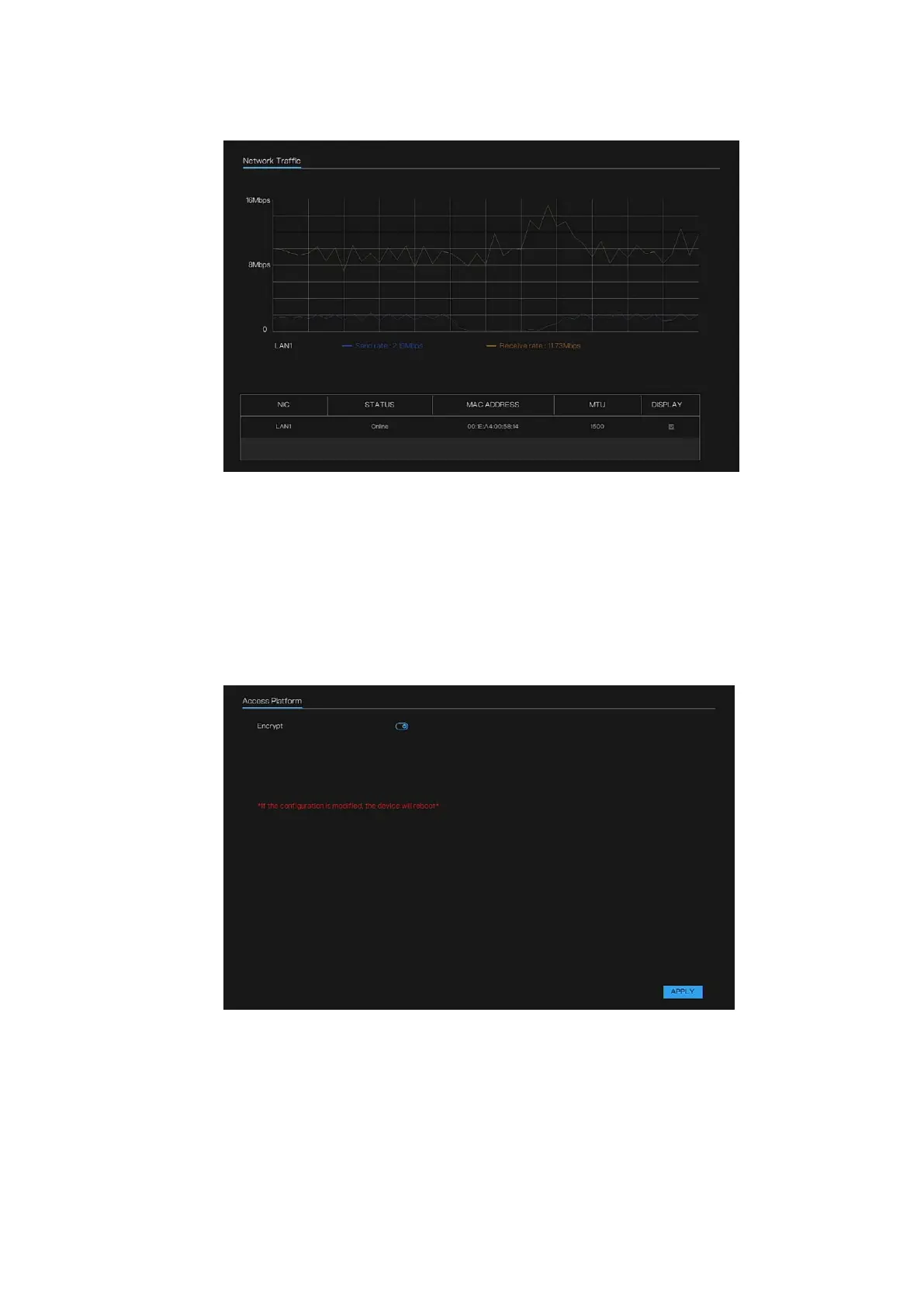

Figure 91 Network Traffic Interface

Access Platform

The NVR can access to HSV platform, enable to encrypt the connection.

1. Go to Main Menu > Networks > Access Platform.

The Access Platform interface is displayed.

Figure 92 Access Platform Interface

2. Encrypt the device, when you add the NVR to HSV platform, choose

the private protocol(encrypt).

3. Click APPLY to save the settings.
