Configuration
Rev 3.01 51 Document 900.0258
10/05
Alarm In Event Action (Alarm Out) Setup Screen
Use this screen to set how the DVR reacts to events differently by activating an internal
buzzer or external alarms.

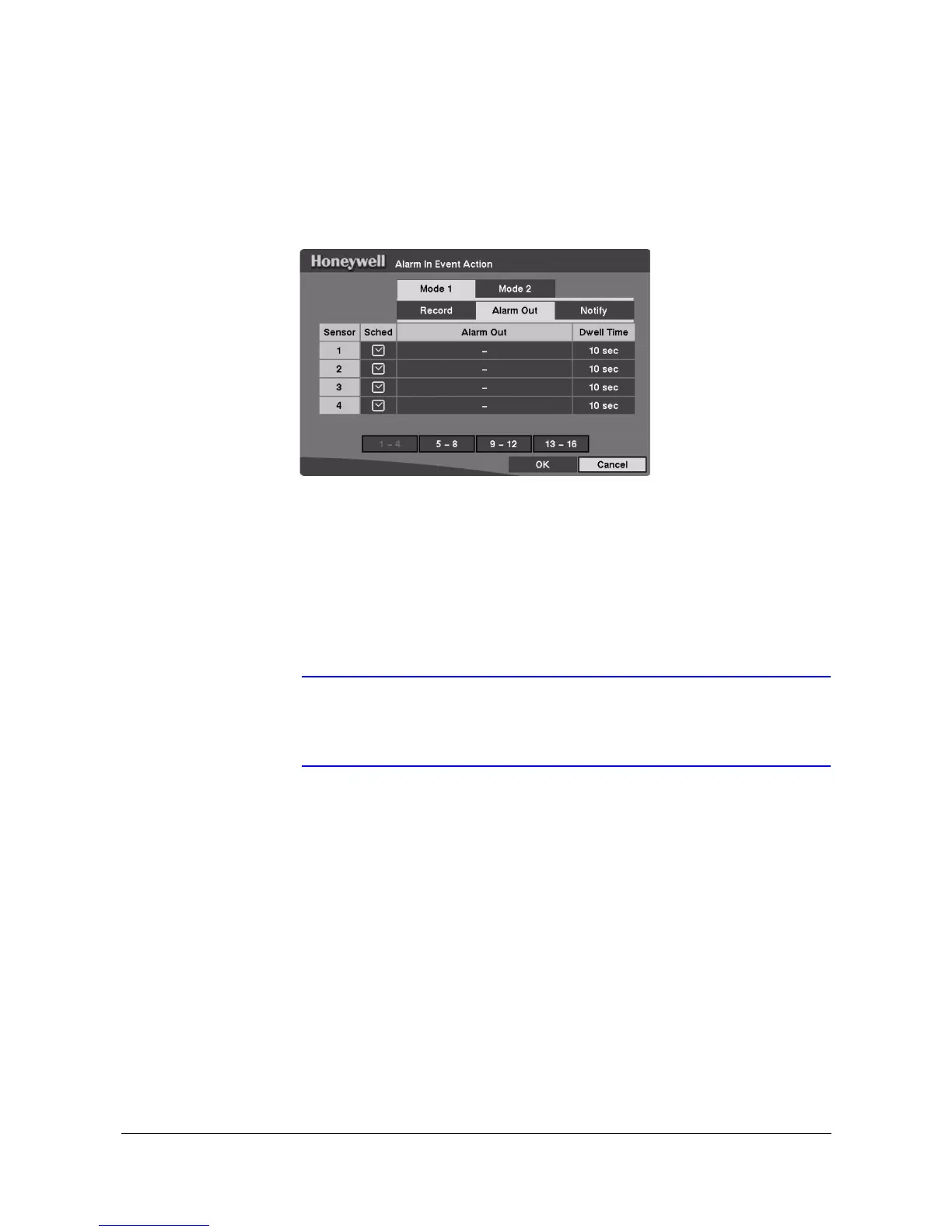

Figure 3-32 Alarm In Event Action (Alarm Out) Setup Screen
1. Highlight the Sched box and then press # . A schedule screen displays. Set the
schedule as described earlier.
2. Highlight the Alarm Out box and select Beep and/or the alarm output terminal
that you want to associate with the sensor.
3. Highlight the Dwell Time box and set the length of time you want the output
activated.
Note When setting the dwell time to 0 sec, the alarm output will be
activated throughout the sensor activation period, and inactive
while the sensor is inactive.
