Configuration
Rev 3.01 57 Document 900.0258
10/05
Video Loss Event Action (Alarm Out) Setup Screen
The DVR can be set to react to video loss differently by activating an internal buzzer or
external alarms.

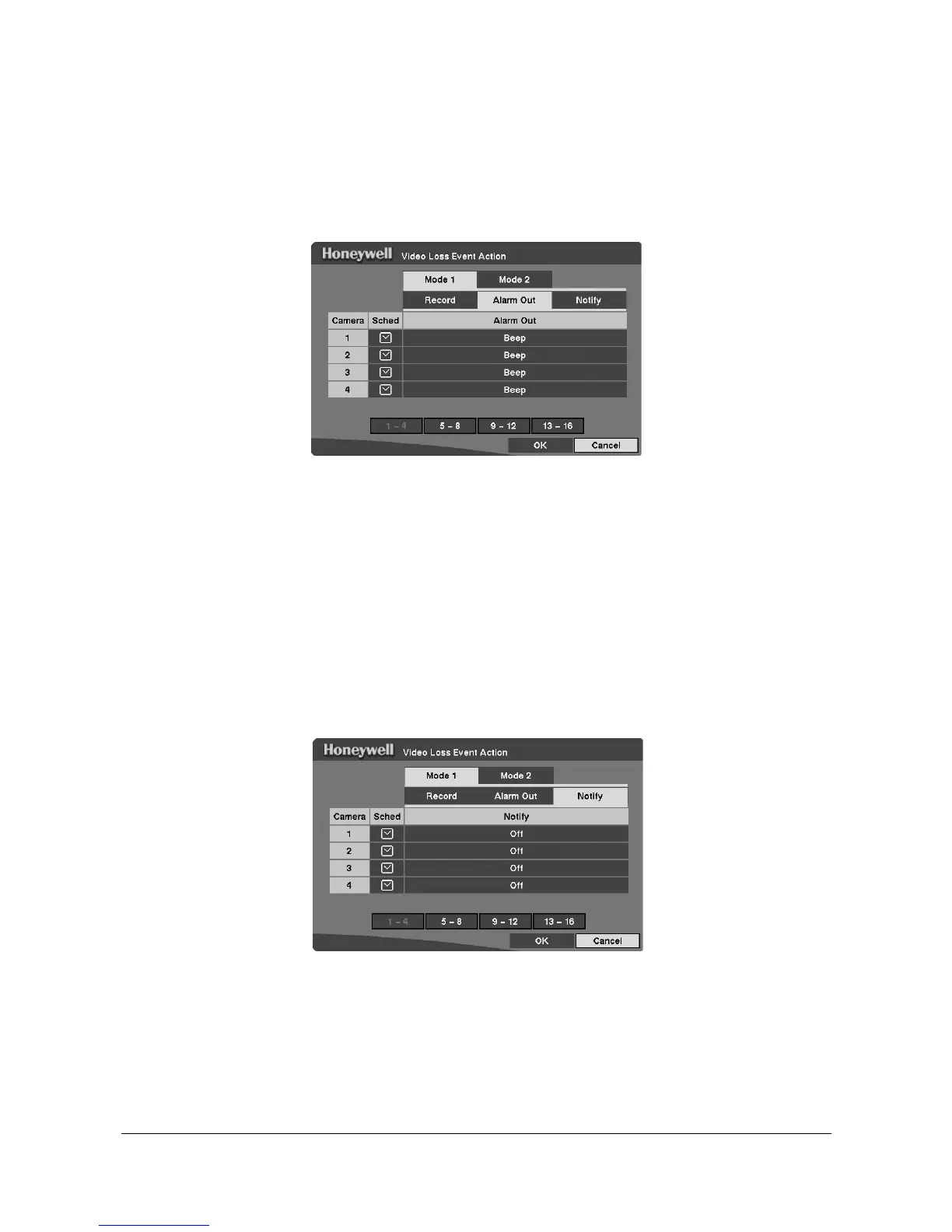

Figure 3-38 Video Loss Event Action (Alarm Out) Setup Screen
1. Highlight the Sched box and then press # . A schedule screen displays. Set the
schedule as described earlier.
2. Highlight the Alarm Out box and select Beep and/or the alarm output terminal
that you want to associate with the camera that has lost video.
Video Loss Event Action (Notify) Setup Screen
Use this screen to set the DVR to notify the remote site in the case of video loss.
Figure 3-39 Video Loss Event Action (Notify) Setup Screen
1. Highlight the Sched box and then press # . A schedule screen displays. Set the
schedule as described earlier.
2. Highlight the Notify box and then press # . This toggles between On and Off.
When it is On, the DVR notifies the remote site when it loses video input from a
camera based on a defined schedule.
