MAx panel Fire Detection System
14 M-167.3-Serie-MA-EN / 11.2021
2 UTILITY MENU
Selecting UTIL from the main system screen will take you to the Utility menu, which includes some functions
generally used by servicing personnel.
To access the menu, enter the level 3 password (33333 is the default password). To enter the password, refer to
the editing function previously mentioned in the description of the keyboard operation.

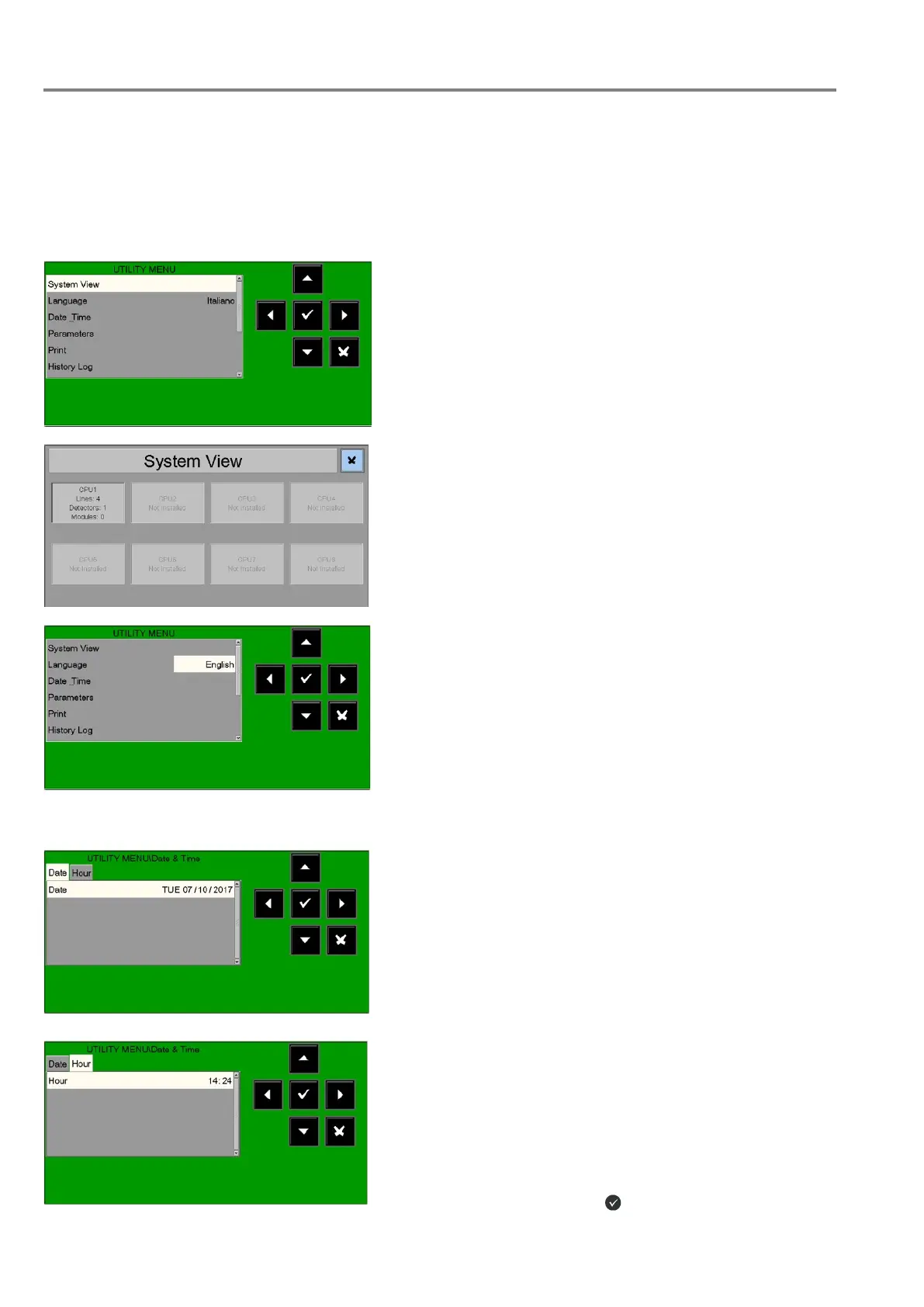

The following menu is displayed:
UTILITY – System View: displays the system CPU configuration.
- Language:
it is possible to select different system
languages from the available
options.
UTILITY - Date & time: this function allows you to set the time and date of the control unit.
Date & time” tabs, use the arrows
to
select the field to be changed (the characters of the selected field
are white on
a dark background).
buttons to change the value.
When you have
finished, press the enter button to save the value.
