4 UTILITY - VIEW/MODIFY STATUS
This function allows you to examine the status of a point and, in the case of a detector, the analogue value can
also be displayed. This value will be displayed as a percentage with respect to the alarm threshold programmed
for that device.
Parameters relevant to modules, zones or software groups that have been programmed can also be displayed.

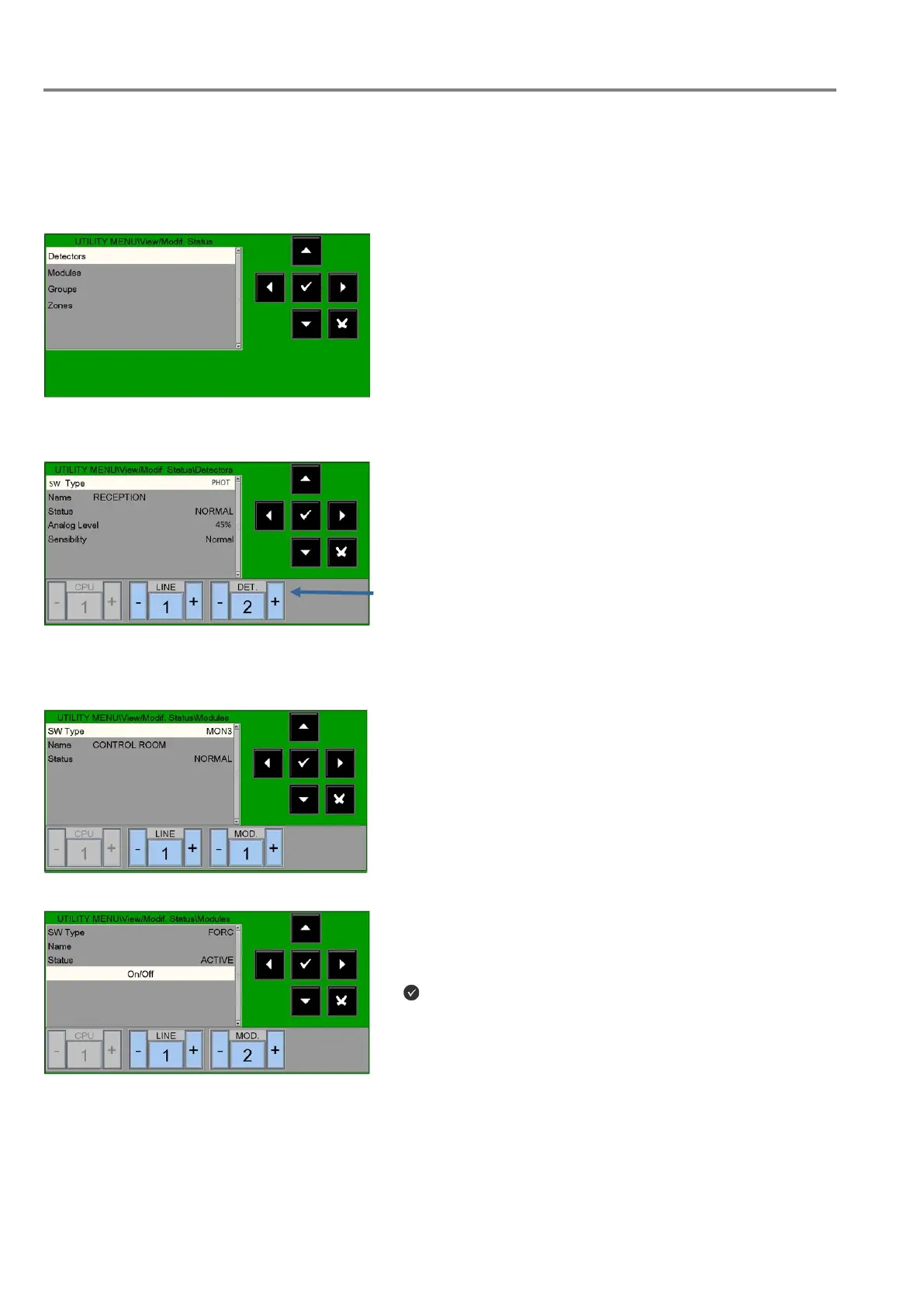

Detector status
The display shows the first device of the first line by default. To select another device, use the function buttons.
Module status depends on module type (
input or output).
- LINE or + LINE to display previous/next Line
- DET. or +DET.
to display previous/next detector.
Module Status
The display shows by default the first device of the first line. To select another device, use the function buttons.
Module status depends on module type (Input or Output)
Modify the output status of a control module
After selecting the
“On/Off” field using the arrow buttons
user can switch the control module output by
button.
This action is indicated as:
