Installing the MPA2 Panels
Installation
MPA2 Access Control Unit Installation Guide, Document 800-25395 - B 35

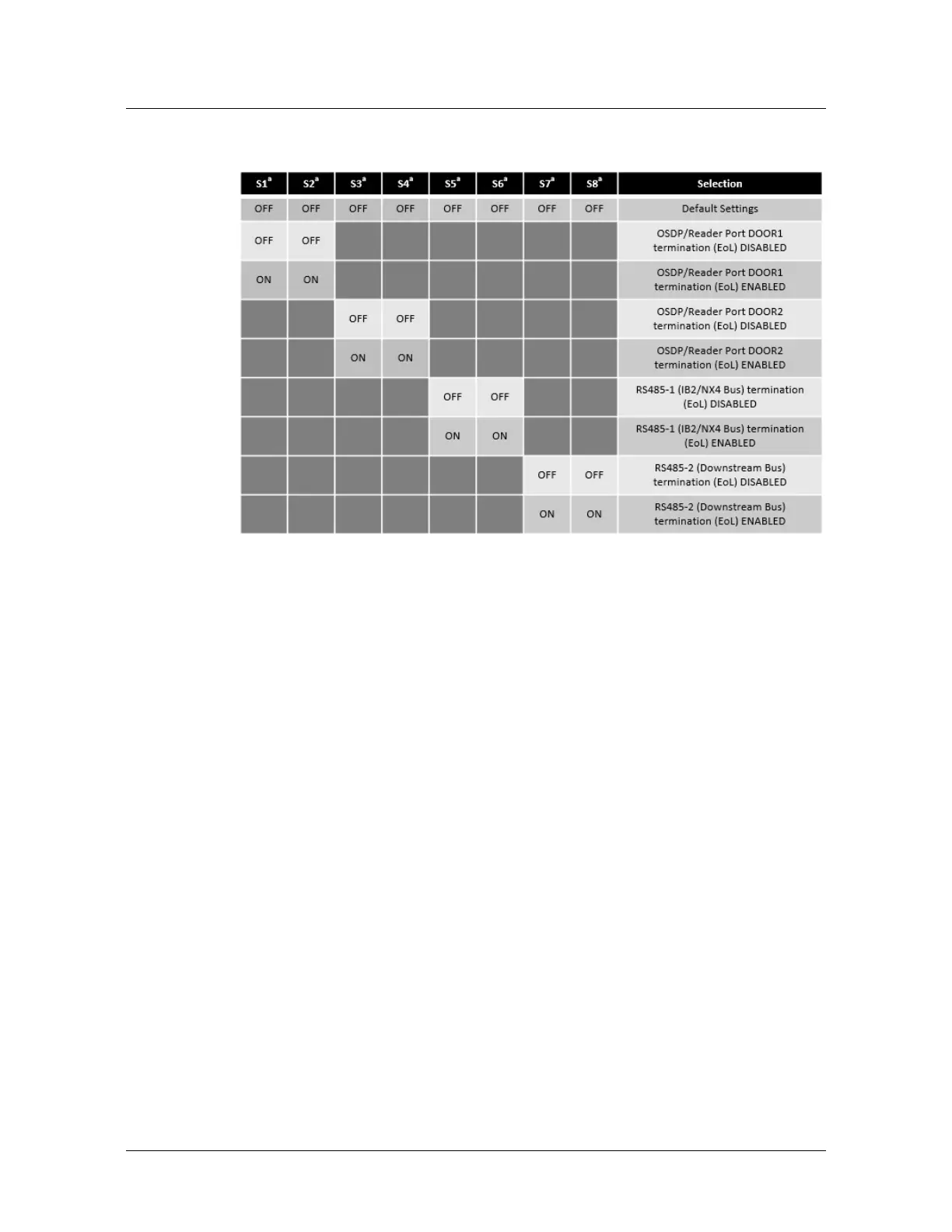

Table 8 MPA2 S1 DIP Switch (1-8) Settings
Both DIP Switches need to be either ON or OFF to be properly configured.
Note: When you use the DIP switches to reset a panel to the original factory
default values, the Event History is lost and any customized databases are
removed, so the panel is reset with the original factory default database.
This does not affect the Ethernet IP address.
You can also use this ASCII command:
_I=pn_R
This command resets the panel to the original factory default values, but it
only removes the customized databases and restores the original factory
default database. The Event History is retained.
To reset the panel to the factory default values:
1. Make a note of the existing settings on SW1 and S1 DIP switches.
2. While the panel is powered up, turn all SW1 DIP switches to the OFF
position.
3. Power down, then power the panel back up.
4. Wait for the panel to come up. The RUN LED should flicker fast.
5. Set the DIP switches back to their original positions.
6. Power down, then power the panel back up.
7. After the panel comes up, the RUN LED should flash normal.
The panel is now reset to the original factory default values.
Note: Address 0 is not a valid setting.
