20 Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017
Wiring Requirements Control Panel Terminal Blocks
2.4.2 NFS2-640 with Loop Expander Modules, NFS-320 and NFS-320SYS
The NFS2-640 provide one SLC loop and supports a second using optional expander module LEM-320. The NFS-320 provides one SLC
loop on the FACP’s main circuit board. Terminal block designations are the same on the circuit board for both FACPs. Loops can be
either CLIP mode or FlashScan mode. The SLC loop #1 connects to TB13 on the control panel. SLC loop #2 connects to TB1 on the
LEM-320.
2.4.3 NFS-640 with Loop Expander Modules
The NFS-640 provides one SLC loop and supports a second using optional expander module LEM-320. Loops can be either CLIP mode
or FlashScan mode. SLC loop #1 connects to TB16 on the control panel; SLC loop #2 connects to TB1 on the LEM-320.
2.4.4 AFP-100
The AFP-100 supports one SLC loop; the loop is CLIP mode only. The SLC loop connects to TB6.
2.4.5 AFP-200
The AFP-200 supports one SLC loop; the loop is CLIP mode only. The SLC loop connects to TB5.
SLC Loop #2 Connections
on Loop Expander Module
SLC Loop #1 Connections
on FACP’s main circuit board
NFS2640-SLC-TB.wmf,
LEM320-SC-tb.wmf

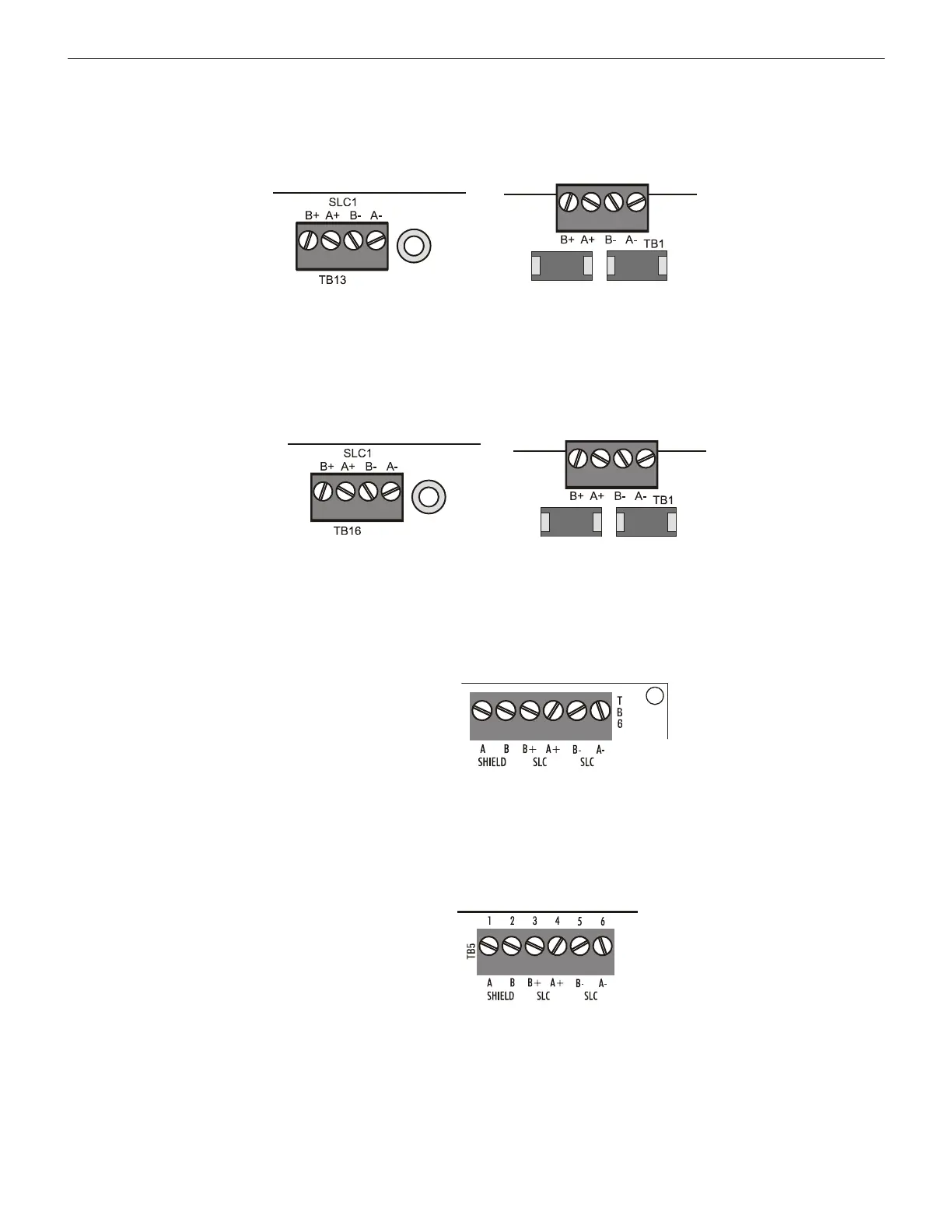

Figure 2.6 SLC Loop Connections and Wiring for NFS2-640, LEM-320, and NFS-320
SLC Loop #2 Connections
on Loop Expander Module
SLC Loop #1 Connections
on FACP’s main circuit board
nfs640-slc-tb.cdr
LEM320-slc-tb.wmf
Figure 2.7 SLC Loop Connections and Wiring for NFS-640 and LEM-320
SLC Loop Connections
on FACP’s main circuit board
slc-100.wmf
Figure 2.8 SLC Connections for AFP-100
SLC Loop Connections
on FACP’s main circuit board
slc-200.wmf
Figure 2.9 SLC Connections for AFP-200
