Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 49
Wiring a Detector Base Intelligent Detectors, Intelligent Detector Bases, and Wireless Gateway
10.2 Wiring a Detector Base

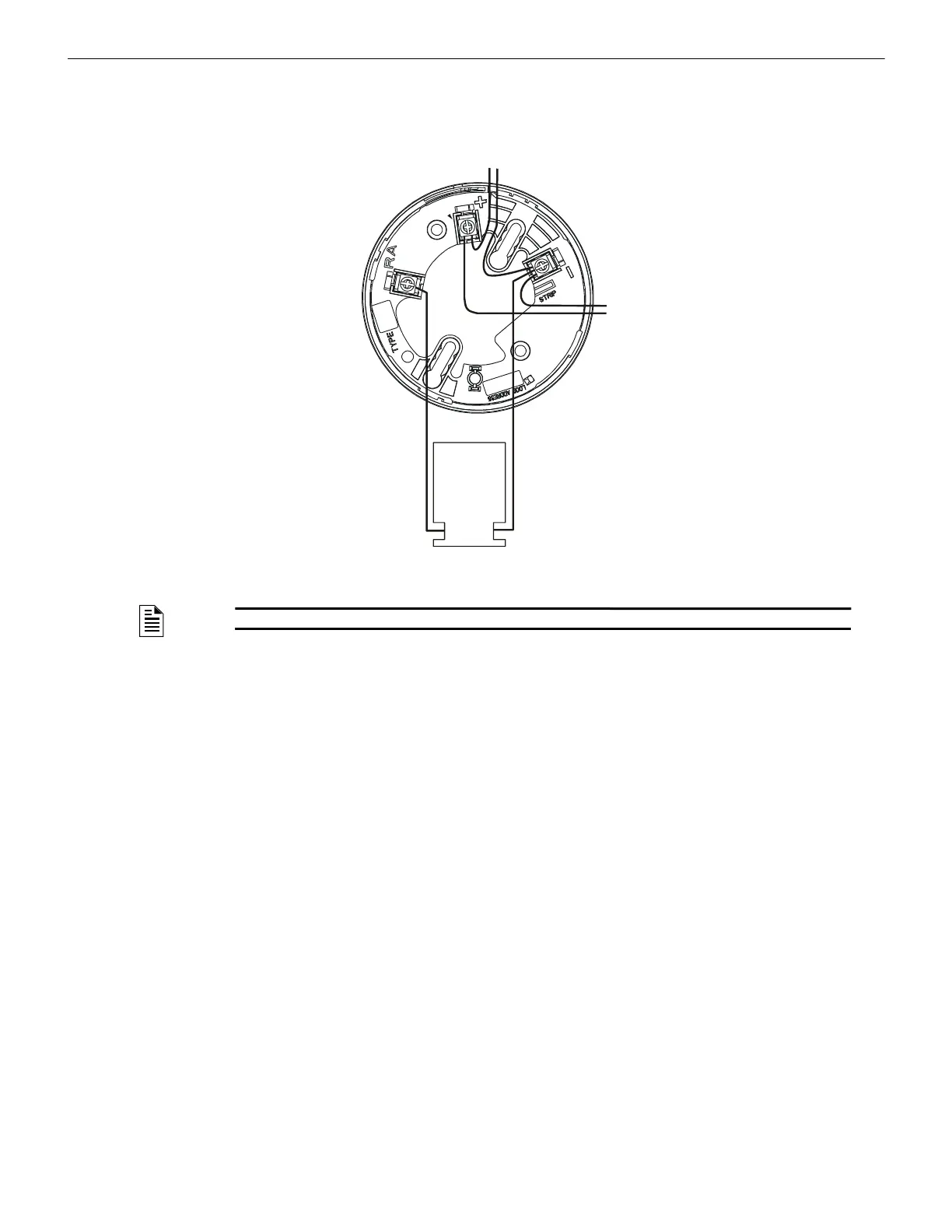

Figure 10.1 shows typical wiring of a standard detector base (B501 is shown) connected to an SLC. An optional RA100Z Remote LED
Annunciator is shown connected to the base.
NOTE: The base wiring is identical for the flanged B300-6, B210LP, flangeless B501, and -BL and -IV variants.
+ –
+ –
–
+
SLC-B501wire.wmf
RA100Z
Remote LED
Annunciator
(Optional)
Figure 10.1 Wiring Detector Base B300-6/-IV, B210LP, or B501
To Next
Device on
SLC
From Control Panel SLC
