Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 69

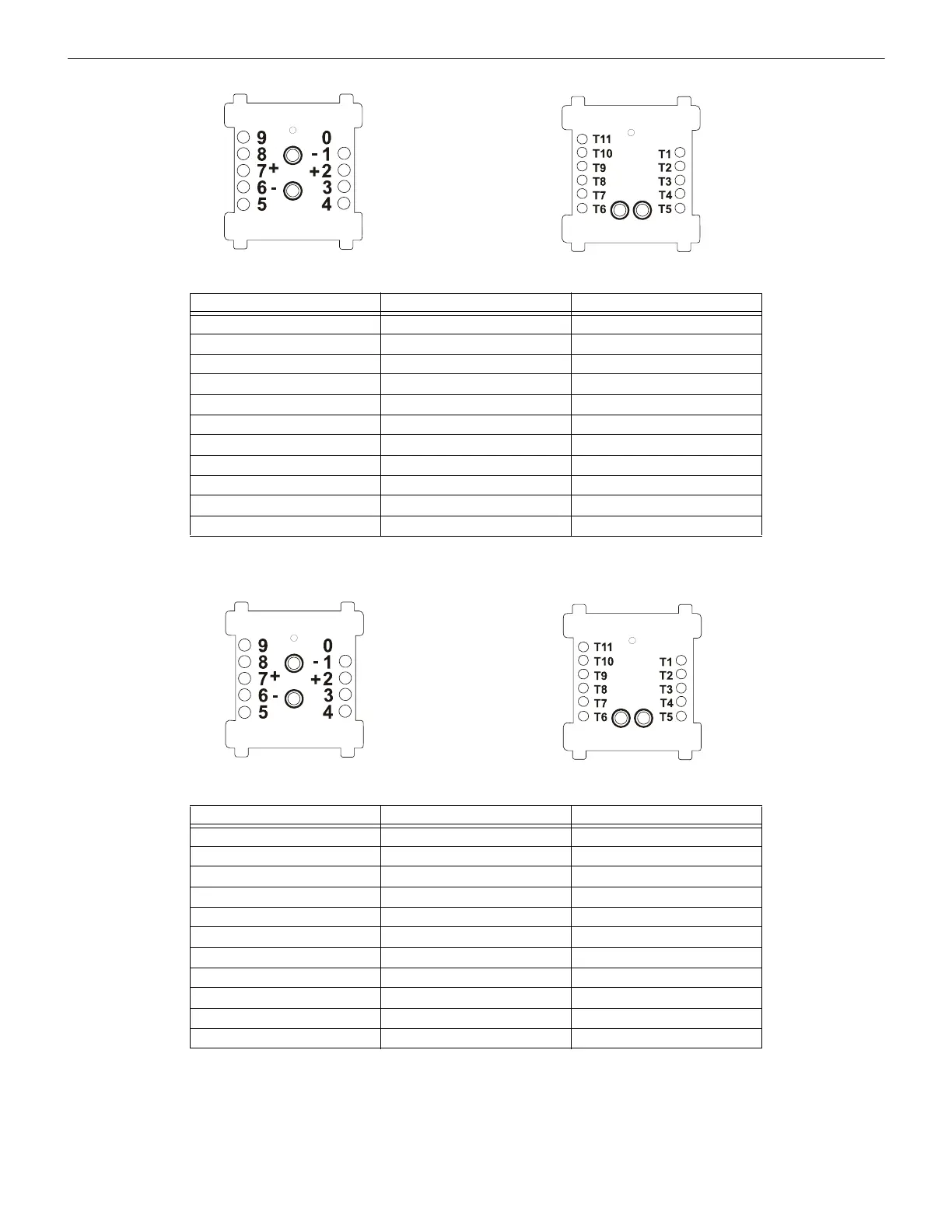

FDM-1 Terminal Conversion Charts for V-type and H-type Devices
C.5 FDM-1
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3 Riser - 11
4 Riser + 10
5Unused5
7 Class A/B Supervision - 6
6 Class A/B Supervision + 7
9 Class A Supervision + 8
8 Class A Supervision - 9
N/A Unused 3
N/A Unused 4
Table C.4 FTM-1 Terminal Conversions
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3Unused3
4Unused4
5Unused5
6 Class A/B Supervision - 6
7 Class A/B Supervision + 7
8 Class A Supervision + 8
9 Class A Supervision - 9
N/A Unused 10
N/A Unused 11
Table C.5 FDM-1 Terminal Conversions
SLC -
SLC +
Riser -
Riser +
Class A Supervision+
Class A Supervision -
Class A/B Supervision -
Class A/B Supervision +
Riser -
Riser +
Class A Supervision -
Class A Supervision+
Class A/B Supervision +
Class A/B Supervision -
SLC -
SLC +
Type V
Type H
SLC -
SLC +
Class A Supervision -
Class A Supervision+
Class A/B Supervision +
Class A/B Supervision -
Class A Supervision -
Class A Supervision+
Class A/B Supervision +
Class A/B Supervision -
SLC -
SLC +
Type V
Type H
