Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 33
Section 6: Monitor Modules
6.1 Description
These addressable modules monitor conventional contact-type alarm initiating devices. You can configure module circuits as NFPA
Style B (Class B) or Style D (Class A) Initiating Device Circuits (IDC). There is no limit to the number of contact-type devices installed
on a monitor module IDC.
For more information on the individual module specifications refer to the Installation Instructions that are provided with this device. For
information on transponders, refer to the specific transponder manual.
6.1.1 Addressable Monitor Module
The FMM-1 is an addressable module that monitors either a Style B (Class B) or Style D (Class A) IDC of dry-contact input devices.
This module is capable of participating in degraded mode where supported by the FACP.
6.1.2 Zone Interface Module
The FZM-1 is similar to the FMM-1, except it is used to monitor compatible two-wire, 24 volt, conventional (non-addressable) smoke
detectors on a Style B (Class B) or Style D (Class A) IDC.
SLC–
SLC+
IDC Return –
IDC Return +
IDC Out +
IDC Out –
Rotary
Switches
Areas used to record the device
address and SLC number.
FMMtpH.wmf

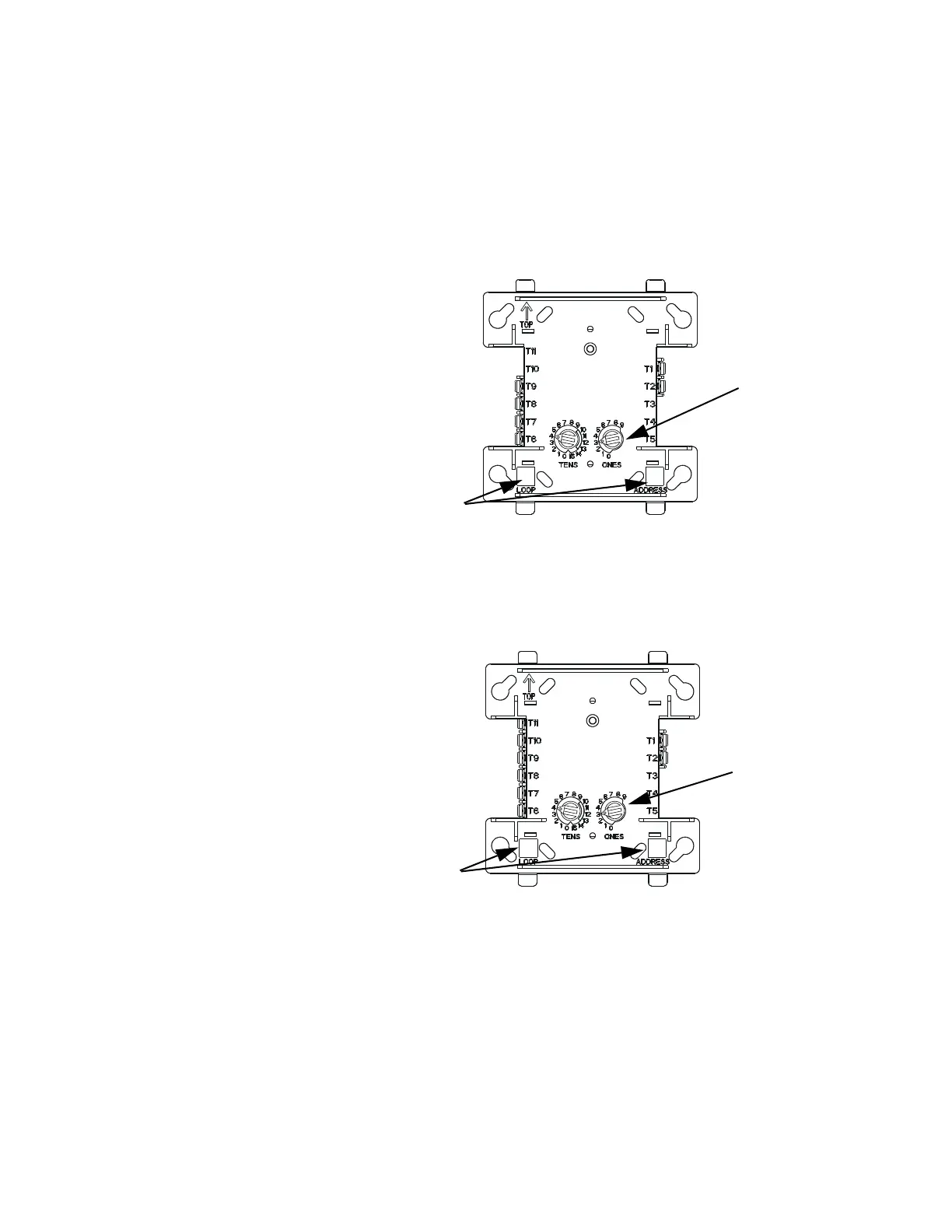

Figure 6.1 FMM-1 Monitor Module
FZMtpH.wmf
Rotary
Switches
SLC–
SLC+
24 VDC –
24 VDC +
IDC Return –
IDC Return +
IDC Out +
IDC Out –
Areas used to record the device
address and SLC number.
Figure 6.2 FZM-1 Zone Interface Module
