10.7 Wiring the FWSG
10.7.1 SLC Connections
The Wireless Gateway acts as a bridge between a group of wireless fire devices and a FlashScan SLC loop on NFS-320, NFS-320SYS,
NFS2-640, and NFS2-3030. It is powered by the SLC loop or by an external 24 VDC UL-listed power supply. Available wireless devices
include a photo detector, a photo/heat detector, a fixed-temperature heat detector, a rate-of-rise heat detector, and a monitor module. For
details about wireless devices, system setup, and operation, see the SWIFT™ Smart Wireless Integrated Technology Instruction Manual.
FSA-5000
Intelligent
FAAST XS
FSA-8000
Intelligent
FAAST XM
FSA-20000
Intelligent
FAAST XT
FSA-20000P
Intelligent
FAAST XT PRO
CLIP loop limitations
–Detectors per CLIP loop
–Modules per loop
Not available –Up to 75 total
–Up to 45 total
Not available Not available
Power supply FACP AUX or use a power supply ULC listed for fire protective signaling use with regulated outputs
FlashScan Loop Protocol
–Type ID
–FlashScan Type ID
–Aspiration
–FAASTX
–Aspiration
–FAAST
–Aspiration
–FAASTX
–Aspiration
–FAASTX
CLIP Loop Protocol.
–Type ID Not available –Acclimate Not available Not available
Setting an SLC Address The SLC loop address for this product is set using PipeIQ®; for information on this program, refer to the
FAAST Comprehensive User Guide on http://www.systemsensor.com
. To program the addressable pipes on
the Intelligent FAAST XT PRO, use VeriFire Tools.
Table 10.1 Installation Considerations and Programming Options

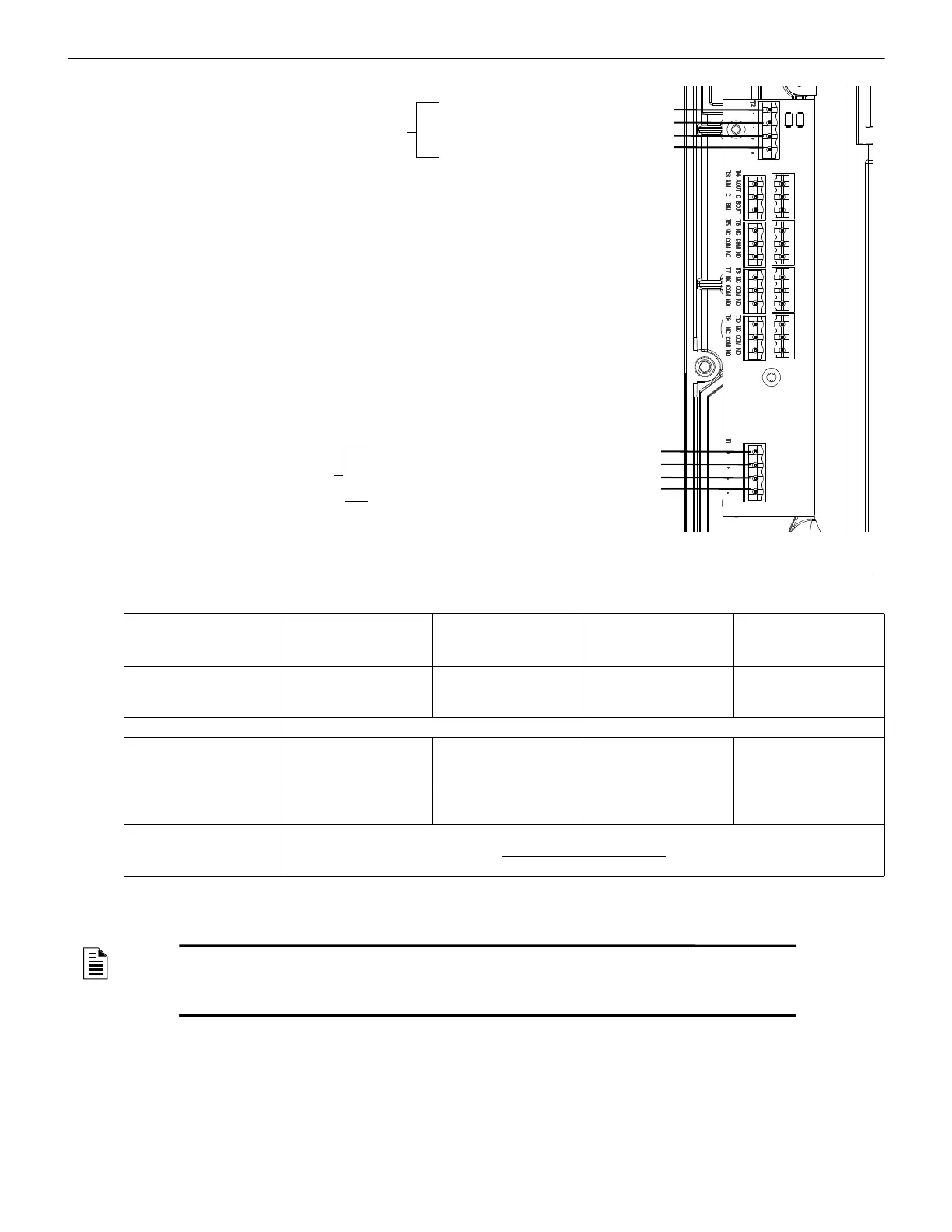

Figure 10.9 FSA-20000/FSA-20000P Connection to the FACP
To Next Device +
From Power Supply or Previous Device +
To Next Device -
24V External
Power
From Power Supply or Previous Device -
To Next SLC Device +
From FACP or Previous Device +
To Next SLC Device -
From FACP or Previous Device -
SLC
Connection
NOTE: The FWSG as part of the wireless network has been tested for compliance with the Federal
Communications Commission (FCC) requirements of the United States Government. This product has not been
evaluated for use outside the USA. Use of this system outside the USA is subject to local laws and rules to which
this product may not conform. It is the sole responsibility of the user to determine if this product may be legally
used outside the USA.
