52 Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017
Intelligent Detectors, Intelligent Detector Bases, and Wireless Gateway Wiring a Sounder Base
10.5 Wiring a Sounder Base

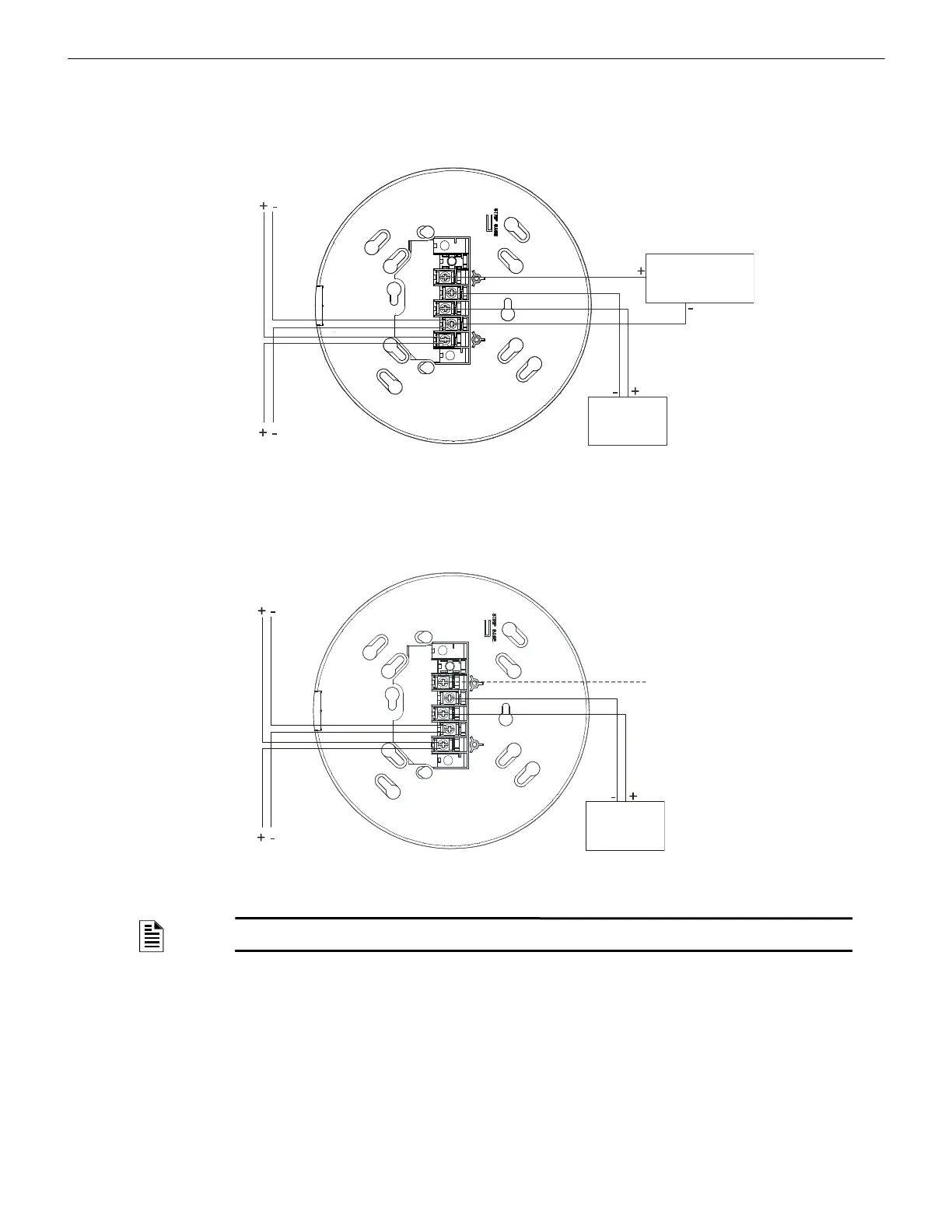

Figure 10.5 shows typical wiring of the B200S and B200S-LF Sounder Bases.
Figure 10.6 shows typical wiring of the B200SR and B200SR-LF Sounder Base.
10.6 Wiring and Programming Aspiration Detectors
The FSA-5000 Intelligent FAAST XS, FSA-8000 Intelligent FAAST XM, FSA-20000 Intelligent FAAST XT, and FSA-20000P Intel-
ligent FAAST XT PRO aspiration smoke detectors may be used to provide early warning fire protection using aspiration sensing tech-
nology. These detectors are listed with UL for use with the NFS-320, NFS-320SYS, NFS2-640, and NFS2-3030.
NOTE: The base wiring is identical for -IV variant. For more detailed wiring on sounder bases, refer to the
device’s installation instructions.
Figure 10.5 Wiring of the B200S/B200S-LF Sounder Base
s
l
c
-
b
2
0
0
s
r
w
i
r
e
2
0
1
4
.
w
m
f
To next device
on SLC
SLC
Note: The “grid” pattern on the
B200S/B200S-LF has been
removed for illustration
purposes only.
Optional Remote
LED Annunciator
RA100Z/400Z
UL-Listed 24V
Power Supply
with System
Figure 10.6 Wiring of the B200SR/B200SR Sounder Base
s
l
c
-
B
2
0
0
S
R
w
i
r
e
2
0
1
4
.
w
m
f
To next device
on SLC
SLC
Note: The “grid” pattern on the
B200SR/B200SR-LF has been
removed for illustration
purposes only.
Optional Sounder
Interconnect
UL-Listed 24V
Power Supply
with System
To Next Page
