Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 71
Wiring an Isolator Base Intelligent Detector Base Layouts for Legacy Devices
D.2 Wiring an Isolator Base

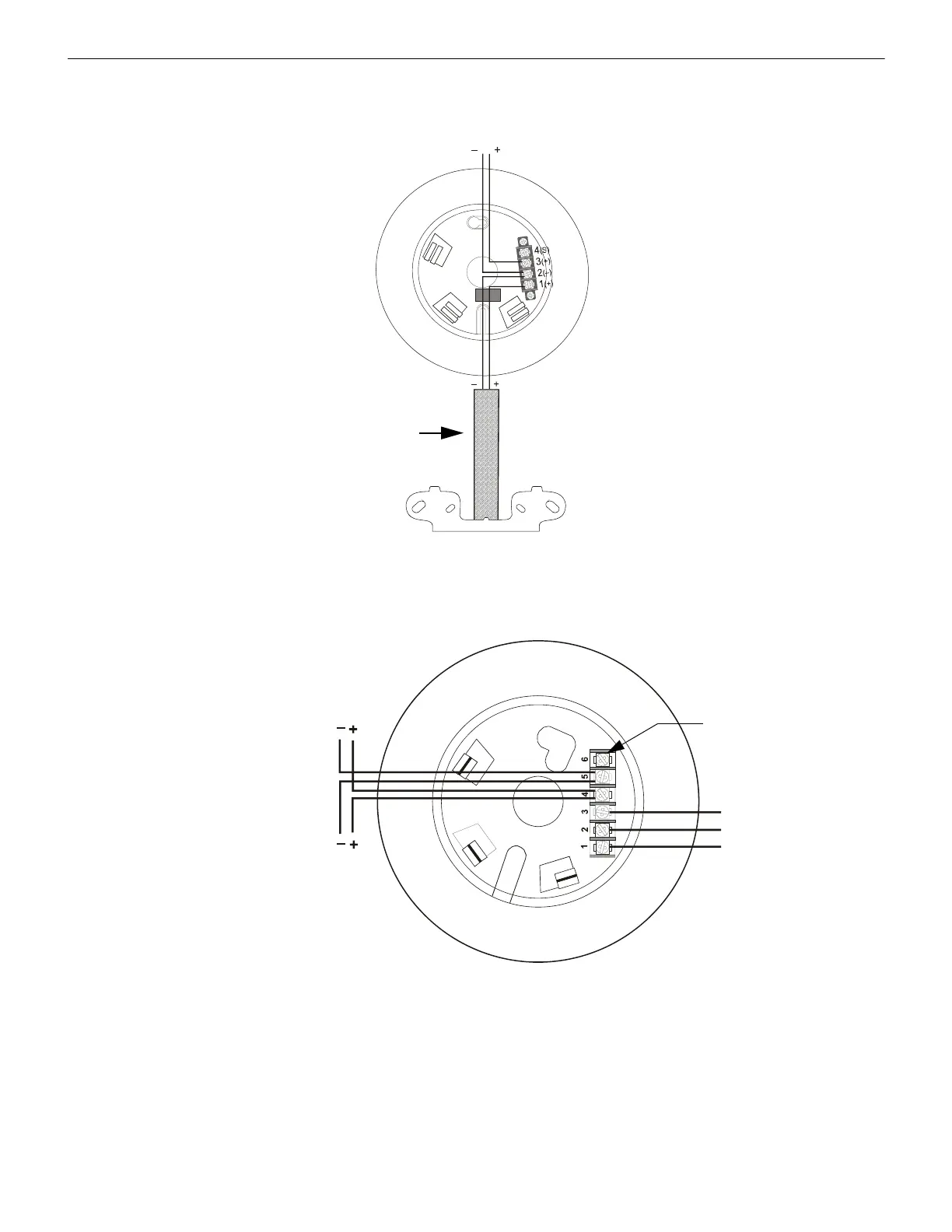

Figure D.2 shows typical wiring of a B224BI Isolator Base.
D.3 Wiring a Relay Base
Figure D.3 shows typical wiring of the B224RB plug-in relay detector base connected to an SLC.
SLC In
SLC Out
SLC-
Conduit
ISO-X
Isolator Module
Figure D.2 Wiring an Isolator Base
SLC
b224rb.wmf
To next device
on SLC
For connection of
cable shield
3
R
e
l
a
y
C
o
m
m
o
n
2
N
o
r
m
a
l
l
y
O
p
e
n
1
N
o
r
m
a
l
l
y
C
l
o
s
e
d
Figure D.3 Wiring of the B224RB Plug-in Relay Detector Base
