64 Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017

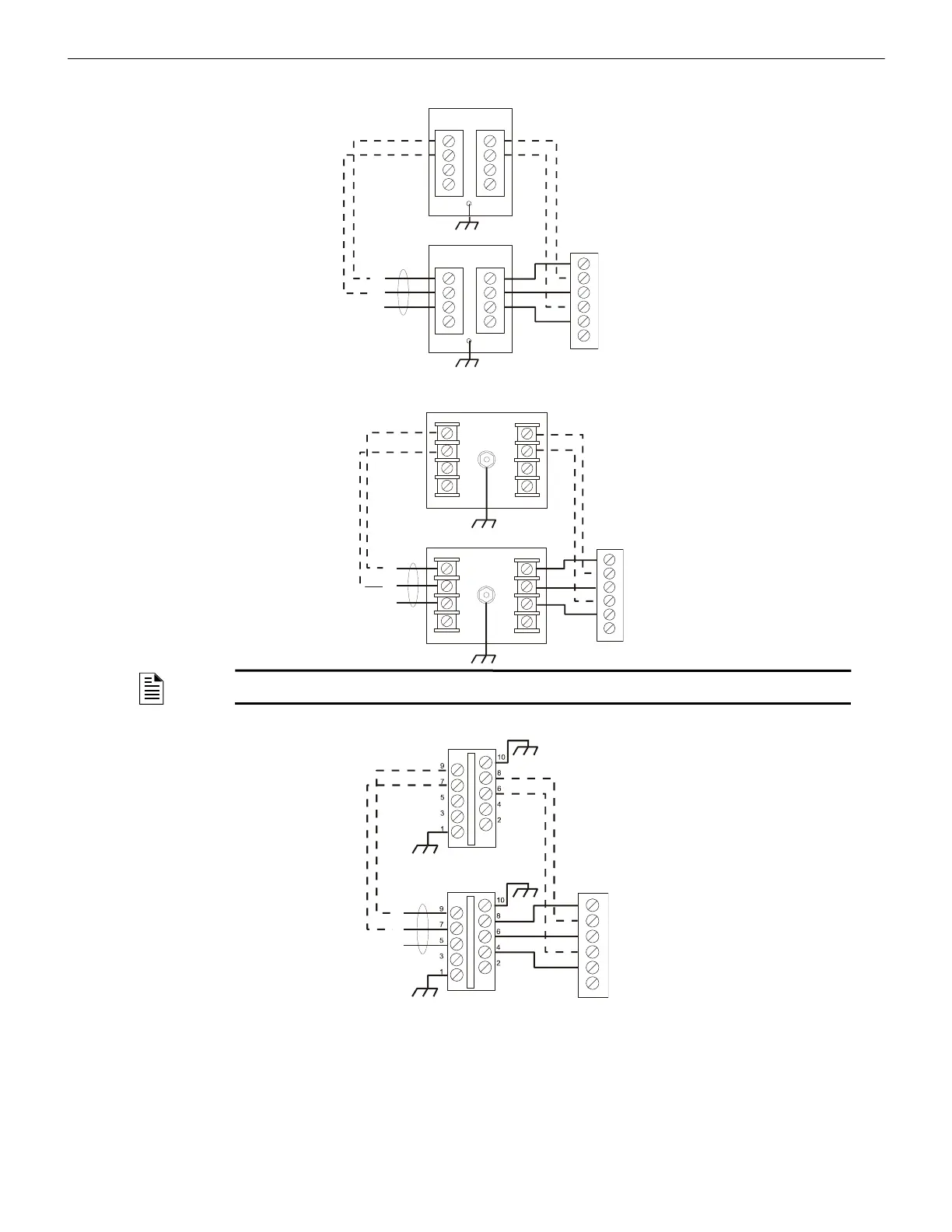

SLC Surge Suppression Installation
DTK-2LVLP-F Connections
PLP-42N Connections
SLCP-30 Connections
B.2.3 AM2020 & AFP1010(LIB-200A or LIB-400)
NOTE: Use 12 AWG (3.31 mm
2
) to 18 AWG (0.82 mm
2
) wire with crimp-on connectors to connect the unit’s
ground terminal to equipment ground. Wire length must be minimized to provide best protection.
+
–
SLC-lvlp2.wmf
SLC Loop
SLC Terminal Block
Optional Four-wire Return Loop
Style 6 (Class A)
2LVLP-F
2LVLP-F
IN OUT
IN OUT
B+
A+
B-
A-
Ref
Earth
–
+
INPUT
OUTPUT
L1 L2 L3 L4
L1 L2 L3 L4
GRND
INPUT
OUTPUT
L1 L2 L3 L4
L1 L2 L3 L4
GRND
SLC-plpn2.wmf
SLC Loop
SLC Terminal Block
Optional Four-wire Return Loop
Style 6 (Class A)
PLP-42N
PLP-42N
B+
A+
B-
A-
Ref
Earth
+
–
SLC-
SLC Terminal Block
SLC Loop
Optional Four-wire Return Loop
Style 6 (Class A)
2LCP-30
IN OUT
B+
A+
B-
A-
Ref
Earth
IN OUT
2LCP-30
