Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 67
Appendix C: Terminal Conversion Charts for V-type and H-type Devices

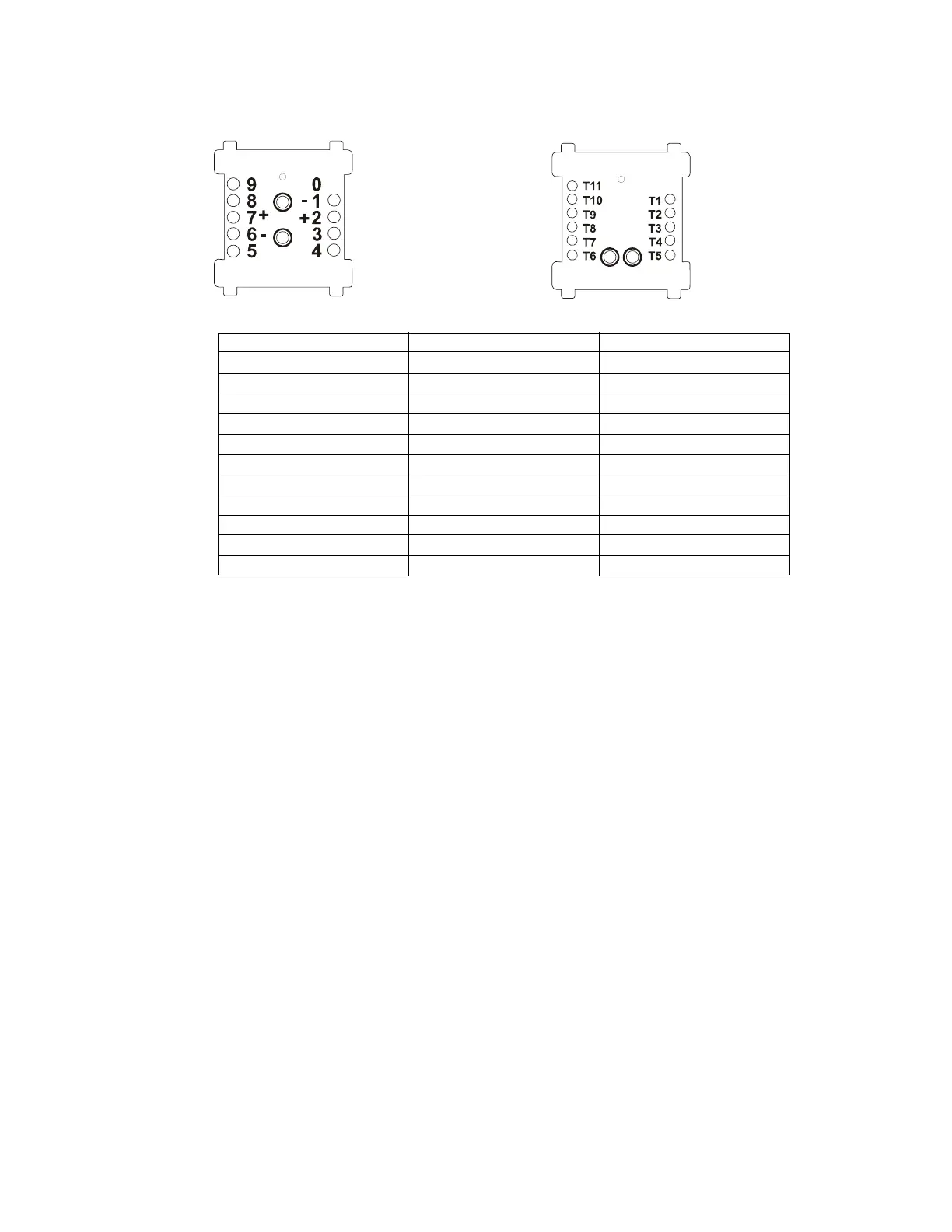

C.1 FRM-1
Type V
Type H
Common 2
Closed 2
Open 2
Common 1
Closed 1
Open 1
SLC -
SLC +
SLC -
SLC +
Common 2
Closed 2
Open 2
Common 1
Closed 1
Open 1
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3Unused3
4 Normally Open (1) 5
5 Normally Closed (1) 6
6 Relay Common (1) 7
7 Normally Open (2) 8
8 Normally Closed (2) 9
9 Relay Common (2) 10
N/A Unused 4
N/A Unused 11
Table C.1 FRM-1 Terminal Conversions
