34 Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017
Monitor Modules Description
6.1.3 Miniature Monitor Module
The FMM-101 is intended to monitor a Style B (Class B) IDC; it is offered in a smaller package for mounting directly in the electrical
box of the device being monitored.
6.1.4 FMM-4-20 4-20mA Monitor Module
The FMM-4-20 is intended for use in intelligent, two-wire systems, allowing Control Panels to interface and monitor two-wire or three-
wire sensors with a 4-20mA signal output.
FMM-101.cdr
Label – Use to record the
device address and SLC
number.
Rotary
Switches
IDC (+) Violet
SLC (+) Red
IDC (-) Yellow
SLC (-) Black

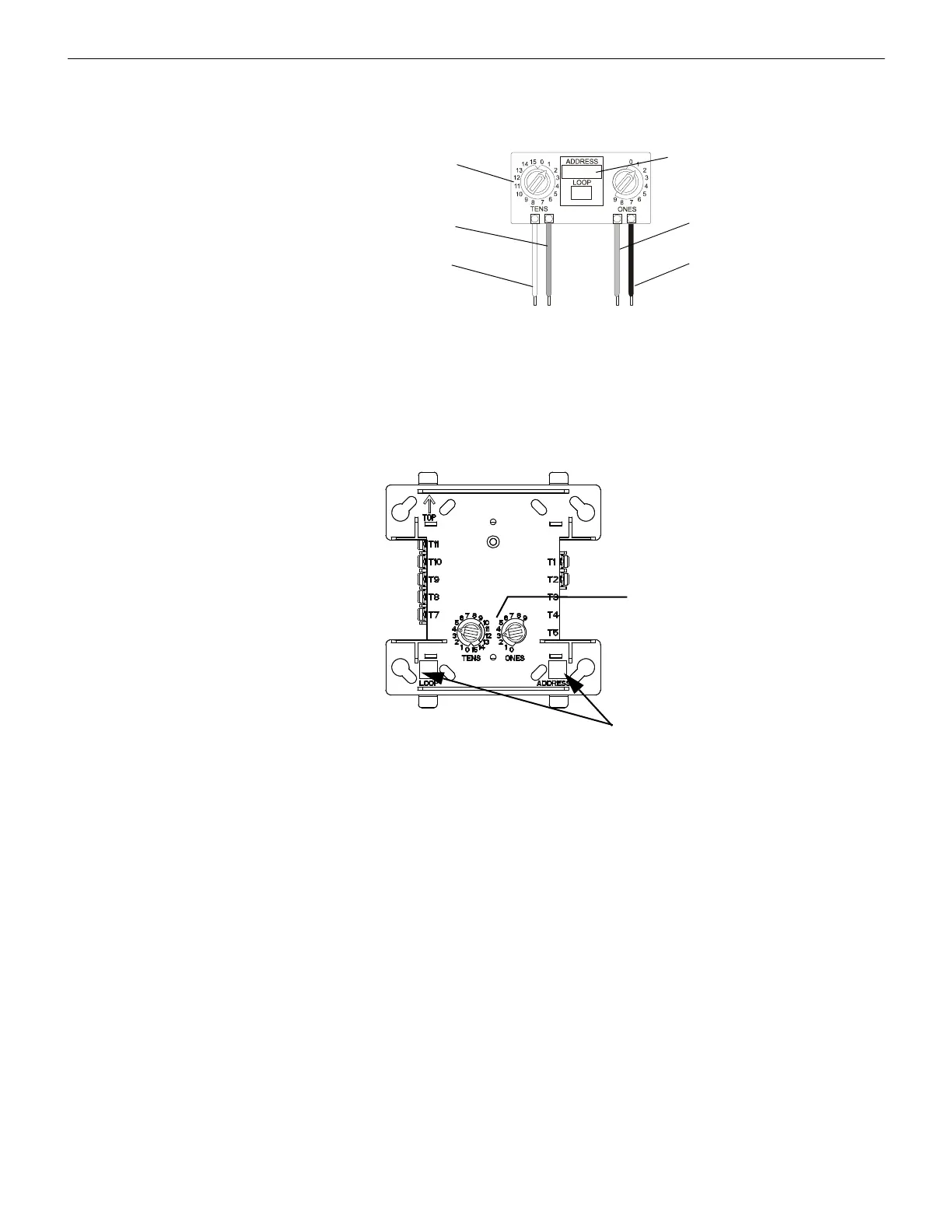

Figure 6.3 FMM-101 Mini Monitor Module
SLC (-)
SLC (+)
24 VDC (-)
24 VDC (+)
(-)
Sense
(+)
To 4-20mA
Sensing Device
{
Rotary Switches
Areas used to record the device
address and SLC number.
T9 is only used in three-wire
sensor applications. For two-
wire applications, T8 is used
for negative (-) wiring.
{
Non-Resettable
Figure 6.4 FMM-4-20 4-20mA Monitor Module
fmm-4-20.wmf
