Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 21
Control Panel Terminal Blocks Wiring Requirements
2.4.6 AFP-300/AFP-400
The AFP-300 supports one SLC loop; the AFP-400 supports two SLC loops. The loops are CLIP mode only. SLC loops connect to TB6
on the AFP-300; SLC loops connect to TB5 and TB6 on the AFP-400.
2.4.7 AM2020/AFP1010 with LIB-200A or LIB-400
AM2020/AFP1010 supports up to ten SLC loops using LIB-200A (one SLC loop per board) and/or LIB-400 (one or two SLC loops per
board). The loops are CLIP mode only. SLC loops connect to TB1 and TB2 on LIB-400, and TB1 on LIB-200A.
2.4.8 System 5000 with AIM-200
System 5000 with AIM-200 supports one SLC loop; the loop is CLIP mode only. The SLC loop connects to P8 on AIM-200.
SLC Loop Connections on AFP-300
main circuit board
SLC Loop Connections on AFP-400 main
circuit board
slc-300.wmf, slc-400.wmf

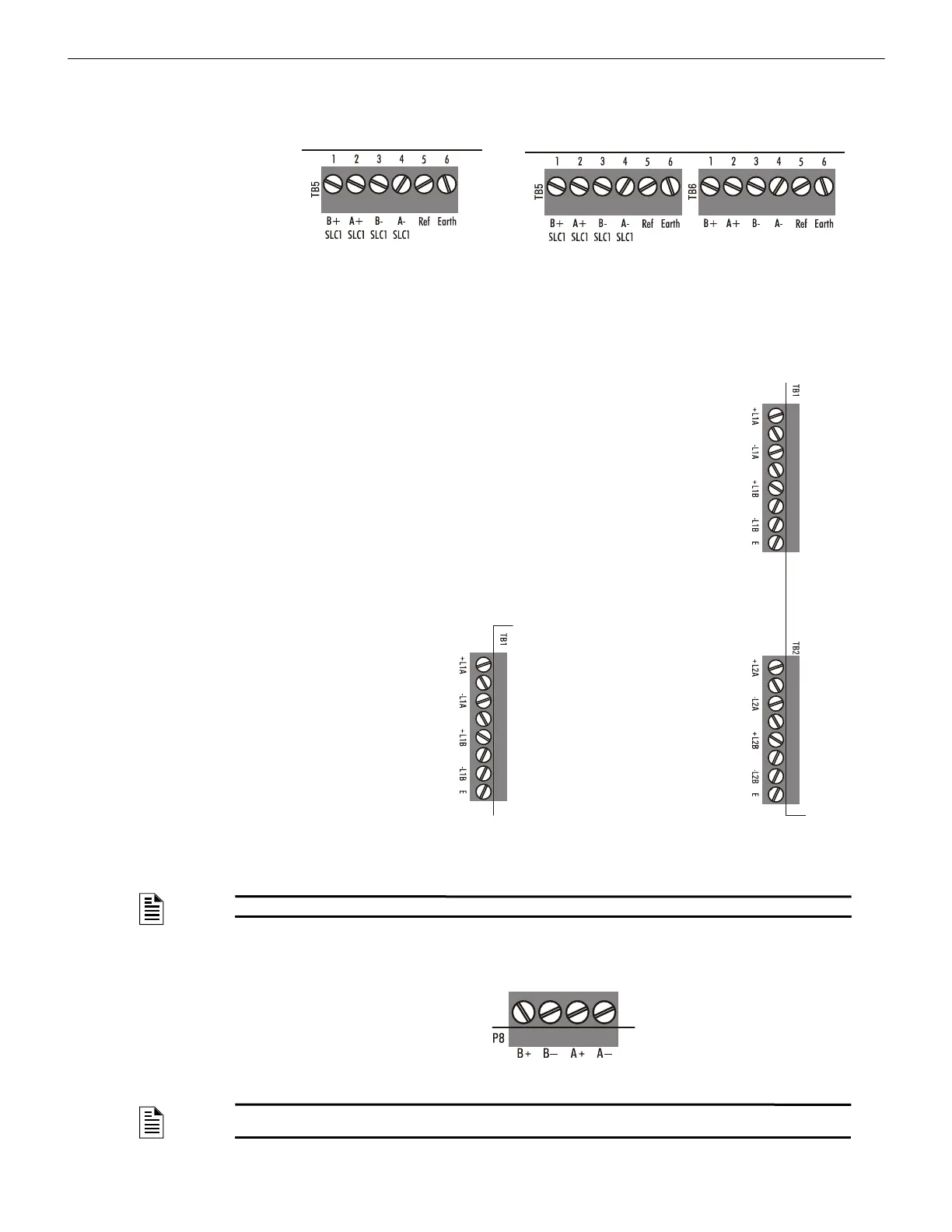

Figure 2.10 SLC Connections for AFP-300/AFP-400
NOTE: LIB-200 has been replaced by LIB-200A.
slc-lib-200a.wmf,slc-lib-400.wmf
Pin 1 SLC Loop Port A+
Pin 3 SLC Loop Port A-
Pin 5 SLC Loop Port B+
Pin 7 SLC Loop Port B-
Pin 8 Earth Ground
Pin 1 SLC Loop Port A+
Pin 3 SLC Loop Port A-
Pin 5 SLC Loop Port B+
Pin 7 SLC Loop Port B-
Pin 8 Earth Ground
Pin 1 SLC Loop Port A+
Pin 3 SLC Loop Port A-
Pin 5 SLC Loop Port B+
Pin 7 SLC Loop Port B-
Pin 8 Earth Ground
LIB-200A LIB-400
Figure 2.11 SLC Connections for LIB-200A & LIB-400
NOTE: The AFC-600 has been discontinued; to service existing installations of this panel, refer to the original
manuals shipped with the panel.
slc-aim-200.wmf
Figure 2.12 SLC Connections for AIM-200
