Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 43

Connecting a Releasing Device to the Addressable Control Module Control Modules

7.5 Connecting a Releasing Device to the Addressable Control Module

The FCM-1-REL module can control 1 A of current. Make sure to keep total system current within the limits of the power supply. Power

for the module must come from the FACP’s main power supply or any UL 864-listed 24 VDC regulated, power-limited power supply for

Fire Protective Signaling. For more information, refer to the Device Compatibility Document.

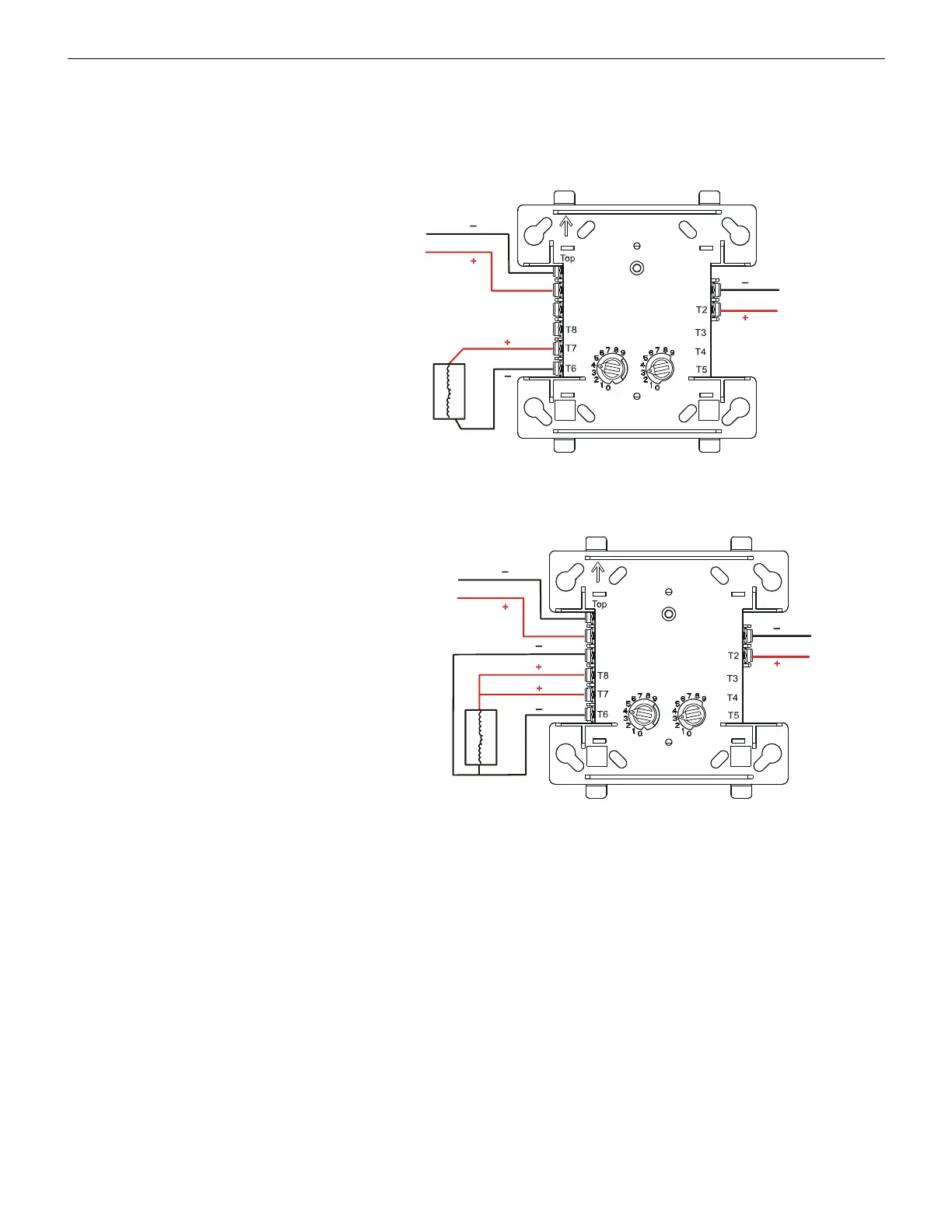

Figure 7.6 shows Class B wiring of the FCM-1-REL.

Figure 7.7 shows Class A wiring of the FCM-1-REL.

Critical Requirements.

When connecting a releasing device to the FCM-1-REL module, note the following:

1. See “Power Considerations” on page 58 for information on monitoring 24 VDC power.

2. Do not T-tap or branch a Style Y or Style Z circuit.

3. Only one (1) 24V solenoid or two (2) 12V solenoids in series can be connected to the FCM-1-REL.

4. Do not loop wiring under the screw terminals. Break the wire run to provide supervision of connections.

5. All applications using the FCM-1-REL are power-limited:

• Program the releasing circuit for Type Code REL CKT ULC or RELEASE CKT.

• Circuits are supervised against opens and shorts.

6. Refer to your FACP’s listing documents for instructions on setting the Soak Timer.

(* For legacy panels, refer to FACP programming manual.)

7. The FCM-1-REL module must be programmed with the correct releasing type code listed in your FACP’s listing documents.

(* For legacy panels, refer to FACP programming manual.)

T11

T10

TENS

ONES

LOOP

ADDRESS

Module polarities are shown in alarm

condition. All wiring shown is

supervised and power-limited.

Compatible UL-listed

24 VDC releasing device.

One (1) device maximum.

Non-resettable 24-VDC power

supply isolated, regulated, power

limited per NFPA 70, listed for fire

protection with battery backup.

When using the

FCM-1-REL for

Class B

applications,

remove jumper J1.

SLC (-)

SLC (+)

Figure 7.6 NFPA Class B Wiring of the FCM-1-REL

FCM-1-REL

T11

T10
