Intelligent Detectors, Intelligent Detector Bases, and Wireless Gateway Wiring a Detector Base
Figure 10.2 shows typical wiring of the B710HD detector base (for use with a HARSH™ detector) connected to an SLC. An optional
RA100Z Remote LED Annunciator is shown connected to the base.
NOTE: Use a spade lug to wire the Remote LED Annunciator (–) to Terminal 2 (–).
RA100Z
Remote LED
Annunciator
(Optional)
SLC
To next device
on SLC
Power to next
device
B
7
1
0
H
D
.
w
m
f
For connection of
cable shield
To compatible
UL Listed
Power Supply

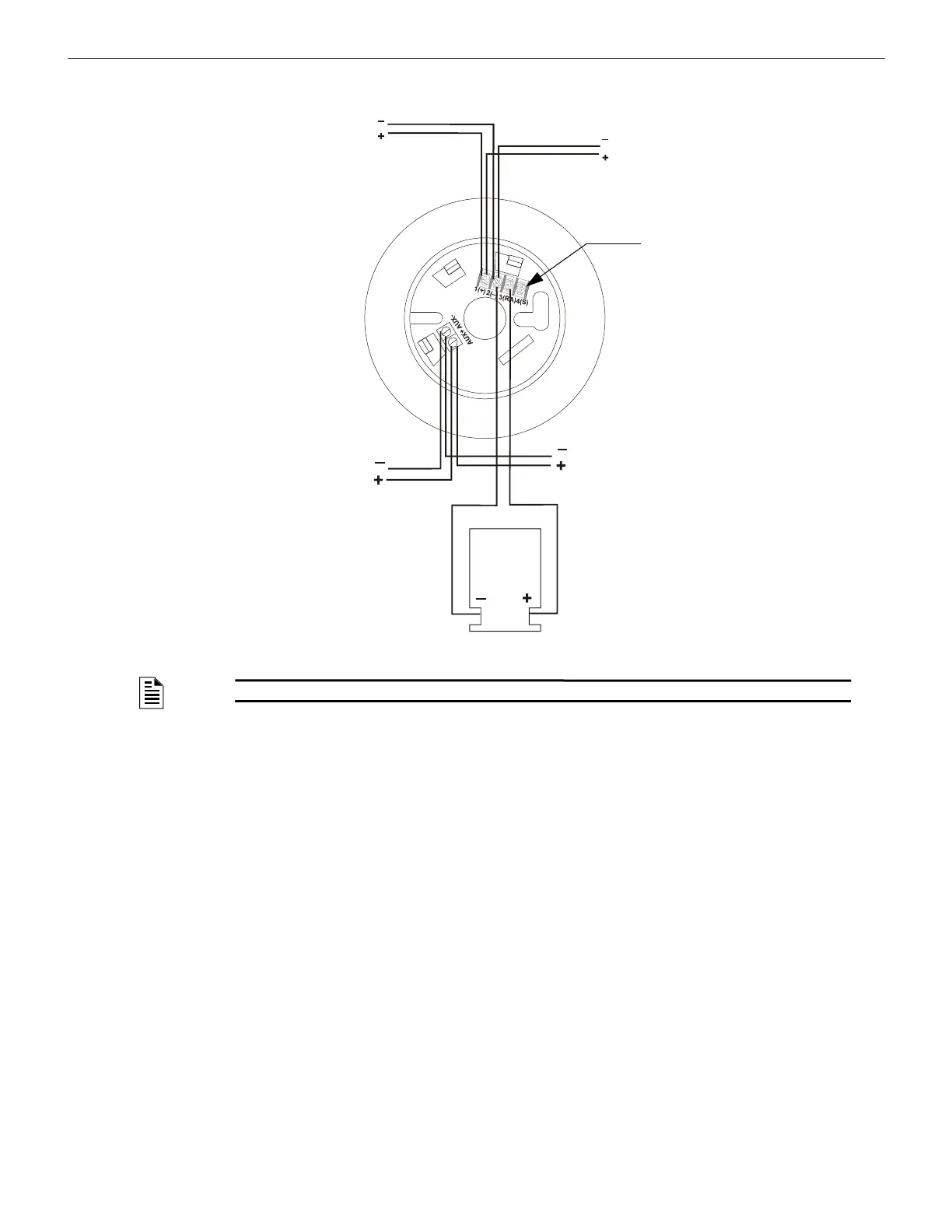

Figure 10.2 Wiring of the B710HD Detector Base
