Honeywell Notifier AFP-100 Wiring Manual

Notifier SLC Wiring Manual — P/N 51253:U5 12/20/2017 47
NFPA Style B IDC Wiring Using Dual Monitor Modules Multiple Input/Output Modules
Refer to the Device Compatibility Document for compatible smoke detectors.
S
L
C
-
i
d
c
B
3
f
d
m
1
.
w
m
f
Heat
Detector
Manual
Pull
Station
SLC
FDM-1
Base +1 Address
(IDC Circuit H)
Base Address
(IDC Circuit L)
47K
ELR
47K
ELR

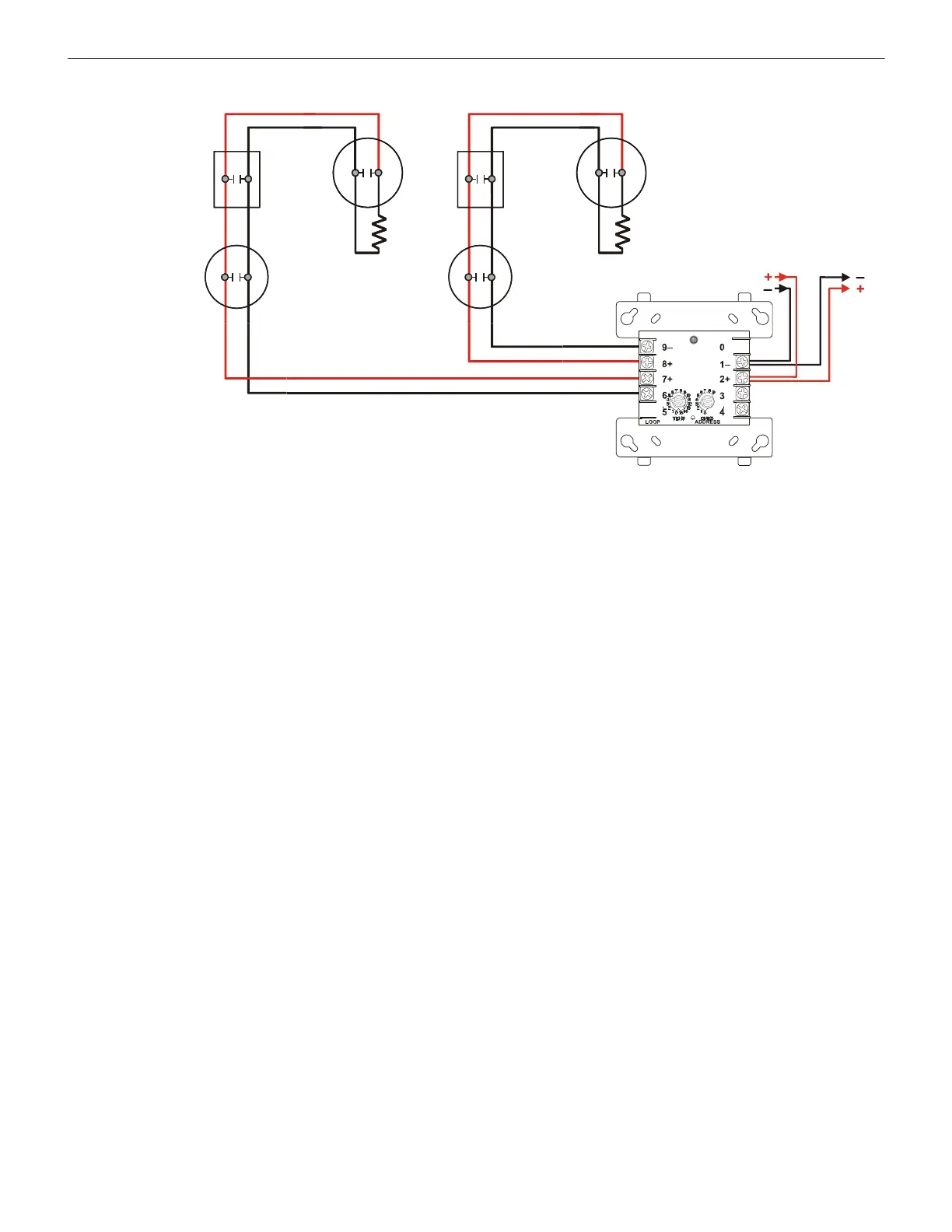

Figure 9.3 Typical Style B IDC Wiring with FDM-1
