80 NFS2-640/E Programming Manual — P/N 52742:L2 7/17/14
Releasing Applications How to Program a Releasing Zone

Example
A programming example of a control module programmed as a Release End Bell for Releasing
Zone R5.

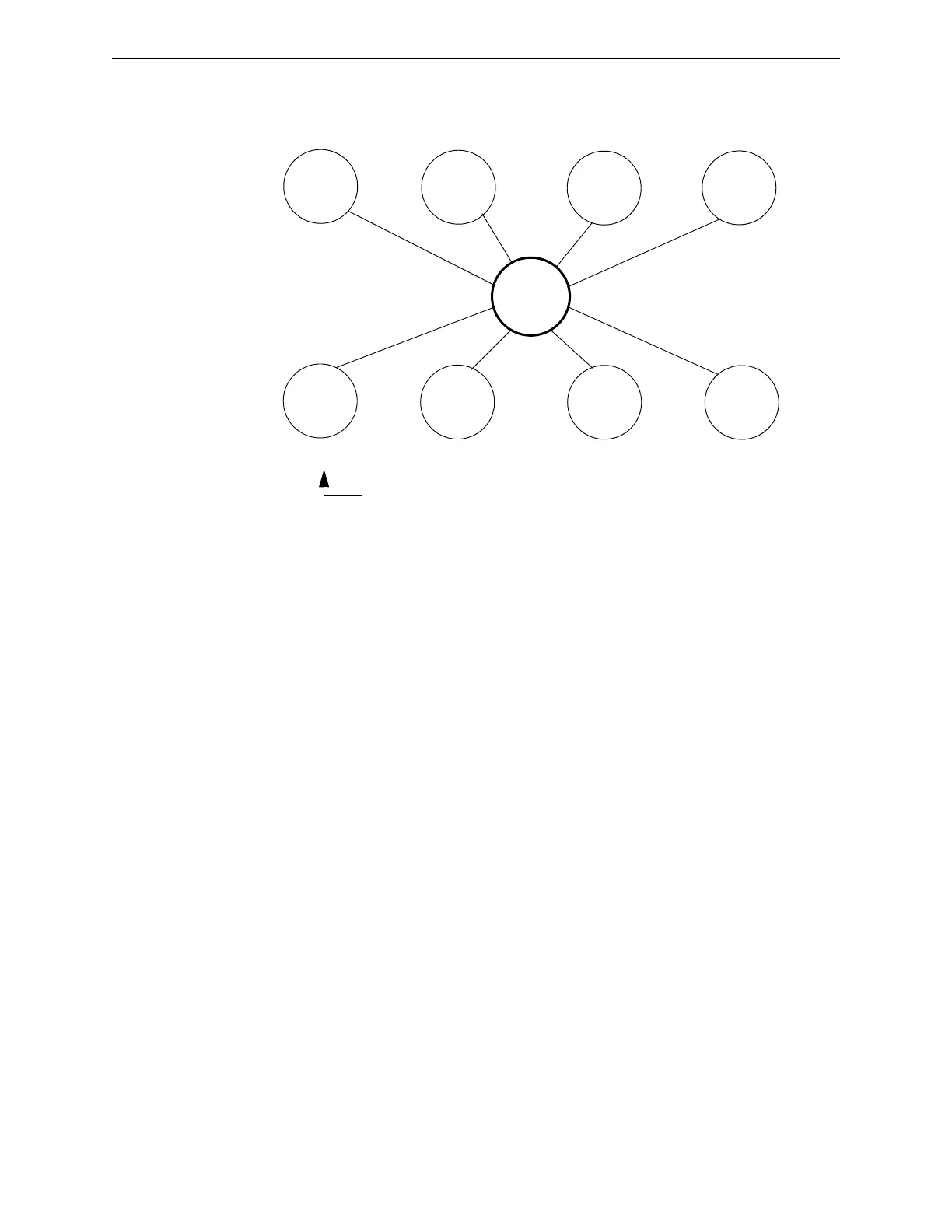

Figure A.14 Control Module Configured as a Release End Bell Circuit
Type Code
REL END BELL
Type Code
REL CIRCUIT
Type Code
REL CIRCUIT
Type Code
REL AUDIBLE
For example, a control module programmed with the REL END
BELL Type Code activates when all releasing functions, such
as the releasing functions programmed for R05 shut off.
Control
Module
B02
B01
Control
Module
R05
Monitor
Module
Detector
Detector
Detector
