NFS2-640/E Programming Manual — P/N 52742:L2 7/17/14 47
The Network Program Programming

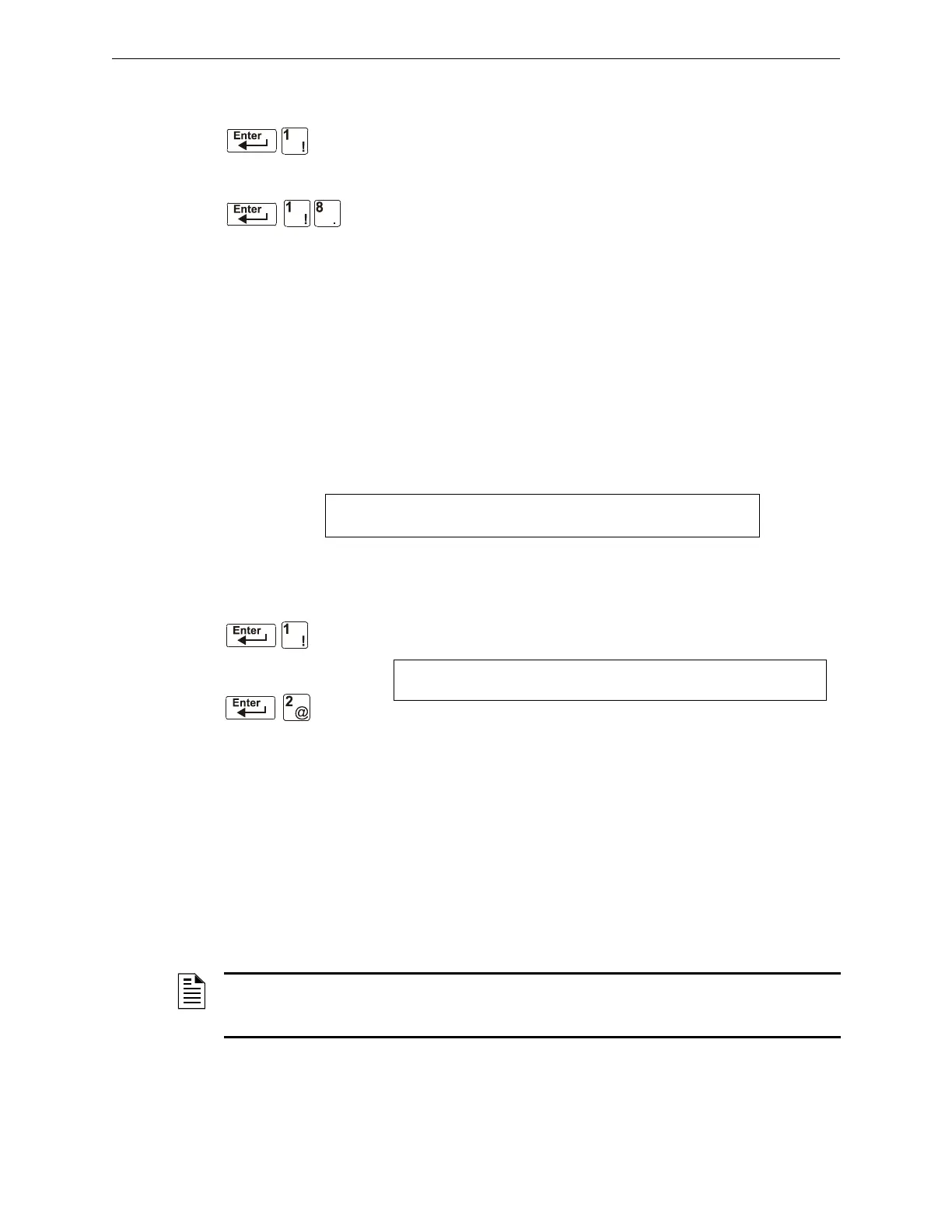

2.3.9 How to Check the Program for Errors (8=CHECK PRG)
When finished programming, you can use the Check option to search the
program entries for possible errors. From the “Basic Program” screen, press
the 8 key. The Check option searches the program for the following
conditions that can cause errors:
• Output points mapped to a zone without a mapped input
• A zone with mapped input points without mapped output points (including Z00 outputs)
• Releasing zone inputs (R0-R9) with no
RELEASE CKT outputs mapped to them; or RELEASE
CKT outputs with no R0-R9 inputs mapped to them
• RO-R9 inputs not mapped to
MAN. RELEASE.
For more information on Releasing Zones, refer to “Releasing Applications” on page 60.
If the Check option detects multiple devices that fail the check, press the
PREVIOUS or NEXT key to
step through the devices. If the Check option displays errors, return to Point Programming
(“Modify or Delete a Point (2=point)” on page 19) and correct the errors. The figure below shows a
sample display of program screen that appears after a successful program check:
2.4 The Network Program
From the “Program Change Selection” screen, press the 2 key to display the
“Network” screen, which displays as follows:
THRESHOLD CH.A: - Enter H or L, for high or low threshold setting for channel A on the NCM
module.
THRESHOLD CH.B: - Enter H or L, for high or low threshold setting for channel B on the NCM
module.
NODE: - Enter the panel’s network node number. The valid network node number range is 1-103.
The number will be entered after the decimal point; the spaces before the decimal point are for
future use.
STYLE7: - Enter N for network style determination (either Style 4 or Style 7) through
autoprogramming. Enter Y to force a Style 7 designation for network wiring.
Program Change
Password
PROGRAM CHECK OK.
RE-TEST PANEL NOW 08:34A 041508 Tue
Program Change
Password
THRESHOLD CH.A:H, THRESHOLD CH.B:H,
NODE: .000, STYLE7:N, <ENTER>
NOTE: If network Style 7 wiring is determined by autoprogramming, a change in the wiring (for
example, a break in the network wiring) would cause the system to reassess the network wiring
style as 4. If network Style 7 wiring is forced, a break in the wiring will create a trouble message.
